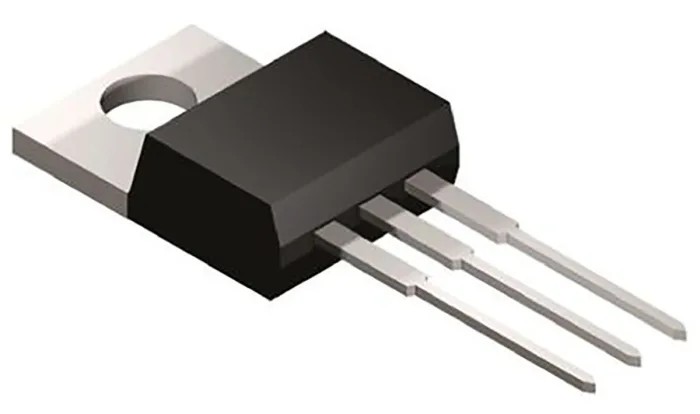

STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTA12-600SWRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | BTA12-600SWRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-2586Brand: STMicroelectronicsManufacturers Part No.: BTA12-600SWRGDistrelec Article No.: 304-43-847 |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 12A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 126A |
| Maximum Gate Trigger Current Igt | 10mA |
| Maximum Holding Current Ih | 15mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5mA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current of 12 A for robust switching capabilities.
- Package type is TO-220 suitable for through-hole mounting.
- Maximum gate trigger current is 10 mA to reliably control the TRIAC.
- Operates within a temperature range of -40°C to 125°C for versatile environment use.
- Surge current rating of 126 A to withstand transient overload conditions.
- Maximum holding current of 15 mA for steady gate regulation.
- Peak on-state voltage rated at 1.55 V ensuring efficient conduction.
- Single configuration with 3 pins facilitating easy integration.
Product Description
STMicroelectronics BTA12-600SWRG is a high-performance through-hole TRIAC designed for switching AC loads with a repetitive peak reverse voltage of 800 V and a gate trigger voltage of 1.3 V. It features a TO-220 package with a 3-pin configuration that allows easy integration into various electronic circuits.
The device supports a rated average on-state current (Irm) of 12 A and a surge current rating of 126 A, making it suitable for industrial, HVAC, and power control applications where reliable switching is critical. With a maximum operating temperature of 125°C and minimum operating temperature of -40°C, it operates efficiently in harsh environments.
The maximum gate trigger current is 10 mA, and the maximum holding current is 15 mA, providing stable and precise triggering characteristics. The peak on-state voltage of 1.55 V ensures low conduction losses, enhancing overall system efficiency.
This TRIAC is compliant with standard semiconductor manufacturing processes but does not carry specific approvals or automotive standards. It is ideal for use in lighting control, motor speed regulation, and heating element control within industrial and commercial settings.
Rated average on-state current of 12 A for robust switching capabilities. Package type is TO-220 suitable for through-hole mounting. Maximum gate trigger current is 10 mA to reliably control the TRIAC. Wide temperature range supports diverse application environments.
Surge current rating of 126 A to handle transient load conditions. Compact dimensions facilitate effective PCB layout. Single configuration with 3-pin design for easy connection. Low peak on-state voltage minimizes power loss.
Reliable off-state and holding current characteristics. It is sourced from India and designed to meet demanding industrial requirements. Explore the Electronics & Electricals category at EnvMart for more high-quality Discrete Semiconductors and TRIAC components from trusted brands like STMicroelectronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BTA12-600SWRG has a rated average on-state current of 12 A, suitable for robust switching capabilities.
This TRIAC can handle a repetitive peak reverse voltage of 800 V, making it suitable for various applications.
The surge current rating of this model is 126 A, allowing it to withstand transient overload conditions.
The maximum gate trigger current for the BTA12-600SWRG is 10 mA, ensuring reliable control of the TRIAC.
It operates within a temperature range of -40°C to 125°C, making it versatile for various environments.
The peak on-state voltage is rated at 1.55 V, which helps in ensuring efficient conduction.
This TRIAC comes in a TO-220 package type, which is suitable for through-hole mounting.
The BTA12-600SWRG features a 3-pin configuration, facilitating easy integration into electronic circuits.
The maximum holding current is 15 mA, providing stable gate regulation.
It is suitable for industrial, HVAC, and power control applications, including lighting control and motor speed regulation.
The dimensions of the BTA12-600SWRG are 15.9 mm in height and 10.4 mm in length.
This TRIAC is sourced from India, designed to meet demanding industrial requirements.
