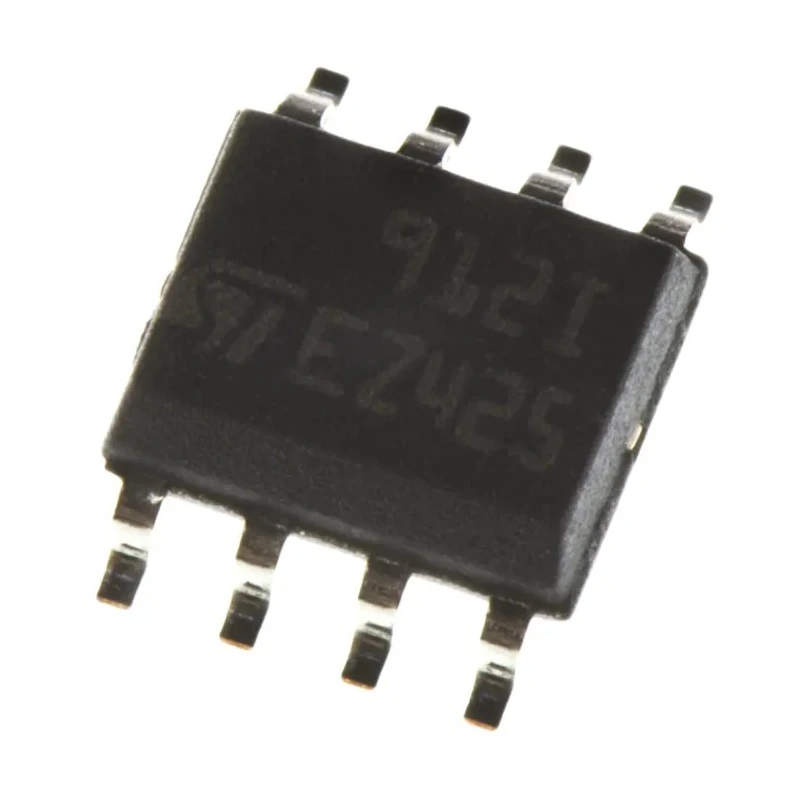

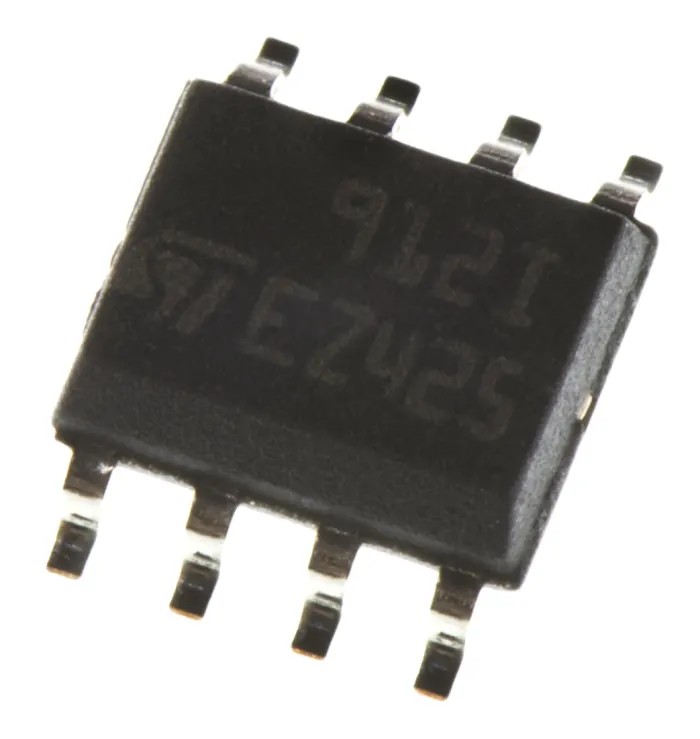

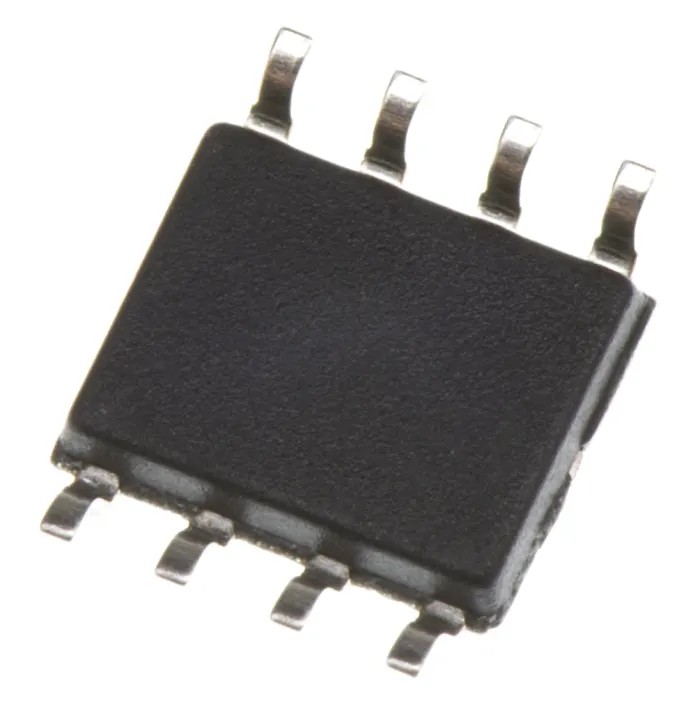

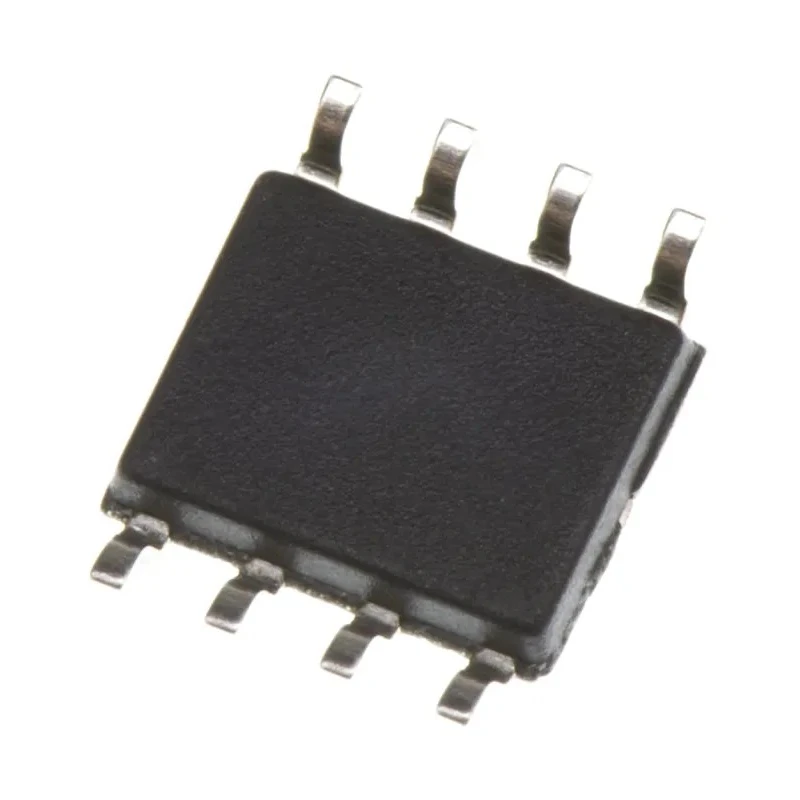

STMicroelectronics Operational Amplifier 1 MHz 8-Pin 16V SOIC TS912IDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | TS912IDT |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | TS912 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-1133Brand: STMicroelectronicsManufacturers Part No.: TS912IDTDistrelec Article No.: 304-43-904 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 300 pA |
| Vos - Input Offset Voltage | 12 mV |
| Slew Rate | 0.8V/μs |
| Low input offset voltage | 5 mV max. (A grade) |
| Input Offset Current | 200 pA |
| Low input bias current | 1 pA typical |
Key Features
- Designed for surface mount with SOIC package type.
- Dual-channel operational amplifier with 8 pins.
- Gain bandwidth product of 1 MHz ensuring stable amplification.
- Operates with supply voltage ranging from 3 V to 16 V.
- Low input bias current of 300 pA typical for precise signal processing.
- Input offset voltage is 12 mV ensuring accuracy in amplification.
- Slew rate of 0.8 V/μs allowing reasonable speed in response.
- Wide operating temperature range from -40°C to 125°C for varied environmental conditions.
Product Description
STMicroelectronics TS912IDT is a high-performance operational amplifier featuring a gain bandwidth product of 1 MHz, housed in a compact 8-pin SOIC package. It operates efficiently within a supply voltage range of 3 V to 16 V, making it suitable for a variety of industrial and commercial electronic applications. The device supports dual channel operation with low input bias currents, providing accurate signal amplification with minimal distortion.
The amplifier's slew rate of 0.8 V/μs and input offset voltage of 12 mV ensure responsive and precise signal conditioning. Designed for operation in harsh environmental conditions, it supports a temperature range from -40°C to 125°C, meeting automotive standard AEC-Q100 for reliability in automotive electronics.
The TS912 series, including TS912IDT, TS912A, TS914, and TS914A, is recognized for low power consumption and CMOS input technology. Rail-to-rail input and output voltage ranges facilitate optimal performance in low voltage applications.
This operational amplifier is ideal for use in industrial control systems, automotive electronics, data acquisition systems, instrumentation, and other applications requiring stable, low-noise signal amplification.
Designed for surface mounting with 8-pin SOIC package. Dual-channel operation for versatile signal processing. Gain bandwidth product of 1 MHz supports wide frequency range. Low input bias current of 300 pA minimizes error.
Input offset voltage maintained at 12 mV for precision amplification. Wide operating temperature range ensures reliability in harsh environments. Compliance with RoHS environmental standards. Output current capability of 40 mA addresses various load requirements.
Automotive grade AEC-Q100 compliant for robust automotive applications.
Set yourself up for precision and reliability with the TS912IDT from STMicroelectronics. Explore more Operational Amplifiers in our extensive Electronics & Electricals category at EnvMart to find the perfect fit for your engineering projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TS912IDT operational amplifier is 1 MHz, ensuring stable amplification across a wide frequency range.
It operates efficiently within a supply voltage range of 3 V to 16 V, making it versatile for various applications.
The input bias current is typically 300 pA, which helps in providing precise signal processing with minimal distortion.
The maximum operating temperature for the TS912IDT is 125°C, allowing it to function in harsh environmental conditions.
This model supports dual-channel operation, allowing for versatile signal processing.
The slew rate of this operational amplifier is 0.8 V/μs, which provides reasonable speed in response to changes in input signals.
The input offset voltage is maintained at 12 mV, ensuring accuracy in amplification.
The dimensions of this model are 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height.
It is housed in an 8-pin SOIC package, designed for surface mounting.
This operational amplifier is compliant with the automotive standard AEC-Q100, ensuring reliability in automotive applications.
The output current capability of this model is 40 mA, addressing various load requirements in applications.
Yes, it is compliant with RoHS environmental standards, ensuring it meets regulations for hazardous substances.
