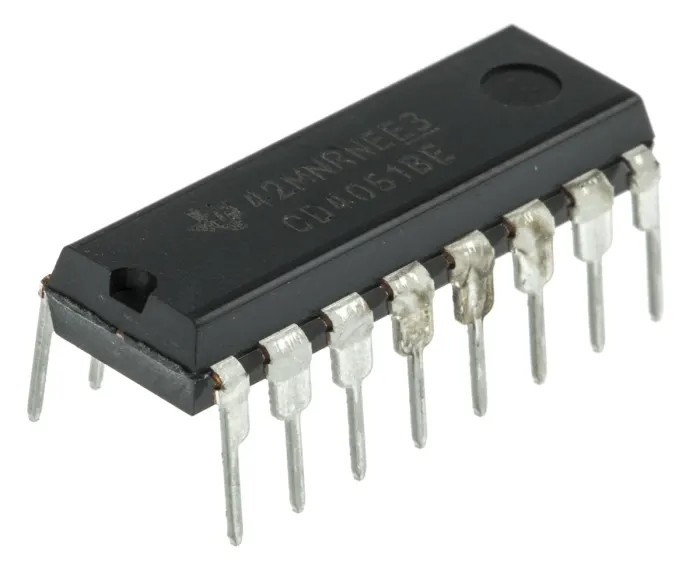

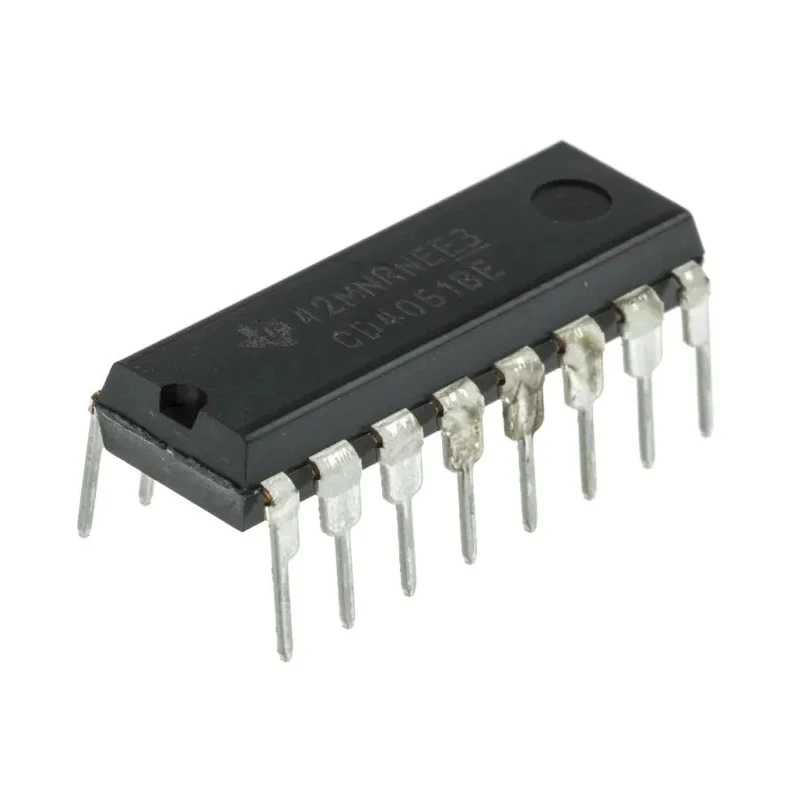

Texas Instruments CMOS Multiplexer/Demultiplexer IC, Single 8:1, 16-Pin PDIP CD4051BE

Texas Instruments CD4051BE Multiplexer/Demultiplexer IC, model CD4051BE, is a high-performance CMOS device belonging to the well-established 4000 Series CMOS Logic Family. It is a single 8:1 multiplexer/demultiplexer packaged in a 16-pin PDIP format designed for through-hole mounting.

This multiplexer supports a wide operating voltage range from -0.5V to 20V, which allows its implementation in various power supply environments while maintaining reliable logic level switching. The maximum on-state resistance is rated at 550 ohms, ensuring effective signal switching capability while maintaining low signal loss.

Operating temperature range of -55°C to 125°C makes the CD4051BE suited for demanding industrial environments and laboratory instruments where temperature variations can be significant. It features CMOS logic family technology that provides low power consumption and impressive noise immunity crucial for precise electronic configurations.

The device dimensions are compact with a length of 19.3mm, width of 6.35mm, and height of 4.57mm, fitting well within standard PCB footprints. The PDIP package type facilitates straightforward through-hole mounting, which is ideal for prototyping and production-level circuit boards.

Commonly employed in electronic component systems, power connectors, and logic IC applications, this multiplexer excels in routing signals across multiple channels in both industrial and electronic configurations. The single 8:1 configuration simplifies multiplexing tasks for data, audio, or control signals.

Its robust design extends its use cases to industrial machines, laboratory instruments, commercial electronic equipment, and manufacturing systems where efficient signal multiplexing or demultiplexing is critical. The device does not have any specific automotive standards but is widely accepted for general-purpose use in electronic design.

This IC is designed for electronic applications requiring 8-channel single multiplexing and demultiplexing in CMOS technology. The 16-pin PDIP format ensures compatibility with standard PCB layouts and easy handling during assembly.

Wide supply voltage operating range ensures adaptability for different power requirements. The logic and output configuration support robust CMOS logic interfacing and signal integrity. Operating temperature range enables use in harsh industrial and laboratory environments.

Compact physical dimensions suit various electronic assemblies including test setups and embedded controllers. Explore our extensive range of semiconductor and multiplexer/demultiplexer ICs at EnvMart for advanced electronic design and industrial control solutions.
