| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.6mm |
| Length | 4.1mm |
| Model | BZX85C5V1-TAP |
| Mount Type | Through Hole |
| Series | BZX85 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -55°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 708-7938PBrand: VishayManufacturers Part No.: BZX85C5V1-TAP |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1.3W |
| Diode Configuration | Single |
| Test Current It | 45mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 5.1V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 10Ω |

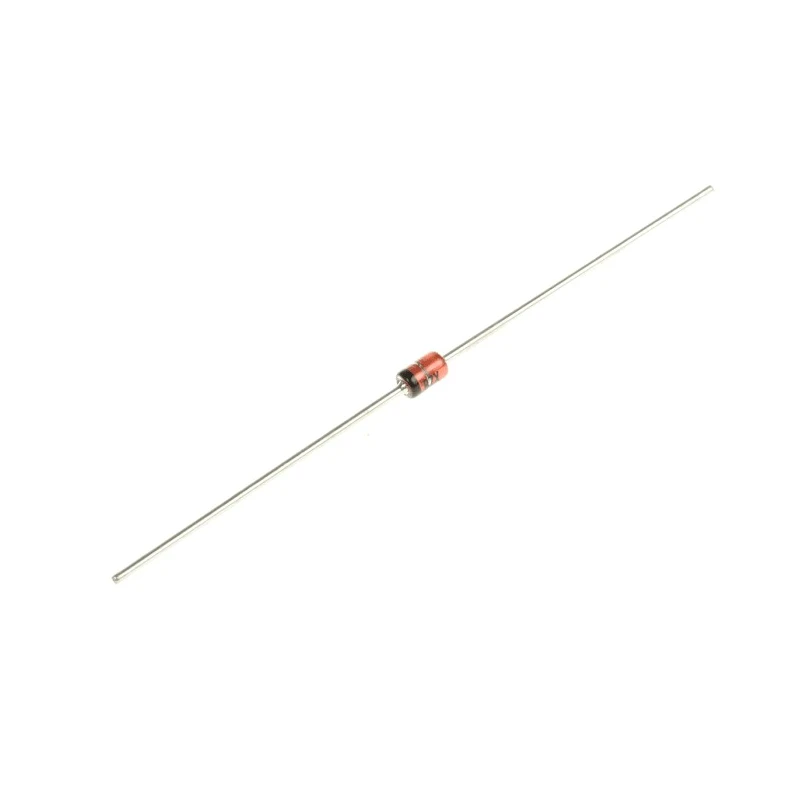

Vishay BZX85C5V1-TAP is a silicon planar power Zener diode providing a nominal voltage of 5.1 V with a tolerance of ±6% and a maximum power dissipation of 1.3 W. This single element device is designed in a DO-41 through hole package with 2 pins, making it suitable for discrete semiconductor applications requiring stable voltage regulation.
The diode exhibits a low maximum reverse leakage current of 1 μA, which helps maintain circuit integrity in voltage regulation and clipping applications. Its test current is 45 mA with a maximum impedance of 10 Ω, supporting reliable performance in stabilizing circuits.
This Zener diode operates reliably across a wide temperature range of -55°C to 175°C and meets the AEC-Q101 automotive standard, ensuring robustness for automotive or industrial electronics.
The compact DO-41 package measures 4.1 mm in length and 2.6 mm in height, making it fit for high-density PCB layouts. Its voltage temperature coefficient of 0.02%/°C assures minimal voltage variation with temperature changes.
Applications for this component include voltage regulation, clipping circuits, and other power management uses in industrial, automotive, laboratory, and manufacturing environments.
This Zener diode features a nominal Zener voltage of 5.1 volts with ±6% tolerance. Maximum power dissipation is 1.3 watts suitable for voltage regulation. Through hole DO-41 package with 2 pins for easy PCB mounting. Wide operating temperature range from -55°C to 175°C.
Maximum reverse leakage current is 1 microampere. Test current specified as 45 mA with maximum impedance 10 ohms. Complies with automotive standard AEC-Q101 for high reliability. Compact dimensions: length 4.1 mm and height 2.6 mm.
This Vishay Zener Diode is an ideal choice for stable voltage regulation in diverse industrial and automotive applications. Explore more semiconductors in the Discrete Semiconductors category on EnvMart for advanced electronic components.
