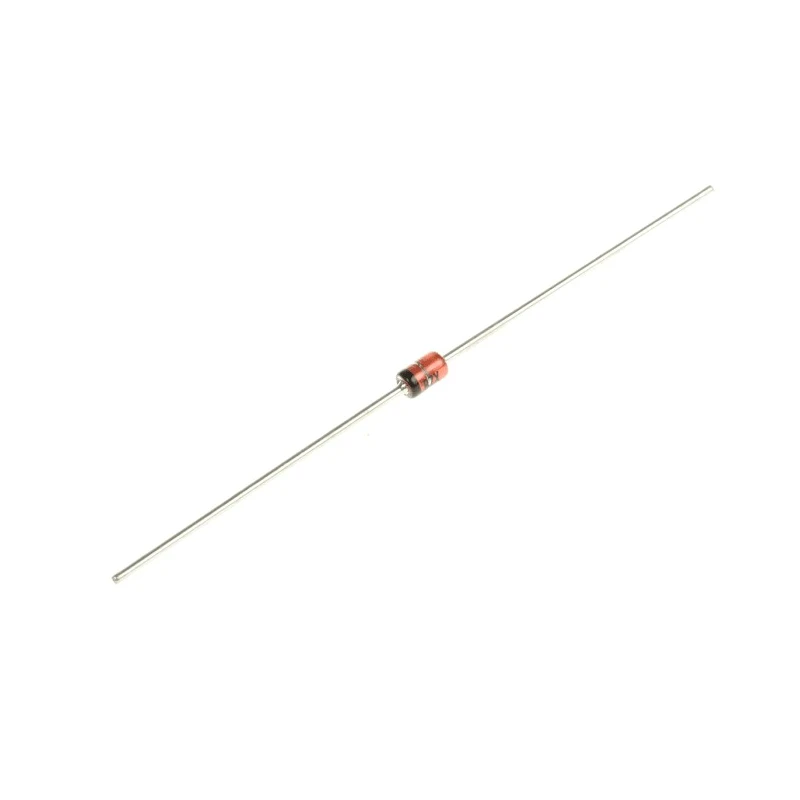

Vishay 1.3 W 5.1 V Single Zener Diode, Through Hole, 2-Pin DO-41 Package BZX85C5V1-TAP

Vishay BZX85C5V1-TAP is a single Zener diode designed for voltage regulation and protection circuits. With a nominal Zener voltage of 5.1 V and power dissipation capacity of 1.3 W, this device offers stable voltage regulation in discrete semiconductor applications.

This diode features a reliable through hole 2-pin DO-41 package, suitable for PCB mounting and integration into various electronic assemblies. The device operates effectively within a temperature range of -55°C to 175°C, making it suitable for harsh automotive and industrial environments.

The BZX85C5V1-TAP has a maximum reverse leakage current of only 1 μA and a typical Zener impedance of 10 Ω, which ensures precision performance in voltage stabilization. Tested at a current of 45 mA, the diode maintains consistent characteristics needed for clipping and voltage reference applications.

Compliant with the AEC-Q101 automotive quality standard, it meets the stringent requirements for robustness and reliability in automotive electronics. The compact length of 4.1 mm and height of 2.6 mm enables seamless integration on circuit boards where space is a premium.

Applications include power supply regulation, voltage clamping, and overvoltage protection circuits in industrial, automotive, consumer electronics, and laboratory environments. Nominal Zener voltage of 5.1 volts with ±6% tolerance.

Maximum power dissipation of 1.3 watts. Low reverse leakage current of 1 microampere. Through hole mounting in DO-41 package with 2 pins. Operating temperature from -55°C to 175°C. Typical Zener impedance of 10 ohms and test current of 45 mA.

Silicon planar technology for high reliability. Automotive standard compliance AEC-Q101. Compact size: 4.1 mm length and 2.6 mm height. Explore more Zener Diodes and semiconductor components on EnvMart to find the ideal part for your electronic design requirements.
