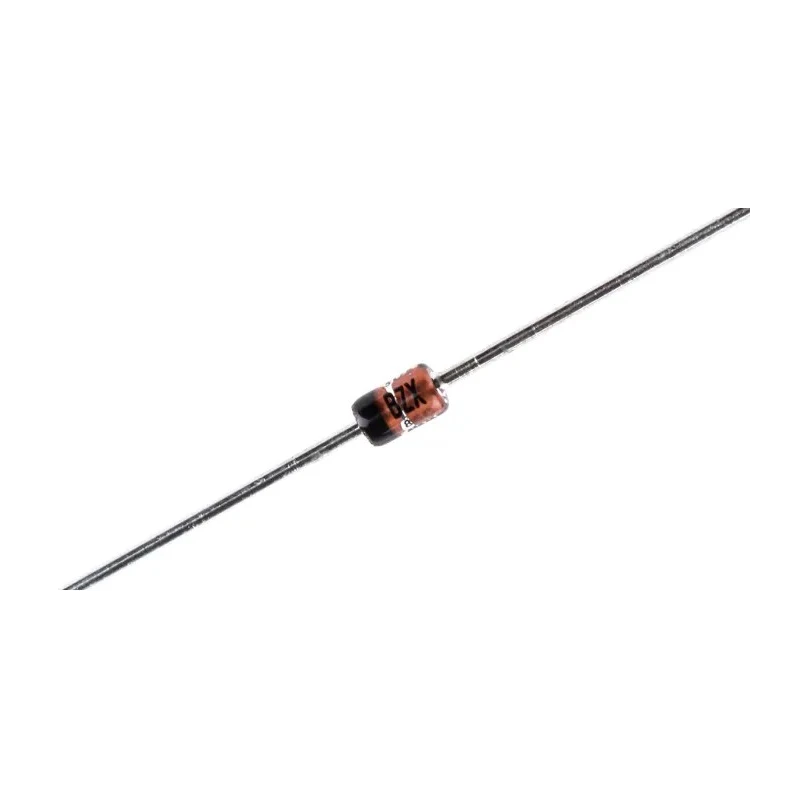

Vishay 1.3 W 3.3 V Single Zener Diode Through Hole 2-Pin DO-41 BZX85C3V3-TAP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.6mm |
| Length | 4.1mm |
| Model | BZX85C3V3-TAP |
| Mount Type | Through Hole |
| Series | BZX85 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -55°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 708-7922Brand: VishayManufacturers Part No.: BZX85C3V3-TAPDistrelec Article No.: 304-44-038 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1.3W |
| Diode Configuration | Single |
| Test Current It | 80mA |
| Maximum Reverse Leakage Current | 40μA |
| Nominal Zener Voltage Vz | 3.3V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 20Ω |
Key Features
- Nominal Zener voltage is 3.3 volts with ±6% tolerance.
- Maximum power dissipation rating is 1.3 watts for reliable voltage regulation.
- Mount type is through hole with 2-pin DO-41 package.
- Test current of 80mA ensures accurate voltage control.
- Maximum reverse leakage current is 40 microamperes for low leakage.
- Operating temperature ranges from -55°C to 175°C, suitable for harsh environments.
- Compliance with automotive standard AEC-Q101 for quality and reliability.
- Compact dimensions allow use in space-limited circuits.
Product Description
Vishay BZX85C3V3-TAP is a high-quality silicon planar Zener diode designed for voltage regulation and stabilization applications. Featuring a nominal Zener voltage of 3.3 V and maximum power dissipation of 1.3 W, this diode offers reliable operation in various electronics circuits requiring voltage reference and protection.
The device is configured as a single diode element housed in a durable through-hole DO-41 2-pin package, facilitating easy integration into printed circuit boards. The test current is specified at 80mA, ensuring precise voltage regulation behaviour within the nominal voltage tolerance of ±6%.
Its maximum Zener impedance of 20 ohms and low reverse leakage current of 40 microamperes make it suitable for minimizing signal distortions in sensitive power and signal conditioning circuits. The operating temperature range from -55°C up to 175°C coupled with compliance to the AEC-Q101 automotive standard enables the diode to withstand harsh industrial and automotive environments.
The compact dimensions of length 4.1 mm and height 2.6 mm allow flexible use in space-constrained electronic designs. Typical applications include voltage stabilization, overvoltage protection, and clipping circuits in industrial controls, automotive electronics, communications, and instrumentation.
Nominal Zener voltage is 3.3 volts with ±6% tolerance. Maximum power dissipation rating is 1.3 watts for reliable voltage regulation. Mount type is through hole with 2-pin DO-41 package. Test current of 80mA ensures accurate voltage control.
Maximum reverse leakage current is 40 microamperes for low leakage. Operating temperature ranges from -55°C to 175°C, suitable for harsh environments. Compliance with automotive standard AEC-Q101 for quality and reliability.
Compact dimensions allow use in space-limited circuits.
This Vishay Zener Diode is ideal for use in industrial, laboratory, automotive, and general electronics applications demanding precise voltage regulation and protection. Browse EnvMart's extensive electronics and discrete semiconductor categories for more power and voltage regulation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 3.3 volts with a tolerance of ±6%.
The maximum power dissipation rating is 1.3 watts, ensuring reliable voltage regulation.
The operating temperature range is from -55°C to 175°C, making it suitable for harsh environments.
It is housed in a through-hole DO-41 package with 2 pins, facilitating easy integration into printed circuit boards.
The test current is specified at 80mA, which ensures accurate voltage control.
The maximum reverse leakage current is 40 microamperes, which helps minimize signal distortions.
The maximum Zener impedance is 20 ohms, contributing to its performance in voltage regulation.
Yes, it complies with the automotive standard AEC-Q101 for quality and reliability.
The dimensions of this diode are 4.1 mm in length and 2.6 mm in height, allowing for flexible use in space-constrained designs.
This diode is suitable for applications including voltage stabilization, overvoltage protection, and clipping circuits in industrial and automotive electronics.
This diode has a single element per chip configuration, making it a single diode element.
The country of origin for this product is India.
