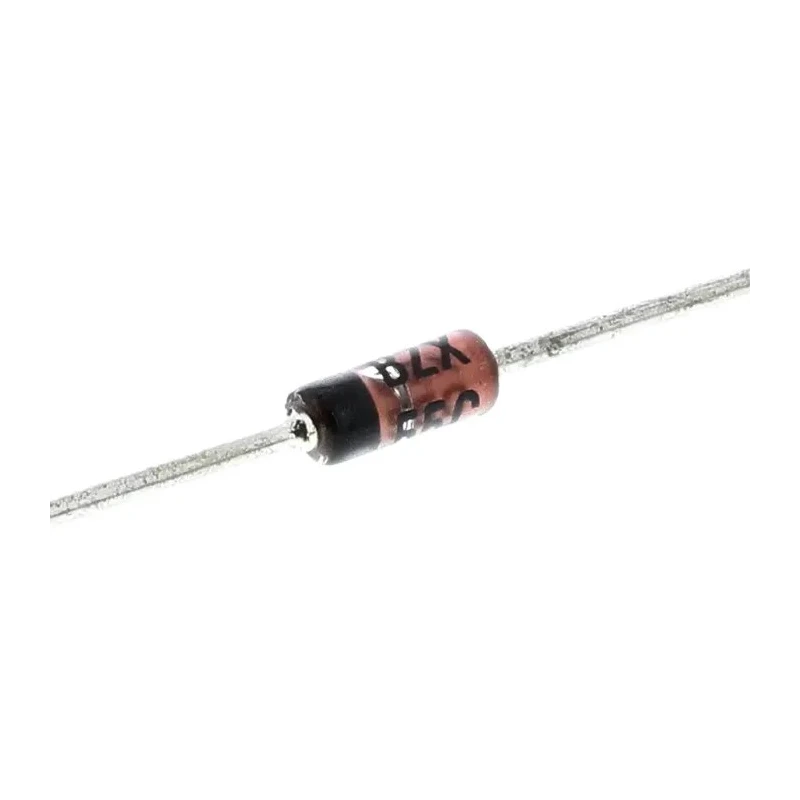

Vishay 9.1 V Zener Diode Single 500 mW Through Hole 2-Pin DO-35 BZX55C9V1-TAP

Free Delivery in India | Lowest Global Shipping Charges

Vishay 9.1 V Zener Diode Single 500 mW Through Hole 2-Pin DO-35 BZX55C9V1-TAP

Name: Vishay 9.1 V Zener Diode Single 500 mW Through Hole 2-Pin DO-35 BZX55C9V1-TAP
Brand: Vishay
SKU: 355769
Price: 0.05 USD
Availability: InStock



Category Zener Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.7mm
Length	3.9mm
Model	BZX55C9V1-TAP
Mount Type	Through Hole
Series	BZX55
Maximum Operating Temperature	175°C
Package Type	DO-35
Minimum Operating Temperature	-65°C
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	708-7893Brand: VishayManufacturers Part No.: BZX55C9V1-TAP
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	100nA
Nominal Zener Voltage Vz	9.1V
Zener Type	Voltage Regulator
Maximum Zener Impedance	10Ω

Key Features

This Zener diode has a nominal voltage rating of 9.1 volts.
It supports a maximum power dissipation of 500 milliwatts for robust voltage regulation.
The diode features through hole mounting with a 2-pin DO-35 package for easy PCB integration.
Maximum Zener impedance is specified at 10 ohms ensuring stable voltage regulation.
Designed with a test current of 5 mA and very low maximum reverse leakage current of 100 nA.
Temperature operating range spans from -65°C to 175°C for reliable performance in harsh environments.
Complies with AEC-Q101 automotive standard indicating high quality and reliability.

Product Description

Vishay BZX55C9V1-TAP Zener Diode is a single element voltage regulator diode rated at 9.1 volts with a maximum power dissipation of 500 mW. The diode is housed in a through hole DO-35 package with two pins, supporting easy mounting on printed circuit boards in various electronic assemblies.

It is designed for precision voltage regulation applications requiring low noise and high stability with a nominal Zener voltage of 9.1 V and tolerance of ±6%.

The device features a maximum Zener impedance of 10 ohms, a test current of 5 mA, and a very low maximum reverse leakage current of 100 nA, ensuring efficient voltage regulation and minimal power loss.

Operating temperature ranges from -65°C to 175°C, making it suitable for industrial, automotive, and commercial electronic systems. This Zener diode provides a highly stable reverse characteristic with low noise suitable for sensitive circuits.

Its compact 3.9 mm length and 1.7 mm height DO-35 package fits standard through-hole PCB layouts. The diode is qualified to the automotive AEC-Q101 standard, confirming durability and quality under demanding conditions. Applications include voltage regulation, voltage reference, and surge suppression in electronic and power supply circuits.

Its small size and robust specifications make it ideal for use in telecommunications, instrumentation, and industrial electronics.

This product is a reputable Vishay semiconductor device widely used in industry for reliable voltage regulation. Choose this Zener Diode for consistent and durable performance in electronics manufacturing.
