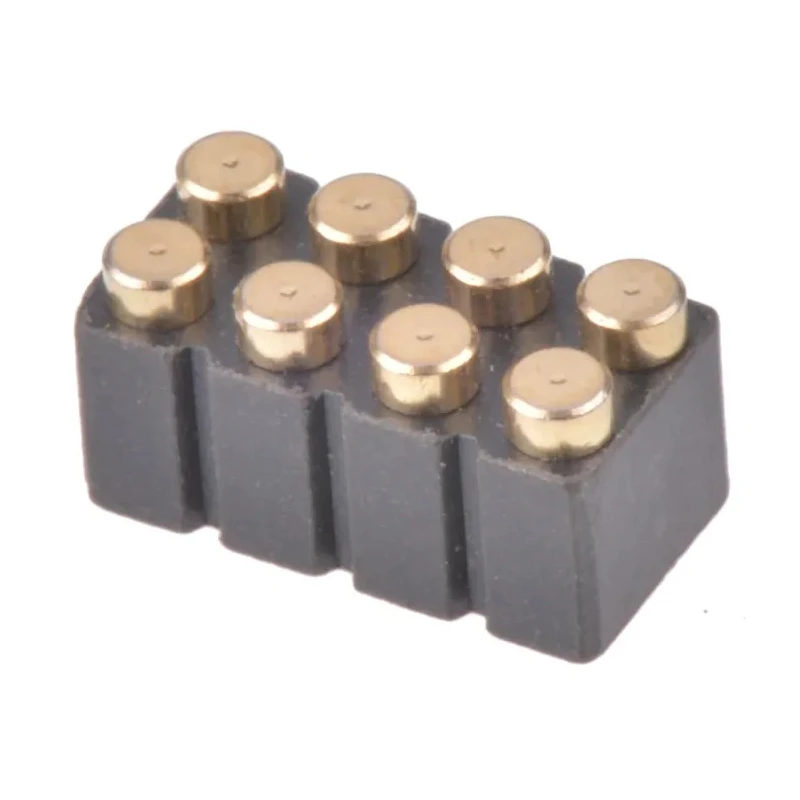

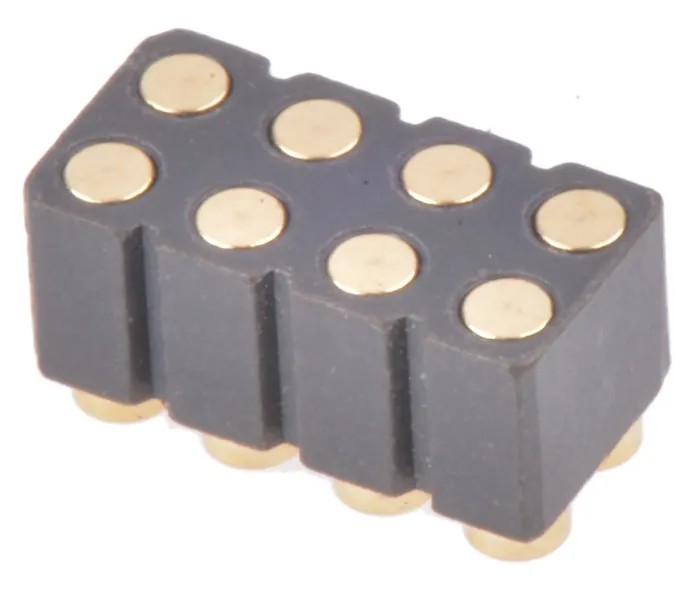

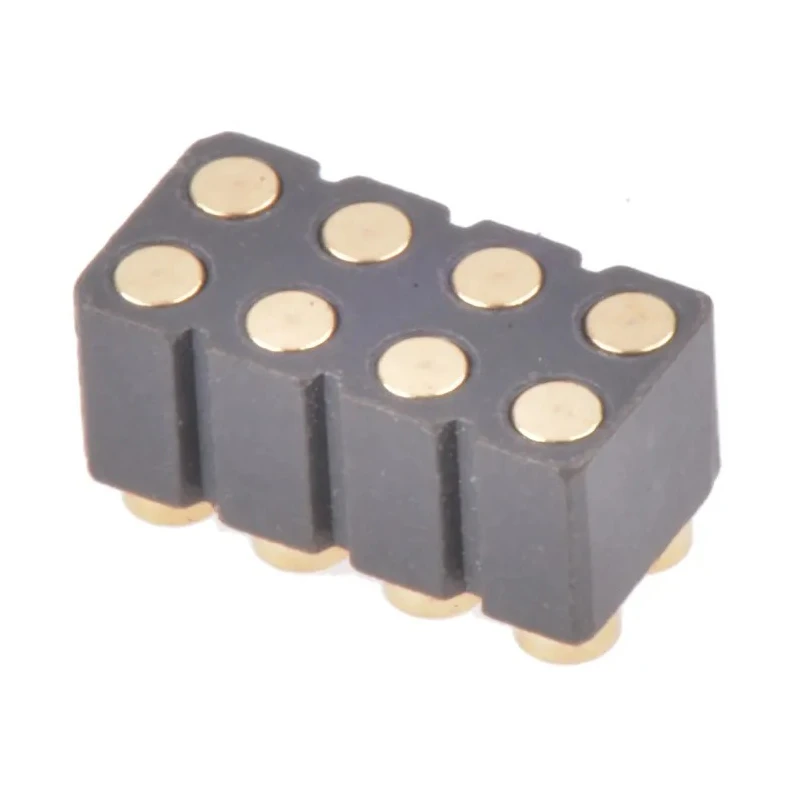

Preci-Dip 802 Series Straight Surface PCB Header 8 Contact, 2.54 mm Pitch, 2 Row, Shrouded 802-10-008-30-507101

Preci-Dip 802-10-008-30-507101 is a Swiss-made 802 Series Straight Surface PCB Header designed for secure electrical connections in electronic assemblies. It features 8 contacts arranged in 2 rows with a 2.54 mm pitch, optimized for surface mounting with a shrouded, straight orientation that protects contacts and enhances assembly reliability.

The contact material is brass with gold plating, providing exceptional conductivity and corrosion resistance, supporting currents up to 3.5 A at voltages up to 150 V. This makes it suitable for applications requiring reliable power and signal transmission.

The housing is made from fibreglass reinforced polyethylene terephthalate, which offers mechanical strength and resistance to high temperatures ranging from -55°C to 125°C, suitable for demanding industrial and commercial environments.

Termination is solder-type with male contact gender, ensuring compatibility with a variety of PCB assembly processes. The product meets UL 94V-0 flame retardancy standards, adding to its safety for industrial equipment and power electronics.

This PCB header is ideal for use in electronic circuits across industries such as telecommunications, industrial control systems, manufacturing automation, and power distribution. Its design facilitates robust electrical performance while supporting efficient automated assembly.

Key features include excellent electrical connectivity, durable housing, compliance with safety standards, and a compact footprint suitable for dense PCB configurations. As part of the 802 Series, it ensures compatibility with standard mating connectors, enhancing system integration.

Constructed with fibreglass reinforced polyethylene terephthalate housing for durability. Brass contacts plated with gold ensure reliable electrical conduction. Designed for surface mount applications with straight orientation.

Operates within temperature range -55°C to 125°C for robust performance. Rated for 3.5 A current and 150 V voltage for effective signal integrity. Termination type is solder compatible with male contact gender. Complies with UL 94V-0 flammability standard, ensuring safety.

Manufactured in Switzerland with high-quality precision standards. Explore the full range of PCB connectors at EnvMart to find compatible parts and accessories that complement your electronic assemblies and system designs.
