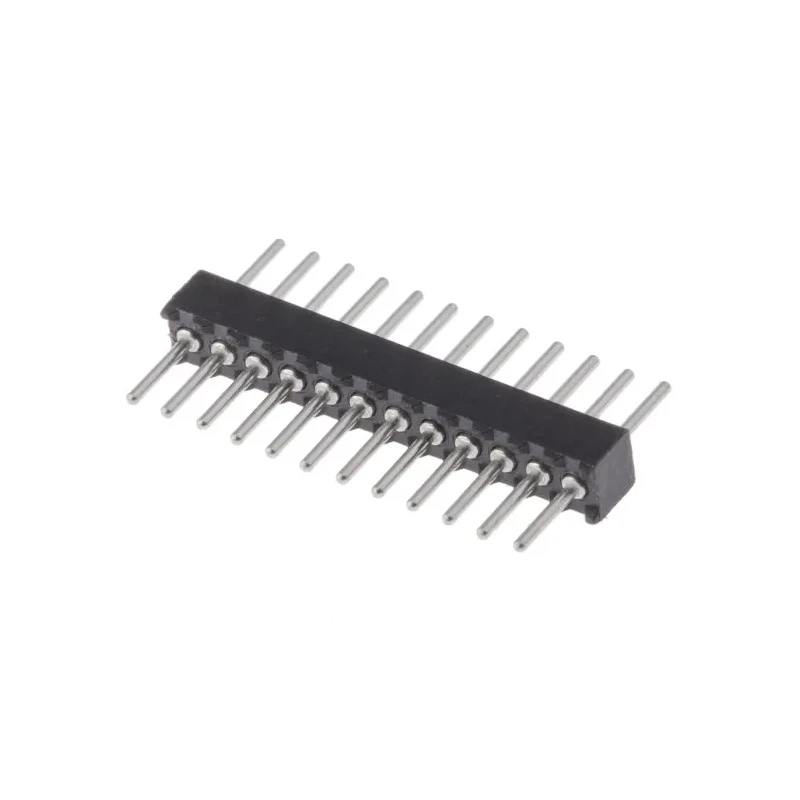

Preci-Dip 850 Series Straight Through Hole Pin Header, 12 Contacts, 1.27 mm Pitch, 1 Row, Unshrouded 850-80-012-10-001101

Preci-Dip 850-80-012-10-001101 is a straight through hole pin header series connector designed with 12 male contacts arranged in a single row with a 1.27 mm pitch. This product is engineered for printed circuit board (PCB) applications requiring secure and reliable electrical connections in electronic systems.

The connector housing is fabricated from fibreglass reinforced polyethylene terephthalate, offering robust mechanical strength and thermal resistance essential for industrial and commercial electronic assemblies. The contacts are brass, plated with tin to ensure electrical performance with corrosion resistance. It supports a maximum operating voltage of 150 volts and carries a current rating of 1 ampere under typical conditions.

Designed for through hole mounting, the header’s pins have a diameter of 0.41 mm with a body height of 2.2 mm and a tail length of 2.9 mm, facilitating precision in soldering and mechanical stability on PCBs. The connector operates efficiently within a wide temperature range from -55 degrees Celsius to 125 degrees Celsius, suitable for harsh environment electronics.

The unshrouded single row layout provides easy pin access and flexible integration into various electronic devices. The connector meets the UL 94V-0 flammability requirements, ensuring compliance with safety standards.

The header features a straight orientation with through hole mount type for secure soldered connections. Constructed with brass male contacts plated in tin, providing excellent conductivity and corrosion resistance. Housing is made from fibreglass reinforced polyethylene terephthalate, ensuring high durability and thermal stability.

Rated for a maximum operating voltage of 150V and current of 1A, suitable for diverse electronic applications. Operating temperature range spans from -55°C to 125°C, enabling usage in various industrial environments. The pin diameter measures 0.41 mm with a body height of approximately 2.2 mm and tail length near 2.9 mm for precise board assembly.

Unshrouded design allows versatile pin accessibility in through hole mounting practices. This connector complies with UL 94V-0 flammability standard enhancing safety in use.

Ideal for use in electronics manufacturing, laboratory equipment, industrial control systems, and communication devices, this PCB header ensures robust electrical connections and ease of assembly. Preci-Dip’s 850 series connectors are renowned for Swiss precision and reliability in electronic component design.
