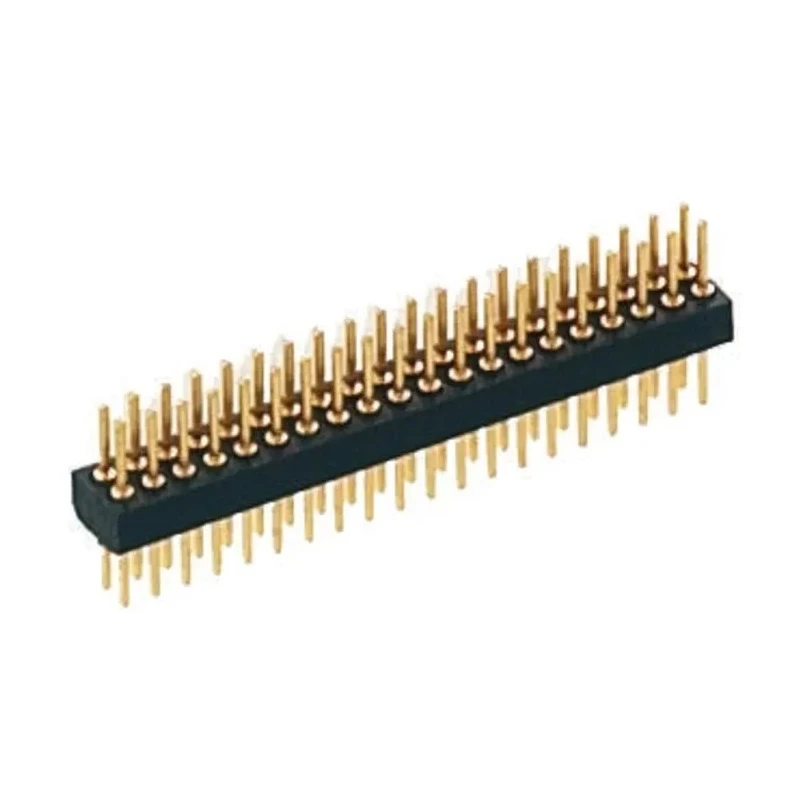

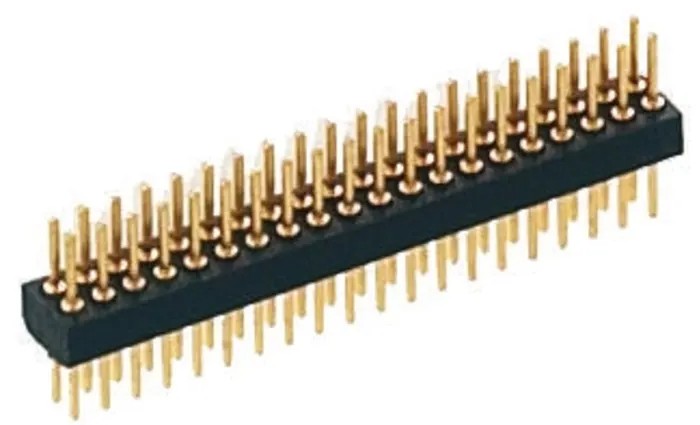

Preci-Dip 852 Series Straight Through Hole Pin Header, 16 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded 852-80-016-10-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 852 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Manufactured with fibreglass reinforced polyethylene terephthalate housing for durability.
- Contact material is brass with tin plating for reliable conductivity.
- Designed for through hole mount type ensuring secure PCB connection.
- Operates at up to 150 volts and 1 amp current rating.
- Suitable for operating temperatures from -55°C to 125°C.
- Termination type is solder for strong electrical and mechanical connection.
- Complies with UL 94V-0 flammability standard for electrical components.
- Swiss manufactured ensuring high precision and quality standards.
Product Description
Preci-Dip 852-80-016-10-001101 is a straight through hole pin header designed for printed circuit boards requiring reliable and precise interconnections. This 16-contact, 2-row connector features a 1.27 mm pitch with an unshrouded design allowing easy solder through hole mounting. It uses a robust fibreglass reinforced polyethylene terephthalate housing material to withstand industrial environments.
The contacts are made of brass, plated with tin to provide excellent conductivity and corrosion resistance. The pin header is rated for 150 volts and 1 amp current, suitable for low-power electronic applications. It supports operating temperatures between -55°C and 125°C, making it adaptable for varied thermal conditions in industrial, manufacturing, and electronic assembly processes.
This connector follows UL 94V-0 fire safety standards ensuring safety compliance in electronic applications. The solder termination type ensures a durable mechanical and electrical bond when assembled on PCBs. Manufactured in Switzerland, these pin headers guarantee premium quality and performance for high-precision electronic projects and industrial equipment.
Applications include industrial automation, power electronics, electronic instrumentation, and other PCB connector needs requiring compact, reliable male headers with straight through hole mounting.
Manufactured with fibreglass reinforced polyethylene terephthalate housing for durability. Contact material is brass with tin plating for reliable conductivity. Designed for through hole mount type ensuring secure PCB connection.
Operates at up to 150 volts and 1 amp current rating. Suitable for operating temperatures from -55°C to 125°C. Termination type is solder for strong electrical and mechanical connection. Complies with UL 94V-0 flammability standard for electrical components.
Swiss manufactured ensuring high precision and quality standards.
Choose Preci-Dip 852 Series pin headers for industrial and commercial electronic component assembly in PCB connectors. Explore related PCB Headers and Connectors for various pitches and contact arrangements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 150 volts, making it suitable for low-power electronic applications.
It is rated for a maximum current of 1 amp, ensuring reliable performance in low-power applications.
The pin header operates within a temperature range of -55°C to 125°C, allowing it to function in various thermal conditions.
The housing is made from fibreglass reinforced polyethylene terephthalate, while the contacts are brass with tin plating for conductivity.
This pin header features 16 contacts arranged in 2 rows, designed for efficient PCB connections.
It uses a solder termination type, providing a strong electrical and mechanical connection when mounted on PCBs.
This model is unshrouded, allowing for easy soldering during installation on printed circuit boards.
The contacts have a pitch of 1.27 mm, which is standard for many PCB applications.
It is manufactured in Switzerland, ensuring high precision and quality standards in its production.
This pin header complies with the UL 94V-0 flammability standard, ensuring safety in electrical applications.
It is designed for through hole mounting, ensuring a secure connection to the PCB.
It is suitable for applications in industrial automation, power electronics, and electronic instrumentation, among others.
