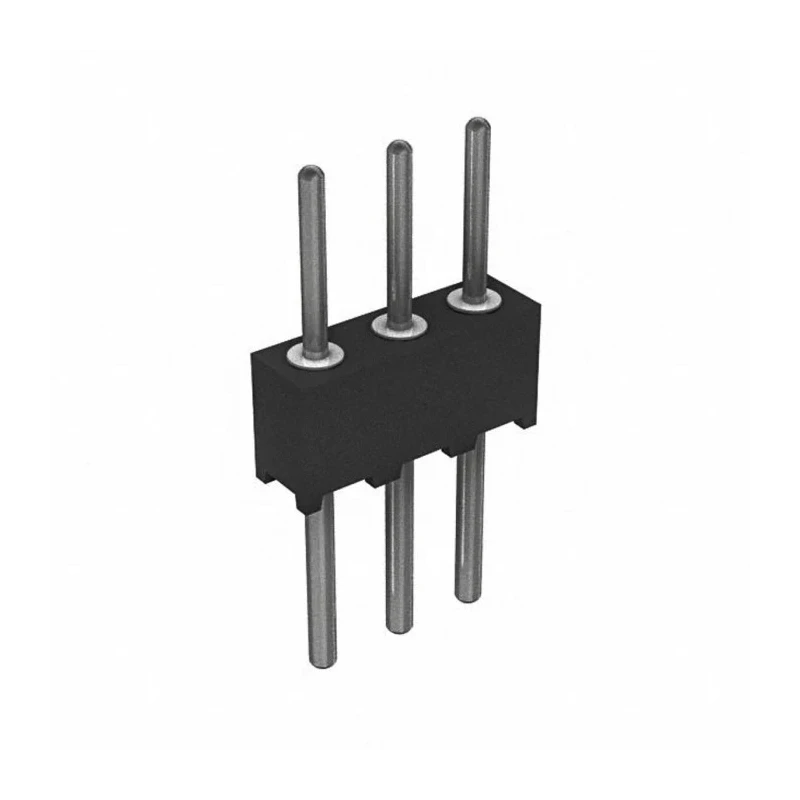

Preci-Dip 850 Series Straight Through Hole 3-Contact Pin Header 1.27 mm Pitch 1 Row Unshrouded 850-80-003-10-001101

Preci-Dip 850-80-003-10-001101 is a 850 Series straight through hole pin header providing a robust 3-contact connection with a 1.27 mm pitch in a single row configuration.

The pin header's male brass contacts feature tin plating to ensure excellent conductivity and corrosion resistance, while the housing is made from fibreglass reinforced polyethylene terephthalate, delivering mechanical durability and heat resistance within an operating range from -55°C up to 125°C. This makes it suitable for a variety of industrial, laboratory, and power electronics applications.

With a voltage rating of 150 V and 1 A current capacity, the pin header is designed to support low-power power and signal transmission requirements. Its unshrouded design enables easy soldering in through-hole PCB mounting scenarios, facilitating straightforward integration into electronic assemblies.

The 1.27 mm pitch and single-row layout allow for compact PCB connector designs, making it ideal for applications needing high density connectors while maintaining reliability. The connector meets typical mechanical and electrical standards but does not have specific certifications listed.

Features a single row of 3 male contacts for reliable electrical connection. Pin header is unshrouded to allow easy soldering through-hole installation. Constructed with brass contact material plated with tin for corrosion resistance.

Housing made of fibreglass reinforced polyethylene terephthalate for mechanical strength. Operates at voltages up to 150 V and current rating of 1 A. Designed for temperatures from -55°C minimum to 125°C maximum operating range.

Has a straight orientation with solder termination type suitable for through-hole mounting. Compact 1.27 mm pitch allows dense circuit board layouts. Manufactured in Switzerland ensuring high quality standards. Ideal for electronic, industrial, and power connector applications.

This pin header is suitable for use in electronics manufacturing, industrial control systems, power distribution boards, instrumentation, and various other commercial and laboratory applications where a reliable PCB connector is required.
