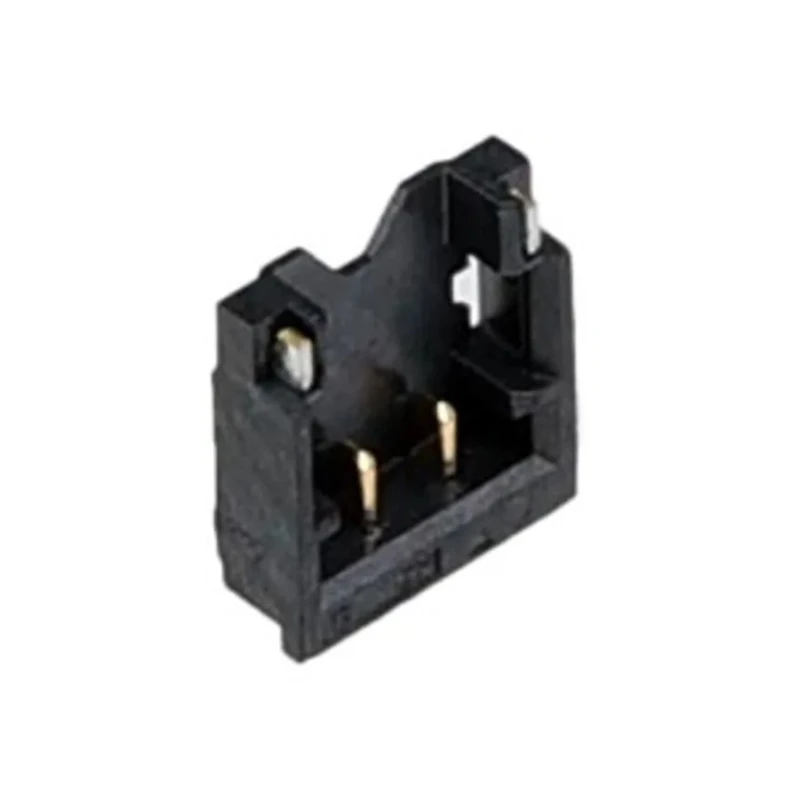

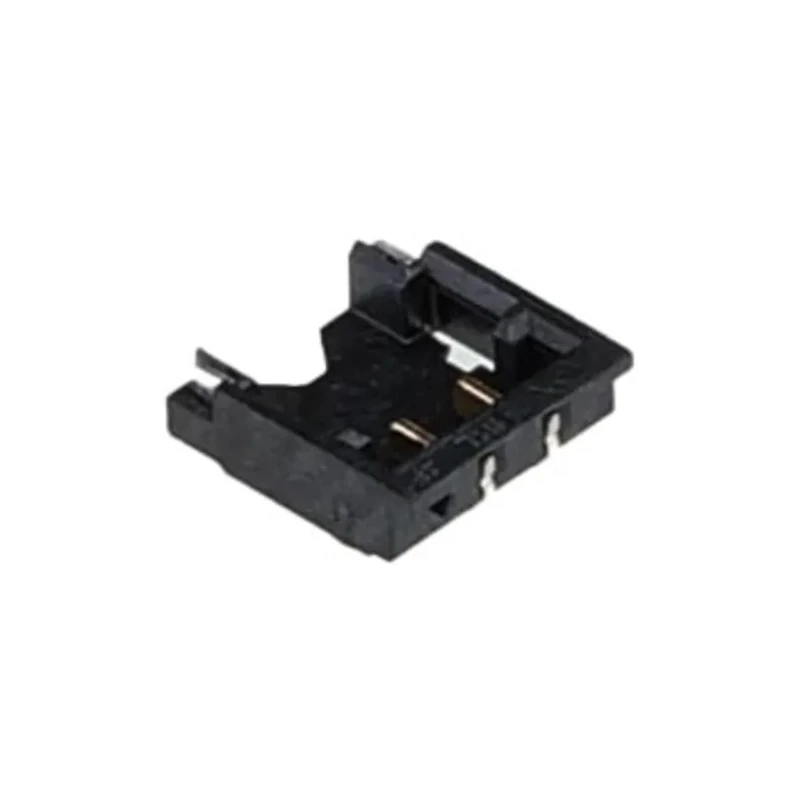

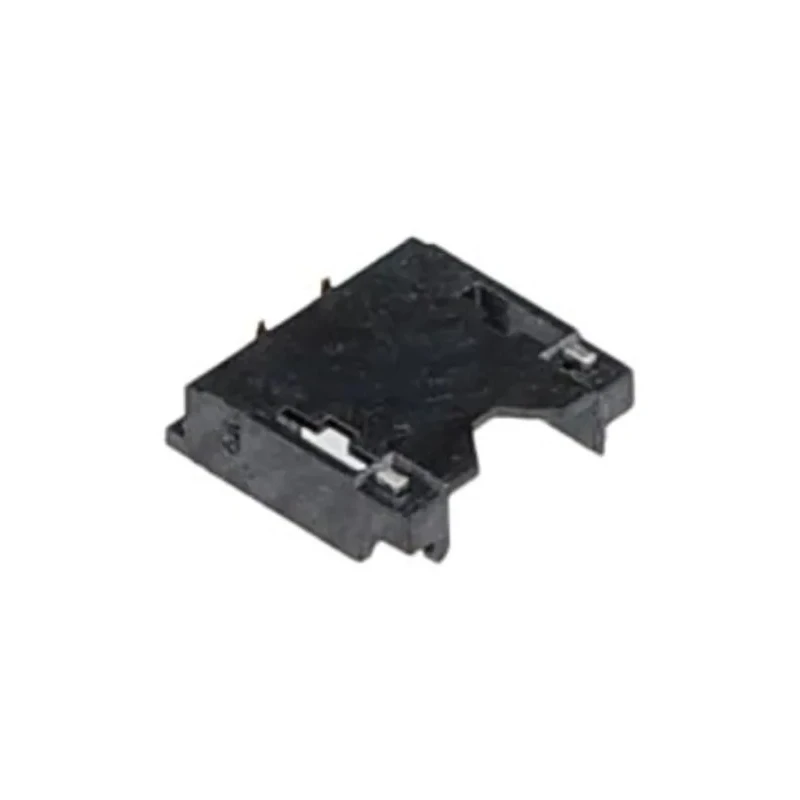

Molex 78171 Series Straight Surface PCB Header, 2 Contacts, 1.2 mm Pitch, 1 Row, Shrouded 78171-0002
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | 78171 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.2mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-0820Brand: MolexManufacturers Part No.: 78171-0002 |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The 1.2 mm pitch allows compatibility with a wide range of PCB layouts.
- Copper alloy contacts are gold-plated for corrosion resistance and reliable conductivity.
- Shrouded design enhances connector alignment and prevents damage during mating.
- Rated for 1.5A current at 50V, suitable for diverse electronic applications.
- Constructed from liquid crystal polymer housing for durability and thermal stability.
- Operates reliably within a temperature range of -40°C to 105°C.
- Surface mount termination type facilitates efficient automated assembly.
- Designed for wire-to-board connector systems with male contact gender.
Product Description
Molex 78171-0002 is a straight surface PCB header, part of the 78171 Series wire-to-board connector system, featuring 2 gold-plated copper alloy contacts arranged in a single row with a 1.2 mm pitch. The shrouded design ensures accurate alignment and protection of the contacts during mating, making it suited for compact and reliable electronic assemblies.
This component is constructed with a durable liquid crystal polymer housing, allowing it to withstand operating temperatures from -40°C to 105°C and maintain performance under industrial and commercial conditions. Rated for a maximum current of 1.5A at 50V, the header supports efficient signal transmission in various applications including telecommunications, consumer electronics, automation, and medical devices.
The surface mount termination type supports streamlined soldering processes and automated assembly, improving manufacturing efficiency. Its male contact gender and wire-to-board system compatibility make it adaptable for versatile PCB layouts and tight spaces.
1.2 mm pitch ensures broad PCB compatibility and accurate contact spacing. Gold plating on copper alloy contacts provides excellent corrosion resistance and conductivity. Shrouded connector design for protective mating and alignment precision.
Durable liquid crystal polymer housing ensures thermal stability and mechanical strength. Rated for 1.5A current and 50V voltage, suitable for multiple PCB applications. Operating temperature range from -40 °C to 105 °C supports diverse environments.
Surface mount termination type facilitates automated manufacturing processes. Ideal for industrial, telecommunications, consumer electronics, and medical device applications. Compact, 1-row arrangement fits constrained PCB layouts efficiently.
This Molex series connector meets the demanding requirements of modern electronic assemblies and provides reliable performance with enhanced durability and precise fit. Explore the complete Molex PCB header range at EnvMart for your industrial and manufacturing needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 1.2 mm, allowing compatibility with a wide range of PCB layouts.
It is rated for a maximum current of 1.5A, suitable for various electronic applications.
This PCB header can handle a voltage of up to 50V.
The housing is made from liquid crystal polymer, and the contacts are made of gold-plated copper alloy for corrosion resistance and reliable conductivity.
It operates reliably within a temperature range of -40°C to 105°C.
This model features 2 contacts arranged in a single row.
It uses a surface mount termination type, facilitating efficient automated assembly.
This model has a shrouded design, which enhances connector alignment and prevents damage during mating.
The contact gender of this header is male, designed for wire-to-board connector systems.
This PCB header is suitable for applications in telecommunications, consumer electronics, automation, and medical devices.
The country of origin for this model is Malaysia.
It is designed for a wire-to-board connector system, making it adaptable for various PCB layouts.
