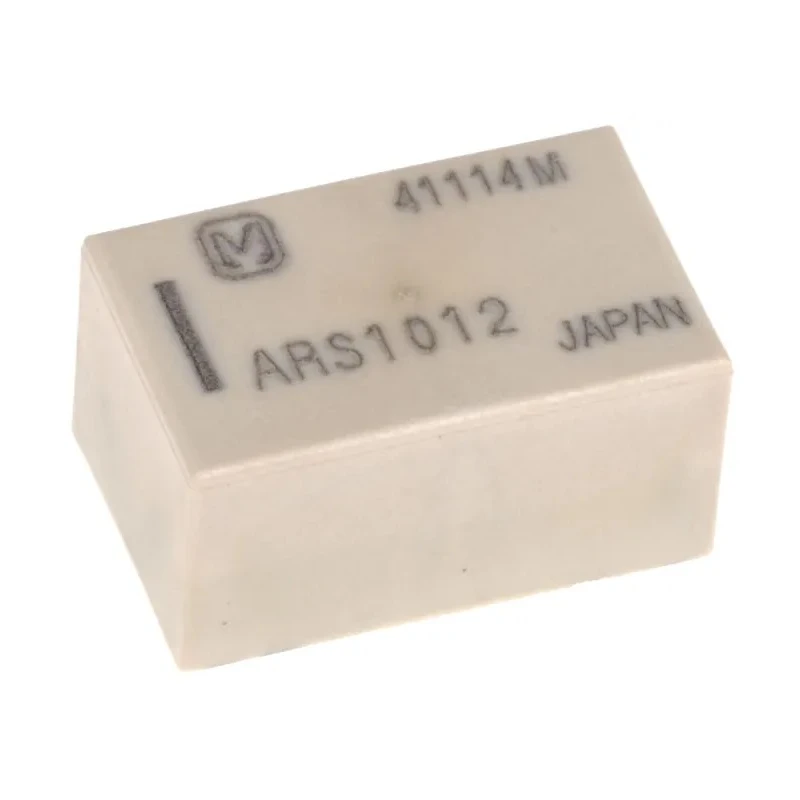

Panasonic Through Hole High Frequency Relay, 12V DC Coil, 3 GHz Max Coil Frequency, SPDT, Gold Plated Contacts ARS1012

Panasonic ARS1012 Through Hole High Frequency Relay is a high precision relay designed for microwave and RF switching applications. It features a 12V DC coil capable of switching frequencies up to 3 GHz, making it suitable for applications requiring minimal signal loss and high isolation.

The relay includes a single pole double throw (SPDT) contact configuration with gold plated contacts to ensure excellent electrical performance and longevity. With coil resistance of 720 ohms and a coil power consumption of just 200 milliwatts, it operates efficiently with low power requirements.

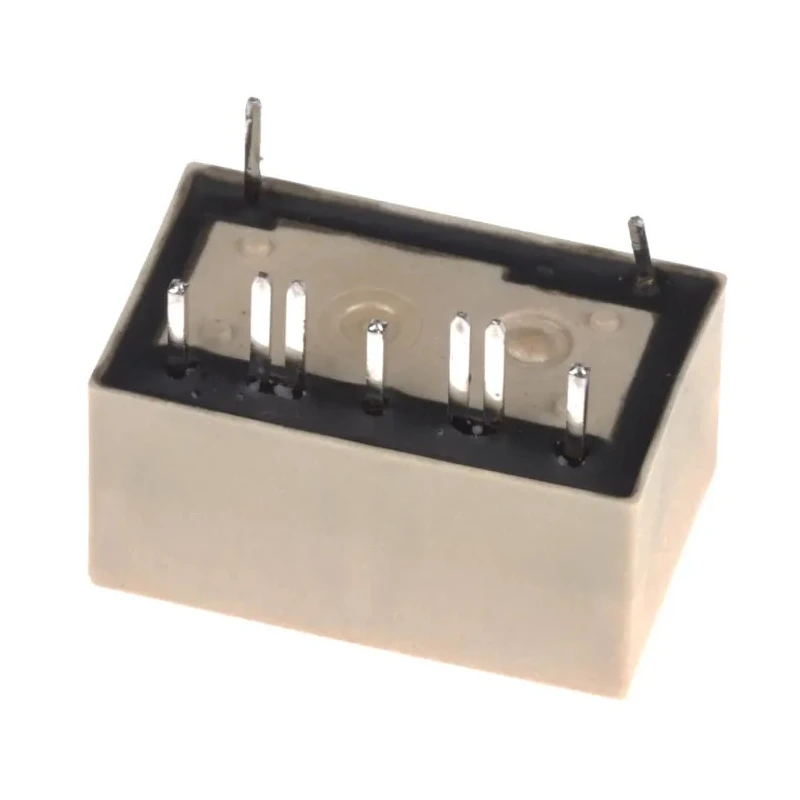

The compact super miniature design measures 14mm in length and 7.2mm in height, fitting easily into high-density PCB layouts. The relay employs through hole mounting with solder pin terminals for robust mechanical stability.

Performance metrics include an insertion loss of 0.3 dB and isolation of 30 dB, which preserve signal integrity up to 3 GHz. The Voltage Standing Wave Ratio (VSWR) of 1.4 at 3 GHz further ensures minimal reflection and signal degradation.

Its operating temperature range from -40°C to 70°C allows reliable usage in varying environmental conditions common in industrial and telecommunications equipment.

Typical applications include broadcasting, video systems, measurement instruments, mobile phone base stations, and communications systems that demand high-frequency relay switching with precision and durability.

Compact super miniature size suitable for space-constrained PCB designs. Gold plated contacts for superior conductivity and reliability. Low coil power consumption improves energy efficiency. Excellent RF characteristics with low insertion loss and high isolation.

Robust through hole mounting with solder pin terminals. Wide operating temperature range for industrial and commercial environments. Optimized VSWR for signal integrity at up to 3 GHz frequency.

Made in Japan by Panasonic, this ARS series relay offers exceptional quality and performance. It is a dependable solution for high frequency relay needs in industrial, laboratory, telecommunications, and broadcast sectors. Explore similar high frequency Relays or browse Panasonic products within our extensive catalog on EnvMart.
