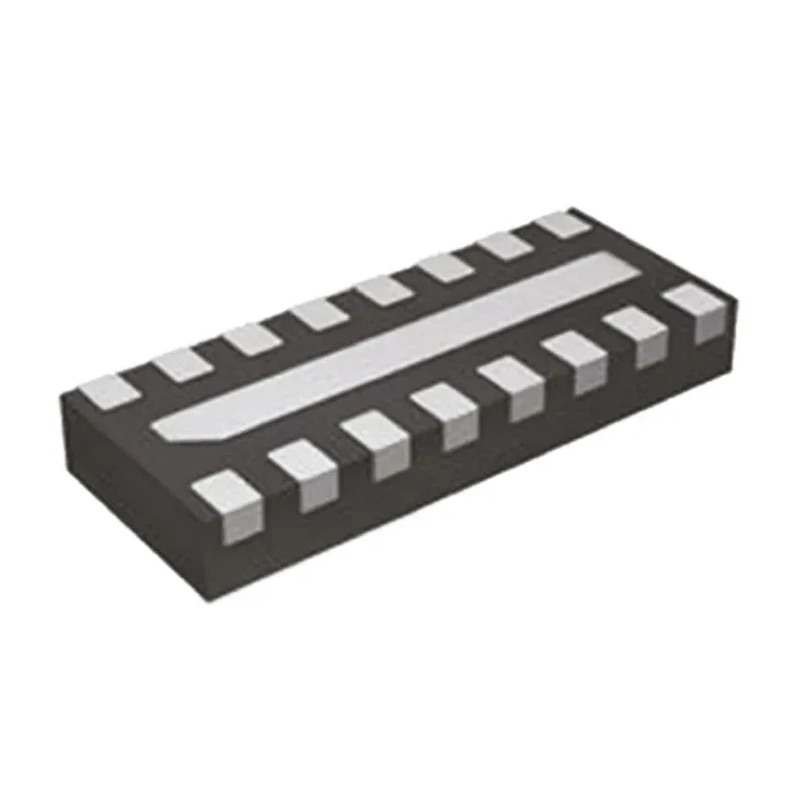

Semtech 6-Element Bi-Directional EMI Filter & ESD Protector 16-Pin SLP EP ECLAMP2410P.TCT

Semtech ECLAMP2410P.TCT is a 6-element bi-directional EMI filter and ESD protector designed for sensitive electronic devices requiring robust transient voltage suppression. The complex array configuration enables it to provide superior EMI filtering and electrostatic discharge protection, ensuring device safety in electrically noisy environments.

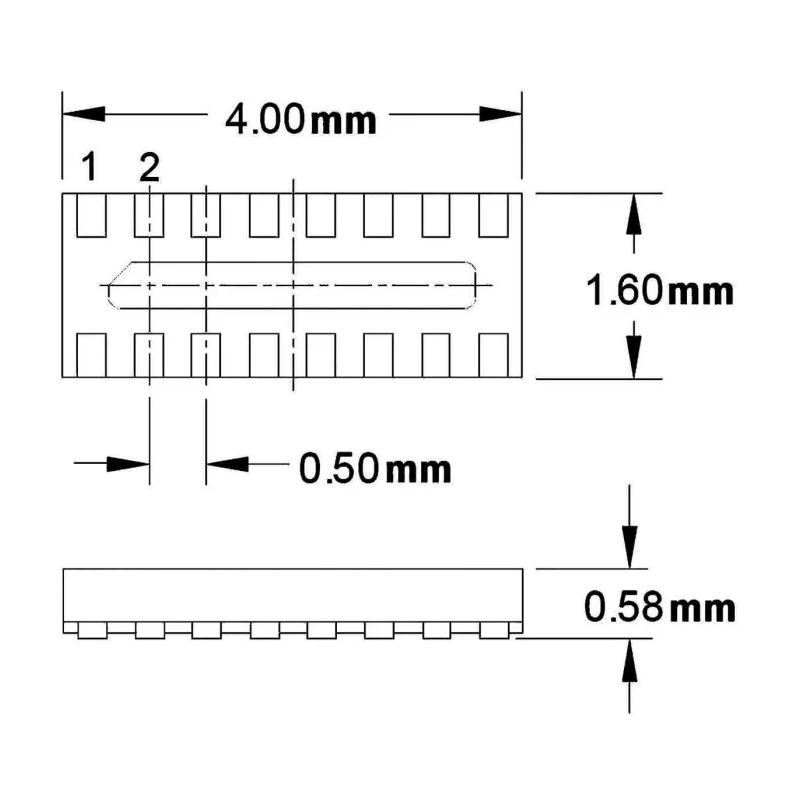

This device comes in a compact 16-pin SLP EP surface mount package with dimensions of 4.1mm in length, 1.6mm in width, and 0.65mm in height, making it ideal for space-constrained printed circuit board designs. It operates effectively in temperature extremes from -40°C to 85°C, supporting reliability across harsh industrial and commercial applications.

The filter chip features a minimum breakdown voltage of 6V and a maximum reverse stand-off voltage of 5V, allowing it to clamp high-voltage transients efficiently and protect downstream electronics. Its test current of 1mA and low maximum reverse leakage current of 500nA signify energy-efficient operation with minimal leakage losses.

The ECLAMP2410P series is particularly applicable in industries such as telecommunications, consumer electronics, industrial automation, and instrumentation where EMI and ESD disturbances can impair system performance. It enhances signal integrity and extends device lifespan by safeguarding against sudden transient voltage spikes caused by electrostatic discharge or electromagnetic interference.

This product is RoHS compliant and is supplied on reels for optimized manufacturing assembly processes. Note that automotive-grade standards are not applicable for this device. Complex diode array configuration ensures effective EMI and ESD suppression.

Bi-directional filtering and protection feature for voltage spikes. Compact 16-pin SLP EP surface mount package design. Operational temperature range from -40°C to +85°C. Low maximum reverse leakage current for energy-efficient protection.

6 elements per chip provide enhanced transient voltage suppression. Ideal for telecommunications, industrial, and consumer electronic applications. RoHS compliant with no automotive certification. Browse our range of Discrete Semiconductors for further options in EMI and ESD protection in the Electronics & Electricals category at EnvMart.
