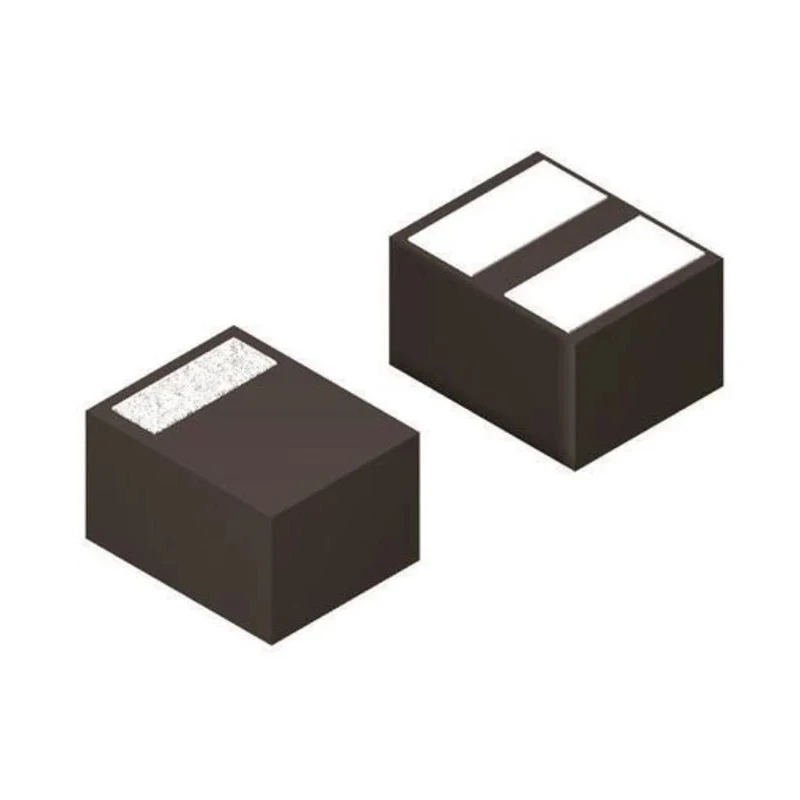

Semtech 1-Element Bi-Directional TVS Diode 200 W 2-Pin Surface Mount SLP EP UCLAMP1211P.TCT

Semtech UCLAMP1211P.TCT is a 1-Element Bi-Directional TVS Diode designed for transient voltage suppression in sensitive electronic circuits. The device provides up to 200 W peak pulse power dissipation with a compact 2-pin surface mount (SLP EP) package, measuring just 1.0 mm in length, 0.6 mm in width, and 0.47 mm in height.

This diode offers bi-directional protection, making it ideal for applications requiring defense against both positive and negative voltage transients. Featuring a low leakage current of 1μA, it contributes to minimal standby power consumption, suitable for portable devices like mobile phones, notebooks, desktops, and servers.

The device is rated to operate reliably across a wide temperature range of -55°C to 125°C, supporting industrial and commercial environments. It complies with IEC 61000-4-2 ESD standards, offering protection levels of ±15kV air discharge and ±8kV contact discharge, thereby safeguarding sensitive components from electrostatic discharge events.

The clamping voltage of 28.5 V ensures effective suppression of voltage spikes, while a maximum peak pulse current of 7 A provides robust transient suppression capability. This TVS Diode uses advanced silicon avalanche technology to achieve fast response times and high reliability in transient protection.

This product is well-suited for transient protection on data lines and power rails in consumer electronics, telecommunication equipment, and industrial control systems. Its ultra-small footprint makes it especially valuable for space-constrained PCB designs.

Compact surface mount package measuring 1.0 x 0.6 x 0.47 mm for space efficiency. Bi-directional transient voltage suppression capability protects against polarity reversals. Low leakage current reduces power loss and improves device efficiency.

Wide operating temperature range enhances reliability in various environments. Meets IEC 61000-4-2 ESD protection standards for enhanced device safety. High clamping voltage ensures adequate voltage suppression during transients.

Robust peak pulse current rating allows efficient transient energy handling. Single element device simplifies circuit design and integration. Ideal for portable electronics, servers, and telecommunications equipment. Utilizes solid-state silicon avalanche technology for durability and fast response.

Choose Semtech UCLAMP1211P.TCT for high-performance transient voltage suppression with compact size and reliable protection, perfectly suited for industrial, telecommunications, computing, and consumer electronics applications. Explore more transient voltage suppressors in the Electronics & Electricals category at EnvMart.
