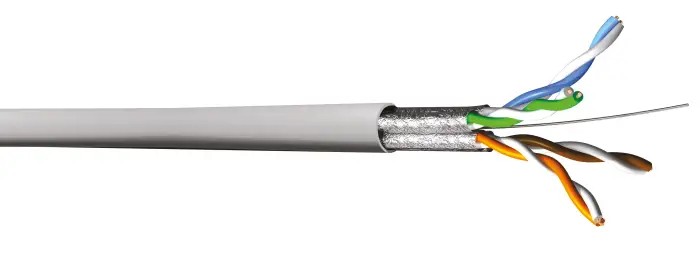

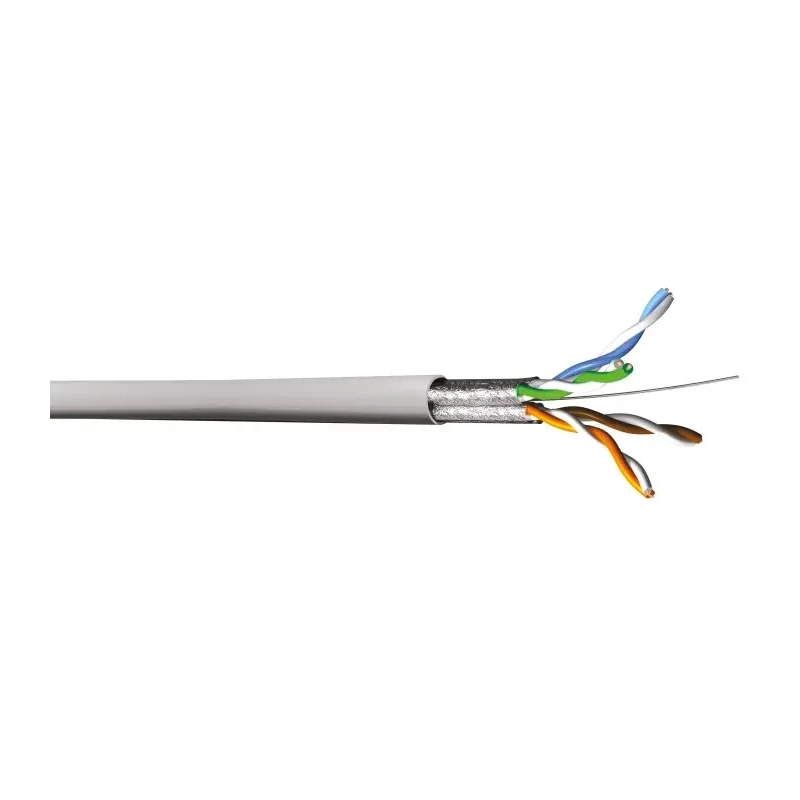

Multimedia Connect MMC Cat6 Shielded Screened Ethernet Cable, 100 m, Blue PVC Jacket
Specifications
| Country of Origin | China |
|---|---|
| Brand | Multimedia Connect |
| Model | Cat6 |
| Cable Length | 100m |
| Series | MMC |
| Outside diameter | 5.6mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyvinyl Chloride |
| Shield Type | Shielded |
| Standards/Approvals | TIA, EIA |
| Jacket Colour | Blue |
| Fire Behaviour | IEC 60332-1 |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 26AWG |
| Size of Strands | 26AWG |
| Cable CSA | 26AWG |
| LAN Category | Cat6 |
| Terminated/Unterminated | Unterminated |
Key Features
- Constructed with 4 cores of stranded copper conductors configured as 7 strands of 26AWG wire.
- Features individual shielding for each twisted pair ensuring superior noise resistance.
- Conforms to TIA and EIA standards with IEC 60332-1 fire behavior rating.
- Suitable for digital and analogue voice, data, and video transmission applications.
- Operates reliably at temperatures ranging from -20°C to 70°C.
- Designed with a minimum bend radius of 8 times the cable diameter for flexible installation.
- Outside diameter measures 5.6 mm with a polyvinyl chloride blue jacket.
- Unterminated cable allowing custom connectors or terminations to be applied.
Product Description
Multimedia Connect TX200P4FPBRS1 MMC Series Cat6 Shielded Screened Ethernet Cable provides a 100-meter length cable designed for high-speed networking applications.
This cable features four cores of stranded copper conductors, each twisted pair individually shielded with a foil to enhance signal integrity by reducing electromagnetic interference. A blue polyvinyl chloride jacket offers mechanical protection and durability for indoor use.
The cable supports transmission of digital and analogue voice, data, and video signals, meeting stringent TIA and EIA specifications as well as IEC fire behavior classification IEC 60332-1. It is rated for operating temperatures from -20°C up to 70°C, making it suitable for a wide range of industrial, commercial, and residential installations.
The cable diameter is 5.6 mm with a multi-strand conductor configuration of 7 strands of 26AWG per conductor to allow flexibility and reliable connectivity. Its untethered design allows for custom terminations such as RJ45 connectors tailored to specific network needs.
Applications include enterprise networking infrastructures, telecommunications, security systems, and audiovisual data transmission in industrial and commercial environments. 4 cores of stranded copper conductors with 7 strands of 26AWG each.
Individual foil shielding for each twisted pair to reduce crosstalk. Blue PVC jacket ensures protection and durability. Meets IEC 61156-5 and EN 50288-5-2 standards for Category 6 performance. Supports frequencies up to 250 MHz suitable for high-speed data networks.
This product is manufactured in China and packaged as a continuous 100-meter reel, allowing custom length applications. It is suitable for industrial, laboratory, commercial, and residential networking setups. For more options, explore the Multimedia Connect range offered by EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this Ethernet cable is 70°C.
This Cat6 cable conforms to TIA and EIA standards and meets the IEC 60332-1 fire behavior rating.
The length of this Multimedia Connect Cat6 cable is 100 meters.
The outside diameter of this cable is 5.6 mm.
This Ethernet cable has four cores of stranded copper conductors.
This cable features individual foil shielding for each twisted pair, enhancing signal integrity by reducing electromagnetic interference.
The minimum operating temperature for this cable is -20°C.
The conductor type used in this Ethernet cable is stranded copper, with each conductor consisting of 7 strands of 26AWG wire.
This cable is unterminated, allowing for custom connectors or terminations to be applied.
This Cat6 cable is suitable for digital and analogue voice, data, and video transmission applications, including enterprise networking and telecommunications.
The jacket material of this Ethernet cable is polyvinyl chloride (PVC), and it is blue in color.
The conductors in this cable are configured as 7 strands of 26AWG wire per core.
