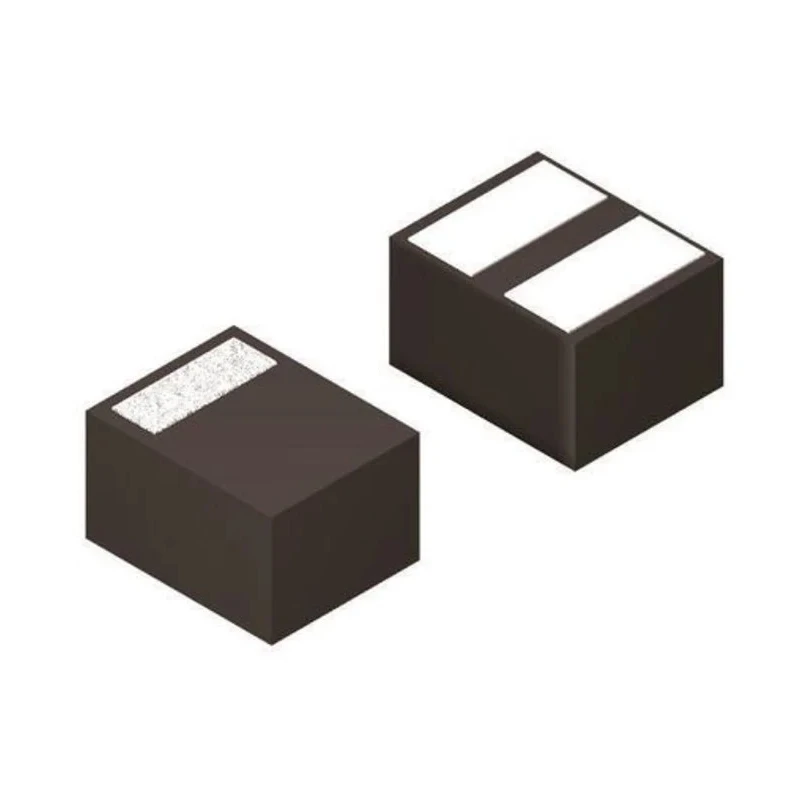

Semtech 1-Element Bi-Directional TVS Diode 200W, 2-Pin Surface Mount SLP EP UCLAMP1211P.TCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semtech |
| Height | 0.47mm |
| Length | 1mm |
| Model | UCLAMP1211P.TCT |
| Width | 0.6mm |
| Mount Type | Surface |
| Series | uCLAMP |
| Maximum Operating Temperature | 125°C |
| Package Type | SLP EP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 28.5V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 13.3V |
| Maximum Reverse Stand-off Voltage Vwm | 12V |
| Peak Pulse Power Dissipation Pppm | 200W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Bi-directional diode configuration ensures protection against voltage transients from both directions.
- Minimum breakdown voltage of 13.3V protects sensitive circuits from overvoltage events.
- Compact footprint with dimensions of 1mm length, 0.6mm width, and 0.47mm height.
- Offers ESD protection meeting IEC 61000-4-2 standards up to ±15kV air discharge.
- Low leakage current of 1μA minimizes power loss during normal operation.
- Wide operating temperature range from -55°C to 125°C supports various industrial applications.
- High peak pulse current rating of 7A enables handling of transient surges effectively.
- Ideal for portable electronics, laser diode protection, and analog input lines protection.
Product Description
Semtech UCLAMP1211P.TCT is a single-element, bi-directional transient voltage suppressor (TVS) diode designed to protect electronic components from voltage spikes and electrostatic discharge (ESD) events.
With a peak pulse power dissipation of 200W and a low leakage current of 1μA, it ensures reliable overvoltage protection while maintaining energy efficiency in sensitive circuits. The device has a compact surface mount SLP EP package with a length of 1mm, width of 0.6mm, and height of 0.47mm, making it suitable for space-constrained applications.
It features a minimum breakdown voltage of 13.3V and clamping voltage of 28.5V, providing robust protection against transient surges. The wide operating temperature range of -55°C to 125°C ensures stable operation in harsh industrial, laboratory, and electronic manufacturing environments.
The UCLAMP1211P.TCT diode complies with IEC 61000-4-2 ESD standards up to ±15kV air discharge and ±8kV contact discharge, making it ideal for protecting data lines and analog inputs against electrostatic damage.
This component is especially beneficial for portable devices like mobile phones, notebooks, desktops, servers, and laser diode protection circuits. Bi-directional diode configuration for dual-direction transient suppression.
Compact 2-pin surface mount package reduces PCB footprint. High peak pulse current and power ratings enhance surge robustness. Complies with ESD protection standards IEC 61000-4-2 and IEC 61000-4-4. Low leakage current maintains circuit integrity during normal operation.
Wide operating temperature range suits a variety of industrial applications. Used in portable electronics, telecommunications, and industrial control systems. Explore more semiconductor products like the Semtech UCLAMP1211P.TCT 1-Element Bi-Directional TVS Diode in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 200W, allowing it to effectively handle transient surges.
It has a minimum breakdown voltage of 13.3V, which protects sensitive circuits from overvoltage events.
The clamping voltage for this diode is 28.5V, providing robust protection against transient surges.
This model has a compact footprint with dimensions of 1mm in length, 0.6mm in width, and 0.47mm in height.
The maximum reverse stand-off voltage is 12V, ensuring safe operation under specified conditions.
It has a maximum peak pulse current rating of 7A, enabling it to handle transient surges effectively.
The operating temperature range is from -55°C to 125°C, making it suitable for various industrial applications.
It features a low leakage current of 1μA, which minimizes power loss during normal operation.
This diode uses a surface mount type, which helps reduce PCB footprint in applications.
It complies with IEC 61000-4-2 ESD standards, providing protection up to ±15kV air discharge and ±8kV contact discharge.
This model is ideal for protecting portable electronics, laser diodes, and analog input lines against voltage transients.
It has a 2-pin configuration, which is typical for surface mount devices.
