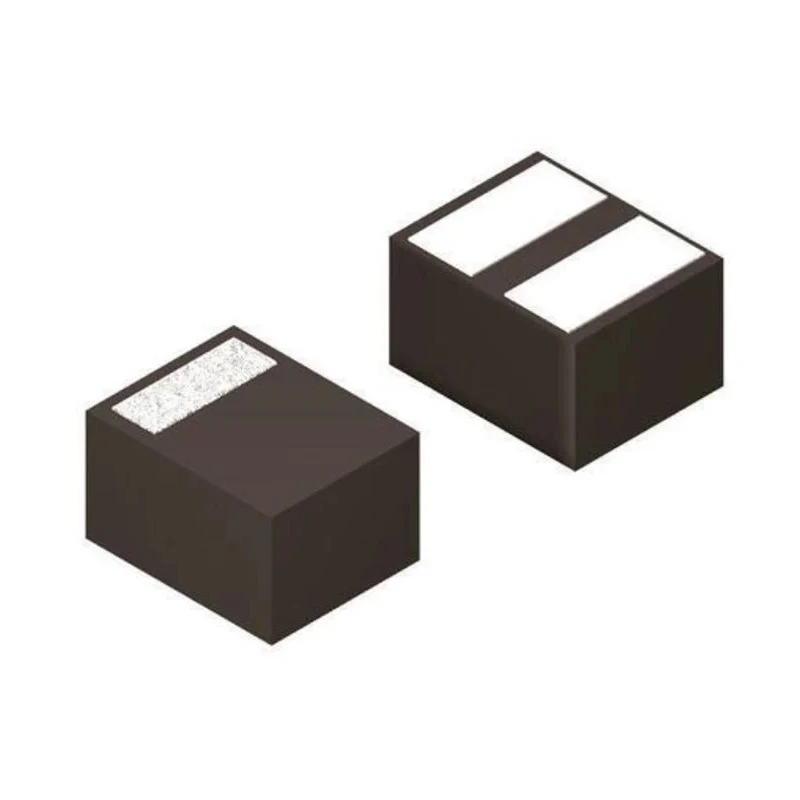

Semtech 1-Element Bi-Directional TVS Diode 90 W 2-Pin SLP EP UCLAMP3311P.TCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semtech |
| Height | 0.47mm |
| Length | 1mm |
| Model | UCLAMP3311P.TCT |
| Width | 0.6mm |
| Mount Type | Surface |
| Series | uCLAMP |
| Maximum Operating Temperature | 85°C |
| Package Type | SLP EP |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 691-0697Brand: SemtechManufacturers Part No.: UCLAMP3311P.TCT |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 18V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Peak Pulse Power Dissipation Pppm | 90W |
| Maximum Peak Pulse Current Ippm | 5A |
| Maximum Reverse Leakage Current | 500nA |
Key Features
- Single diode configuration designed for bi-directional transient voltage suppression.
- Compact package size of 1.0 mm length, 0.6 mm width, and 0.47 mm height for surface mounting.
- Maximum reverse stand-off voltage of 3.3 V and clamping voltage of 18 V for effective protection.
- Peak pulse current capacity of 5 A with low leakage current of 500 nA.
- Operating temperature range from -40°C to 85°C suitable for various industrial applications.
- ESD protection compliant for IEC 61000-4-2 ±15kV (air) and ±8kV (contact).
- Ideal for protecting sensitive electronics in mobile phones, notebooks, desktops, servers, and laser diode inputs.
Product Description
Semtech UCLAMP3311P.TCT is a 1-element bi-directional transient voltage suppressor (TVS) diode engineered for data line protection and ESD suppression in compact industrial electronic assemblies. This TVS diode offers a peak pulse power rating of 90 W with a 2-pin SLP EP surface mount package measuring 1.0 mm by 0.6 mm by 0.47 mm, making it suitable for high-density PCB applications.
The device features a maximum reverse stand-off voltage of 3.3 V and a clamping voltage of 18 V, safeguarding circuits against overvoltage transients effectively. Its peak pulse current capacity is rated at 5 A with a low reverse leakage current of 500 nA, ensuring minimal impact on circuit operation during normal conditions. Operating reliably across a temperature range of -40°C to 85°C, it meets industrial environment requirements.
Designed with ultraminiature dimensions, the UCLAMP3311P.TCT diode is particularly ideal for portable electronic devices such as mobile phones, accessories, notebooks, desktops, servers, and laser diode protection circuits. The μClamp™ transient voltage suppressor series leverages solid-state silicon avalanche technology, guaranteeing robust ESD and transient performance conforming to IEC 61000-4-2 standards.
The compact SLP EP package facilitates efficient PCB layout and thermal management. Semtech's μClamp™ product family enhances device reliability in diverse industrial, laboratory, and commercial electronics applications.
Single element bi-directional surface mount transient voltage suppressor diode. Compact 2-pin SLP EP package of 1.0 x 0.6 x 0.47 mm dimensions. Peak pulse power dissipation of 90 W with 5 A peak pulse current. Maximum reverse stand-off voltage of 3.3 V and clamping voltage of 18 V.
Low reverse leakage current of 500 nA ensures minimal device impact. Wide operating temperature range from -40°C to 85°C. Compliant with IEC 61000-4-2 ESD, IEC 61000-4-4 EFT, and Cable Discharge Event standards. Ideal for portable, communication, computing, and laser diode protection applications.
Explore the Electronics & Electricals TVS Diodes category for more high-performance semiconductor protection devices ideal for industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the UCLAMP3311P.TCT is rated at 90 W.
This model has dimensions of 1.0 mm in length, 0.6 mm in width, and 0.47 mm in height.
The maximum reverse stand-off voltage for this diode is 3.3 V.
The clamping voltage of the UCLAMP3311P.TCT is 18 V.
This unit has a peak pulse current capacity of 5 A.
The operating temperature range is from -40°C to 85°C.
The maximum reverse leakage current is 500 nA.
The UCLAMP3311P.TCT has a single element configuration.
This model is designed for surface mounting.
Yes, it is compliant with IEC 61000-4-2 ESD standards, providing protection against ±15kV (air) and ±8kV (contact).
This diode is ideal for protecting sensitive electronics in mobile phones, notebooks, desktops, servers, and laser diode inputs.
The UCLAMP3311P.TCT belongs to the μClamp™ series of transient voltage suppressors.
