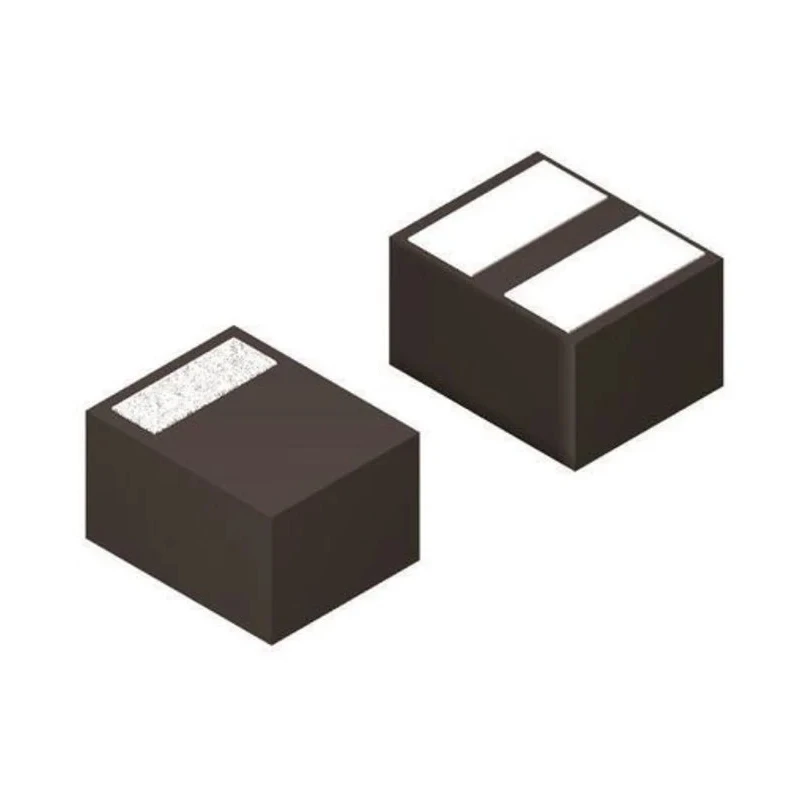

Semtech 1-Element Bi-Directional TVS Diode, Surface Mount SLP EP Package, 90W, 3.3V Reverse Stand-off Voltage UCLAMP3311P.TCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semtech |
| Height | 0.47mm |
| Length | 1mm |
| Model | UCLAMP3311P.TCT |
| Width | 0.6mm |
| Mount Type | Surface |
| Series | uCLAMP |
| Maximum Operating Temperature | 85°C |
| Package Type | SLP EP |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 691-0697PBrand: SemtechManufacturers Part No.: UCLAMP3311P.TCT |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 18V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Peak Pulse Power Dissipation Pppm | 90W |
| Maximum Peak Pulse Current Ippm | 5A |
| Maximum Reverse Leakage Current | 500nA |
Key Features
- Bi-directional diode configuration providing transient voltage suppression.
- Maximum reverse stand-off voltage of 3.3V for precise voltage clamping.
- Supports a peak pulse current of 5A for robust ESD protection.
- Compact size of 1mm length, 0.6mm width, and 0.47mm height for space-saving PCB designs.
- Operating temperature range from -40°C to 85°C suitable for various environments.
- Utilizes solid-state silicon avalanche technology with low leakage current of 500nA.
- Ideal for portable applications including mobile phones, notebooks, desktops, servers, and laser diode protection.
- Single element per chip ensuring reliability in overvoltage surge suppression.
Product Description
Semtech UCLAMP3311P.TCT 1-Element Bi-Directional TVS Diode provides effective transient voltage suppression with a peak pulse power dissipation rating of 90W. This device is engineered for protecting sensitive electronics against electrostatic discharges (ESD) and transient surges, making it ideal for industrial, telecommunications, computing, and consumer electronics applications.
Featuring a compact 2-pin Surface Mount SLP EP package measuring just 1 mm in length, 0.6 mm in width, and 0.47 mm in height, the diode enables high-density PCB layouts particularly useful in portable devices such as mobile phones, laptops, desktop computers, and servers. The bi-directional configuration ensures protection from both positive and negative transient events.
The diode exhibits a maximum reverse stand-off voltage of 3.3V, clamping voltage of 18V, and can support a peak pulse current of 5A. Its low maximum reverse leakage current of 500nA contributes to energy efficiency in sensitive electronic circuits. Semtech’s solid-state silicon avalanche technology further assures reliable and consistent performance under surge conditions.
The device is rated for operation between -40°C and 85°C, suited to diverse environments from consumer electronics to demanding industrial settings.
Typical applications include transient voltage protection for data lines, laser diode protection, and analog input safeguard in mobile phones, computers, and server systems, as well as other portable and stationary electronic devices.
Package Contents: Single 1-Element Bi-Directional TVS Diode in 2-pin SLP EP package per unit. Suitable for automated placement and PCB integration to enhance product lifespan and reliability.
Explore the complete range of Semtech TVS Diodes on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this model is 3.3V.
It has a peak pulse power dissipation rating of 90W.
The clamping voltage for this diode is 18V.
This unit can support a maximum peak pulse current of 5A.
The dimensions of the SLP EP package are 1mm in length, 0.6mm in width, and 0.47mm in height.
It operates within a temperature range of -40°C to 85°C.
This diode features a single element per chip.
It utilizes a bi-directional diode configuration for transient voltage suppression.
The maximum reverse leakage current is 500nA.
This model is suitable for transient voltage protection in mobile phones, notebooks, desktops, servers, and laser diode protection.
It supports surface mounting, making it suitable for high-density PCB layouts.
It utilizes solid-state silicon avalanche technology for reliable performance under surge conditions.
