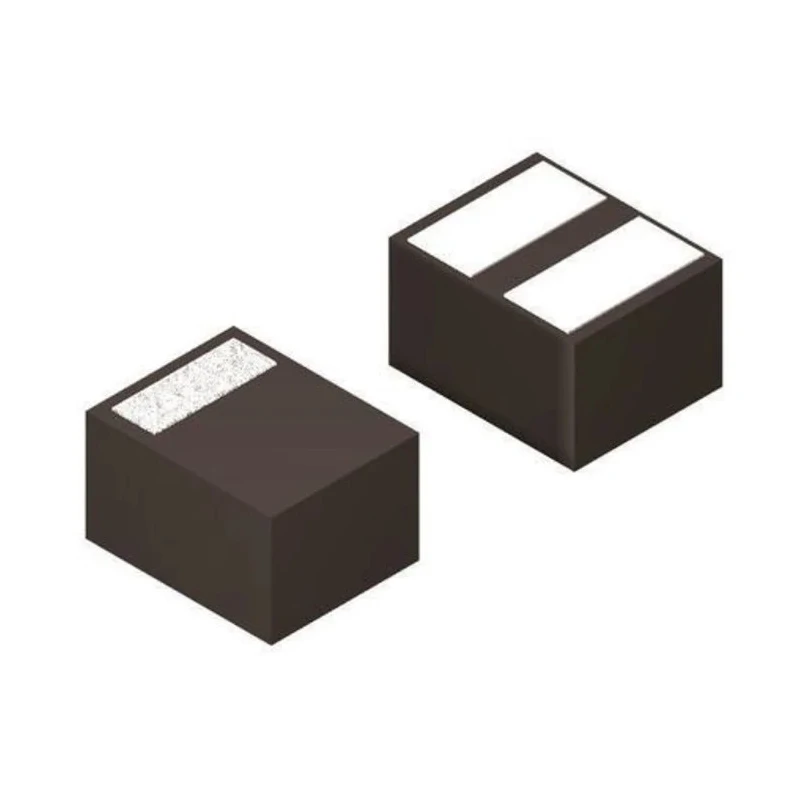

Semtech 1-Element Uni-Directional TVS Diode 200W 2-Pin SLP EP UCLAMP1201P.TCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semtech |
| Height | 0.47mm |
| Length | 1mm |
| Model | UCLAMP1201P.TCT |
| Width | 0.6mm |
| Mount Type | Surface |
| Series | uCLAMP |
| Maximum Operating Temperature | 125°C |
| Package Type | SLP EP |
| Minimum Operating Temperature | -55°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 691-0694PBrand: SemtechManufacturers Part No.: UCLAMP1201P.TCT |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 25V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 13.3V |
| Maximum Reverse Stand-off Voltage Vwm | 12V |
| Peak Pulse Power Dissipation Pppm | 200W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 8A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Uni-directional diode configuration ensures effective protection against voltage transients.
- Surface mount type with ultra-small dimensions of 1.0 x 0.6 x 0.47 mm.
- Supports a minimum breakdown voltage of 13.3 V and maximum reverse stand-off voltage of 12 V.
- Peak pulse current capability of 8 A with clamping voltage at 25 V for robust ESD protection.
- Operates within a temperature range of -55°C to 125°C for versatile application environments.
- Ideal for portable electronics, laser diode protection, and analogue input safeguarding.
- Employs solid-state silicon-avalanche technology for low leakage current and fast response.
- Complies with IEC 61000-4-2 standards for ESD and IEC 61000-4-4 for EFT protection.
Product Description
Semtech UCLAMP1201P.TCT is a 1-element uni-directional transient voltage suppressor (TVS) diode designed for protecting sensitive electronic components from damaging voltage spikes. With a peak pulse power dissipation rating of 200 W and a compact 2-pin SLP EP surface mount package, it offers high reliability and efficiency in a small footprint, measuring just 1.0 mm in length, 0.6 mm in width, and 0.47 mm in height.
This TVS diode features a minimum breakdown voltage (Vbr) of 13.3 V and a maximum reverse stand-off voltage (Vwm) of 12 V, making it suitable for protecting circuits against overvoltage conditions up to these limits. The device can handle peak pulse currents (Ippm) of up to 8 A and exhibits a low maximum reverse leakage current of 1 μA, ensuring minimal power loss during normal operation.
Designed with solid-state silicon-avalanche technology, the uClamp series offers fast response times and low leakage currents, optimal for electronic devices requiring transient voltage protection such as mobile phones, notebooks, desktop systems, servers, and equipment with laser diodes or analogue inputs.
Uni-directional diode configuration for targeted voltage suppression. Complies with IEC 61000-4-2 standards providing ESD protection up to ±15 kV (air) and ±8 kV (contact). Effective protection against electrical fast transient (EFT) up to 40 A (tp = 5/50 ns).
Compact surface mount device enables efficient use of PCB space. Operates reliably from -55°C to 125°C. Ideal for portable and compact electronics with high transient voltage exposure. Solid-state technology for durability and stability.
It offers an essential protective component for industrial electronics, semiconductor manufacturing, telecommunications, and computing equipment industries. The series is also RoHS compliant, supporting environmentally responsible design.
Explore more TVS diode solutions and Semtech products in the Electronics & Electricals category at EnvMart.
Explore more products in our TVS Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of this model is 200 W.
This unit has dimensions of 1.0 mm in length, 0.6 mm in width, and 0.47 mm in height.
The minimum breakdown voltage (Vbr) for this diode is 13.3 V.
The maximum reverse stand-off voltage (Vwm) is 12 V.
It can handle peak pulse currents of up to 8 A.
The clamping voltage (VC) is 25 V.
The operating temperature range is from -55°C to 125°C.
This model uses a surface mount type for installation.
The maximum reverse leakage current is 1 μA.
It complies with IEC 61000-4-2 for ESD protection and IEC 61000-4-4 for EFT protection.
The diode configuration is uni-directional, designed for effective voltage suppression.
This diode is ideal for protecting portable electronics, laser diodes, and analogue inputs.
