Semtech 1-Element Bi-Directional TVS Diode 350W 2-Pin SOD-323 SD05C.TCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semtech |
| Height | 1mm |
| Length | 1.8mm |
| Model | SD05C.TCT |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | SD05C |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 14.5V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 350W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 24A |
| Maximum Reverse Leakage Current | 10μA |
Key Features
- Designed for transient voltage suppression on data and power lines.
- Features a single diode element with bi-directional protection.
- Minimum breakdown voltage of 6V with a maximum reverse stand-off voltage of 5V.
- Clamping voltage is rated at 14.5V to protect sensitive electronics.
- Operates over a temperature range of -55°C to 125°C ensuring reliability.
- Peak pulse current capacity of 24A with ESD protection up to ±15kV air discharge.
- Compact dimensions of 1.8mm length, 1.4mm width, and 1mm height for surface mounting.
- Suitable for industrial, laboratory, electronics manufacturing, and automotive transient protection applications.
Product Description
Semtech SD05C.TCT is a 1-element bi-directional Transient Voltage Suppressor (TVS) diode designed for protecting sensitive electronic circuits from voltage spikes and electrostatic discharge (ESD). It offers a peak pulse power dissipation of 350 W and comes in a compact 2-pin SOD-323 surface-mount package. This diode is particularly suited for transient protection in data lines and power circuits where robust and reliable suppression is essential.
The device operates with a minimum breakdown voltage of 6V and a maximum reverse stand-off voltage of 5V, clamping at 14.5V to limit voltage surges and protect components downstream. It offers a peak pulse current of 24A and supports Electrostatic Discharge protection compliant with IEC 61000-4-2 standards up to ±15kV air discharge, ±8kV contact discharge, and transient immunity to EFT and lightning surges.
With operating temperatures ranging from -55°C to 125°C, the SD05C.TCT diode ensures durability and consistent performance in harsh industrial and commercial environments. Its small footprint (1.8mm length x 1.4mm width x 1mm height) makes it ideal for compact PCB layouts in telecommunications, automotive electronics, industrial controls, and consumer devices.
Single element, bi-directional TVS diode for transient protection. 350 W peak pulse power handling capability. SOT-323 surface-mount package with 2 pins for easy installation. Meets industry standards for ESD, EFT, and lightning surge protection.
Wide operating temperature range ensures reliable performance.
This Semtech TVS diode is widely used in industrial, laboratory, electronics manufacturing, HVAC, and automotive sectors to safeguard delicate electronic components against sudden voltage spikes, improving product longevity and reliability.
Explore more options in TVS Diodes and other discrete semiconductors at EnvMart for your industrial and electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Semtech SD05C.TCT TVS diode is 350 W.
The clamping voltage for the SD05C.TCT is rated at 14.5V.
This diode operates over a temperature range of -55°C to 125°C.
The maximum reverse stand-off voltage for this model is 5V.
The minimum breakdown voltage of this diode is 6V.
The maximum peak pulse current capacity of this diode is 24A.

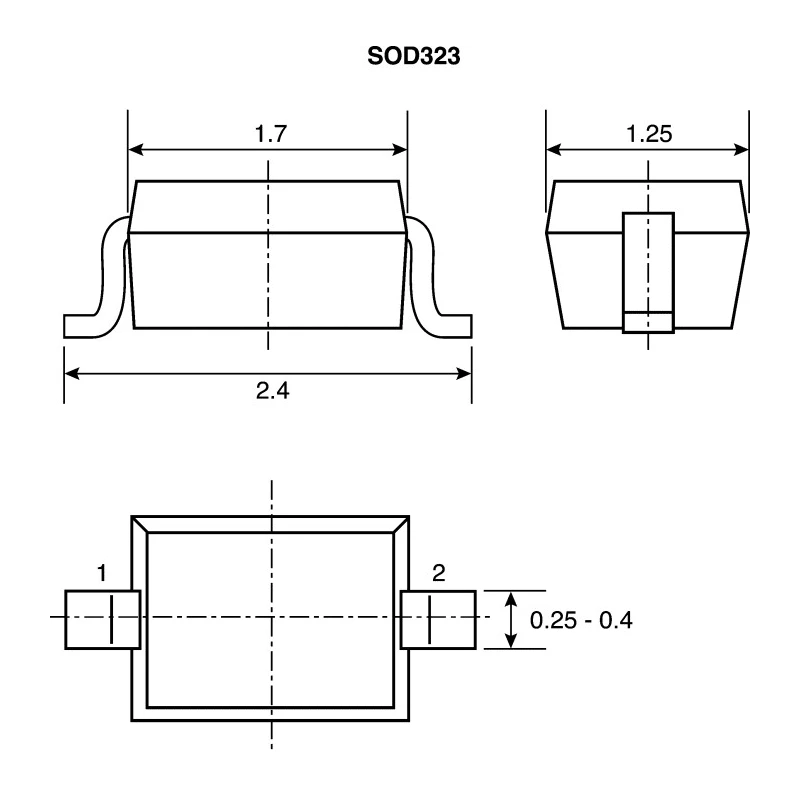

The dimensions of the SOD-323 package are 1.8mm in length, 1.4mm in width, and 1mm in height.
The SD05C.TCT supports surface mounting.
This model is suitable for transient protection in industrial, laboratory, electronics manufacturing, and automotive applications.
This diode provides ESD protection compliant with IEC 61000-4-2 standards, supporting ±15kV air discharge and ±8kV contact discharge.
The SD05C.TCT features a single element configuration.
The maximum reverse leakage current for this diode is 10μA.
