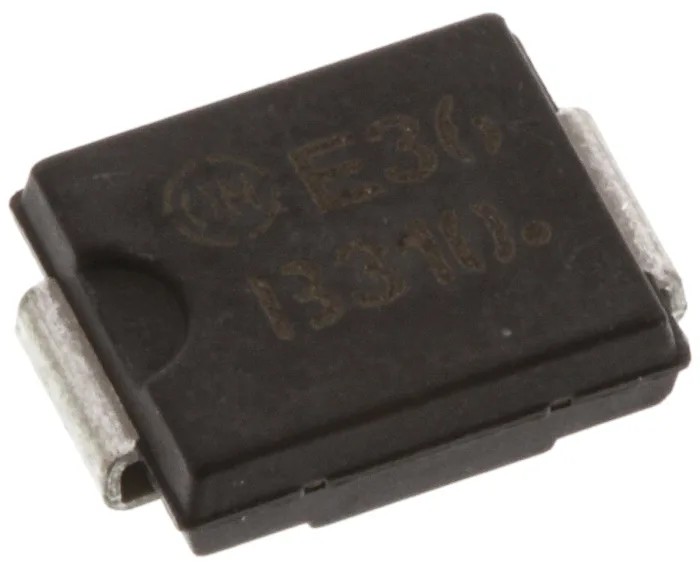

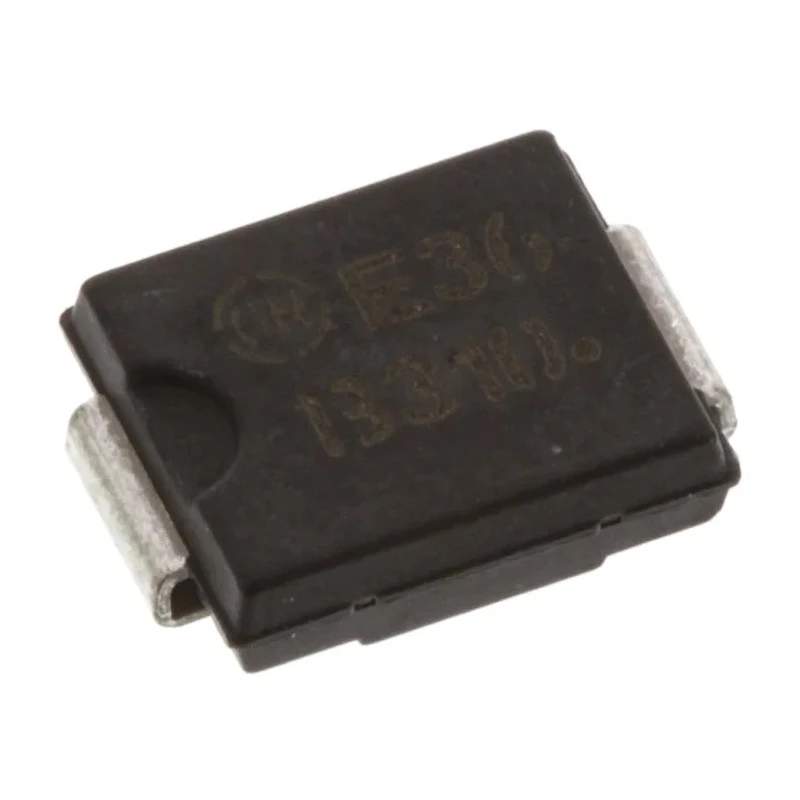

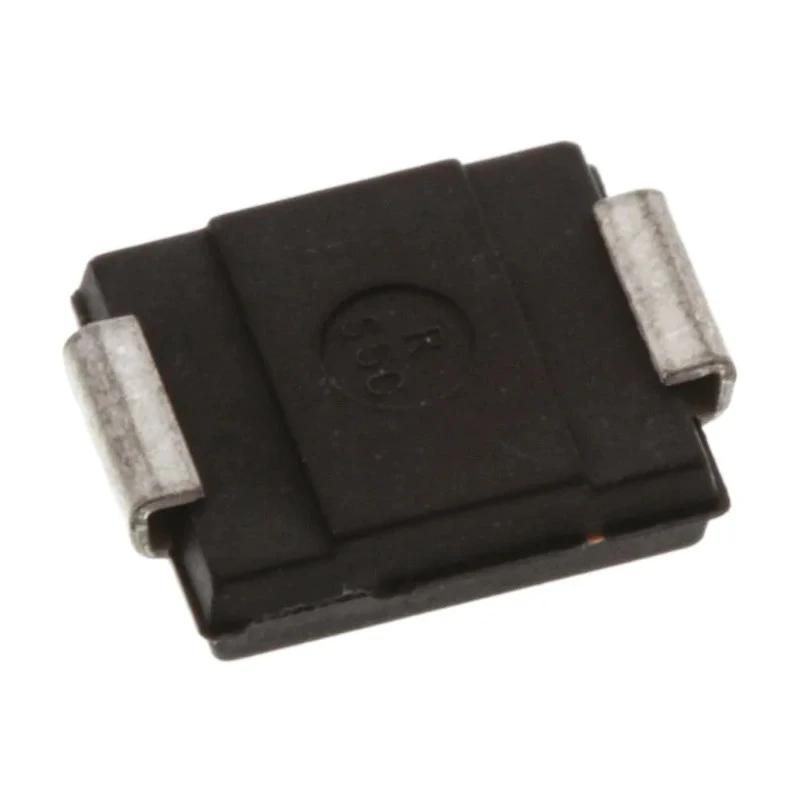

onsemi 100 V 3 A Surface Mount Schottky Diode DO-214AB Package MBRS3100T3G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 100 V 3 A Surface Mount Schottky Diode DO-214AB Package MBRS3100T3G

Name: onsemi 100 V 3 A Surface Mount Schottky Diode DO-214AB Package MBRS3100T3G
Brand: onsemi
SKU: 350731
Price: 0.51 USD
Availability: InStock



Category Schottky Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.13mm
Length	6.86mm
Model	MBRS3100T3G
Width	5.84mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	DO-214AB (SMC)
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	3A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	130A
Maximum Forward Voltage Vf	790mV

Key Features

Schottky barrier diode providing low forward voltage drop and minimal reverse leakage current.
Surface mount device with compact DO-214AB (SMC) package suitable for automated assembly.
Maximum continuous forward current of 3 A with peak reverse repetitive voltage of 100 V.
High surge current capability of 130 A peak non-repetitive forward surge current.
Wide operating temperature range from -65°C to 175°C for robust performance.
Compliant with RoHS and AEC-Q101 automotive standards ensuring environmental and quality reliability.
Lightweight epoxy molded case designed for efficient thermal and mechanical performance.
Typical maximum forward voltage of 790 mV to minimize power loss in circuits.

Product Description

onsemi MBRS3100T3G is a high-quality Schottky diode optimized for surface mount technology applications. Its DO-214AB package enables compact installations with reliable mechanical and thermal stability. The device supports up to 3 A continuous forward current and can block reverse voltages up to 100 V, making it suitable for power management, rectification, and switching applications in electronic circuits.

This diode operates efficiently at high frequencies and is well-suited for low voltage, high frequency rectification as well as freewheeling and polarity protection. The Schottky barrier construction ensures low forward voltage drop and reduced reverse current, improving circuit energy efficiency and reliability.

With an extended operating temperature range from -65°C to 175°C and peak surge currents up to 130 A, this diode guarantees durability under demanding industrial, automotive, and consumer electronics environments. The package meets RoHS compliance and the AEC-Q101 automotive quality standard, assuring environmental safety and high performance in automotive applications.

The compact, lightweight epoxy molded case weighing approximately 11.7 mg protects the diode while maintaining minimal overall system weight and size. Typical forward voltage is 790 mV, offering power savings and lower heat generation in high-efficiency designs.

Schottky barrier diode technology offers low forward voltage and reverse leakage. Surface mount DO-214AB package suitable for automated PCB assembly. Continuous forward current rating of 3 A for power applications. Peak reverse voltage protection up to 100 V for robust circuit safety.

Wide operating temperature range ensures use in industrial and automotive environments. Compliant with RoHS and automotive standard AEC-Q101 for quality assurance. Epoxy molded case for mechanical protection and thermal efficiency.

Compact dimensions and weight support lightweight and space-saving designs. Ideal for power rectification, freewheeling diodes, and polarity protection.

This onsemi Schottky Diode is commonly used in industrial electronics, automotive electronic control units, power supplies, and other applications requiring reliable rectification and protection.
