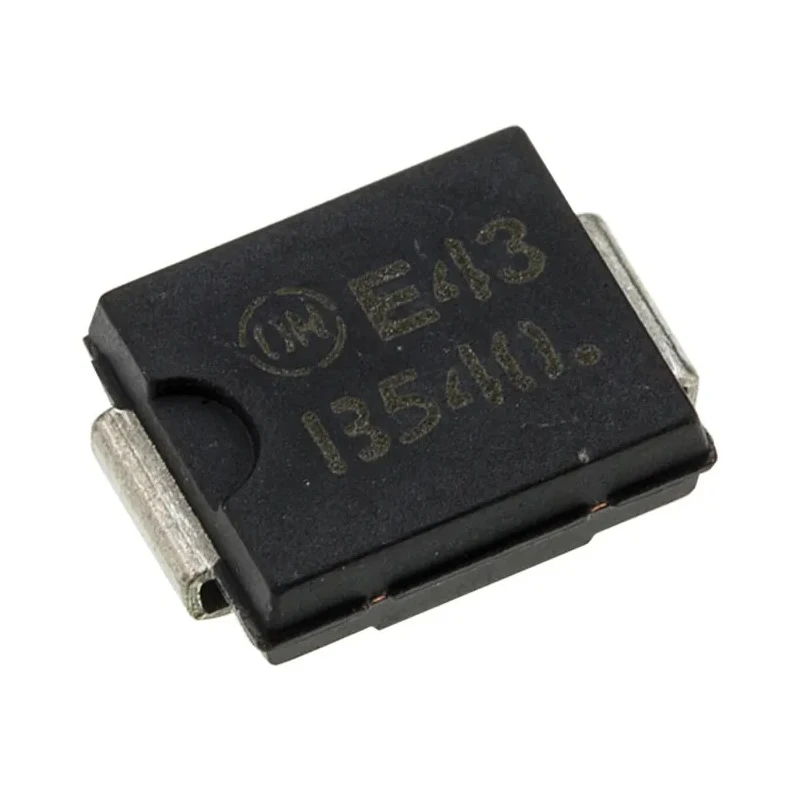

onsemi 40 V 5 A Schottky Diode Single Rectifier 2-Pin DO-214AB MBRS540T3G

onsemi MBRS540T3G is a Schottky barrier diode designed for efficient power rectification in electronic circuits. It supports a maximum continuous forward current of 5 amperes and a peak reverse repetitive voltage of 40 volts, delivered in a compact, surface mount DO-214AB package.

This diode utilizes the Schottky barrier principle to achieve a low forward voltage drop and reduced reverse current, optimizing performance in low voltage and high-frequency switching applications. Its wide operating temperature range from -65°C to 150°C and adherence to the AEC-Q101 automotive standard make it suitable for automotive and industrial use.

The compact physical dimensions of 6.86 mm length, 5.84 mm width, and 2.13 mm height facilitate space-efficient PCB designs, while the epoxy moulded case ensures environmental protection and durability.

The diode’s peak non-repetitive surge current is rated at 190 amperes, ensuring reliability under transient load conditions. Its lightweight packaging supports automated assembly and cost-effective manufacturing processes.

This device is ideal for applications requiring polarity protection, freewheeling diode functions, and efficient power management in consumer electronics, industrial machinery, and automotive electronics.

The diode features low forward voltage drop enabling high efficiency power rectification. It offers excellent switching performance with a peak reverse repetitive voltage of 40 V. This device operates reliably between -65°C to 150°C making it suitable for automotive applications.

Packaging is surface mount type ensuring optimal automated board assembly compatibility. The compact dimensions (6.86 mm length, 5.84 mm width, 2.13 mm height) support space-saving circuit designs. Compliance with RoHS and AEC-Q101 automotive standards ensures quality and environmental safety.

Peak forward surge current capability up to 190 A enhances transient robustness. Suitable for low voltage, high-frequency rectification and polarity protection applications. Epoxy moulded case and lightweight design enhance durability and ease of use.

For industries and engineers looking for a reliable, high-efficiency Schottky Diode, the onsemi MBRS540T3G is a robust choice that meets automotive and industrial demands. Explore more semiconductor components and diodes under the Semiconductor category at EnvMart.
