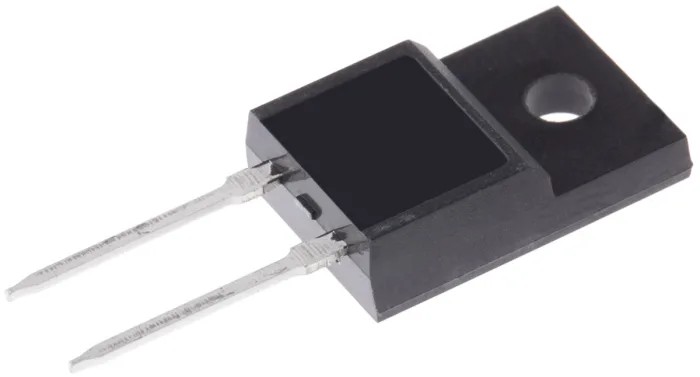

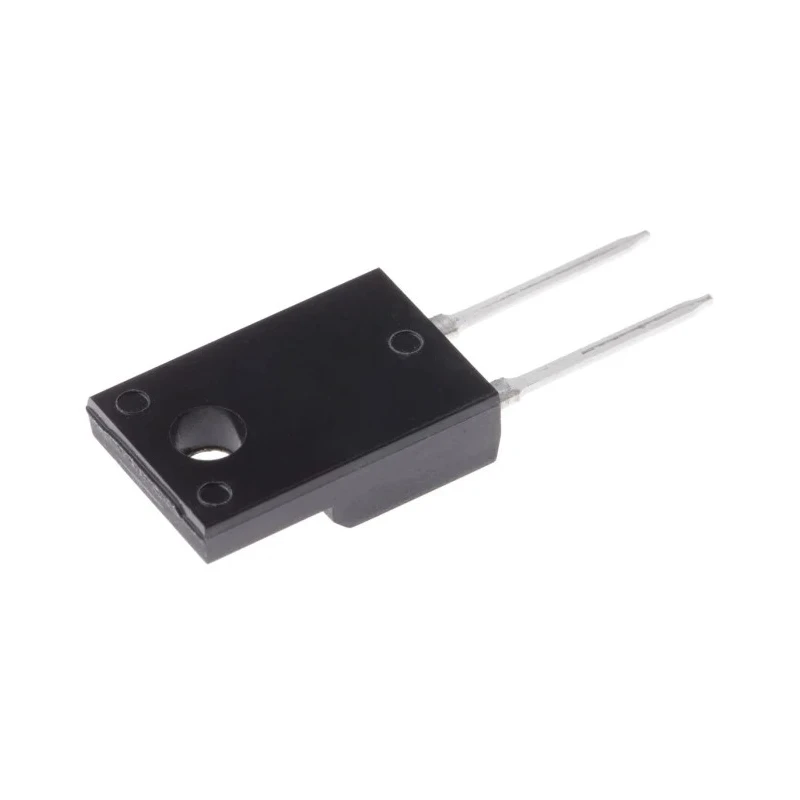

STMicroelectronics 45 V 7.5 A Schottky Diode Single Rectifier Through Hole TO-220 STPS745FP

STMicroelectronics STPS745FP is a high-performance Schottky diode designed for electronic and industrial semiconductor applications. It is packaged in a through-hole TO-220 type, providing robust mechanical stability and ease of mounting on printed circuit boards.

This diode features a maximum continuous forward current rating of 7.5 A, making it suitable for power rectification and high-current switching circuits. The diode can withstand a peak reverse repetitive voltage of 45 V, protecting circuits from voltage spikes and reverse polarity damage.

The STPS745FP offers a low forward voltage drop of 0.5 V, reducing power losses and improving energy efficiency in power supplies and converters. Its single diode configuration makes it ideal for various rectifier and freewheeling diode applications.

Operating reliably within a wide temperature range from -65°C to 175°C, this diode is suited for demanding environments requiring robustness and temperature tolerance. The peak non-repetitive forward surge current of 150 A provides additional durability against short-term transient events.

Compact dimensions of 10.4 mm (length), 9.3 mm (height), and 4.6 mm (width) in the TO-220 package make it adaptable to various assembly needs. However, this model does not comply with automotive standards and is recommended primarily for industrial electronics, power supplies, battery chargers, and other semiconductor-related applications.

Through hole mount type for easy PCB assembly. Maximum continuous forward current of 7.5 A. Peak reverse repetitive voltage of 45 V. Low forward voltage drop of 0.5 V for efficient switching. Wide operating temperature range from -65°C to +175°C.

Compact TO-220 package with dimensions 10.4 mm length, 9.3 mm height, and 4.6 mm width. Single diode configuration suitable for rectifier applications. Peak non-repetitive forward surge current of 150 A. Peak reverse current is 100 μA, ensuring low leakage.

No automotive grade standard, intended for industrial and electronic component applications.

This Schottky diode is a reliable choice for power rectification and electronic circuit protection in industrial, manufacturing, power electronics, and semiconductor system designs. Browse the electronics and semiconductor categories on EnvMart for more components from STMicroelectronics.
