| Country of Origin | India |
|---|---|
| Diameter | 1.59mm |
| Brand | STMicroelectronics |
| Height | 1.62mm |
| Length | 3.4mm |
| Model | TMMBAT42FILM |
| Width | 1.62mm |
| Mount Type | Surface |
| Series | TMMBAT42 |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniMELF |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 5ns |

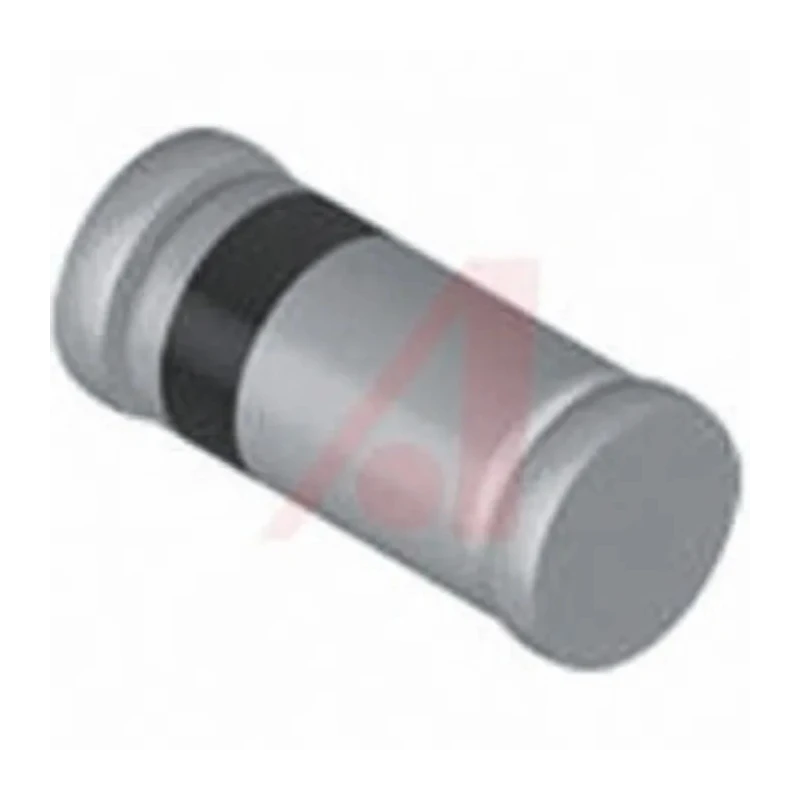

STMicroelectronics TMMBAT42FILM is a high-efficiency surface mount Schottky diode in a compact MiniMELF package. It features a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage rating of 30 V. This device is ideal for applications requiring low forward voltage drop and fast switching speed.
The diode's peak non-repetitive forward surge current capability of 4 A allows it to withstand transient surges effectively, making it suitable for robust industrial and electronic applications. Its operating temperature range from -65°C to 125°C ensures reliable performance under harsh conditions.
The MiniMELF package measures approximately 3.4 mm in length, 1.62 mm in width and height, with a diameter of 1.59 mm, allowing space-saving PCB design. The Schottky diode offers a very low forward voltage (1 V max) and a peak reverse recovery time of 5 ns, which is optimal for switching power supplies and voltage clamping circuits.
The TMMBAT42FILM diode is RoHS compliant, supporting environmental regulations. Surface mount diode designed for efficient switching applications. Maximum continuous forward current of 200 mA ensures reliable performance.
Peak reverse repetitive voltage of 30 V suitable for low voltage circuits. Low forward voltage drop of 1 V for energy efficiency. Compact MiniMELF package with 2 pins for easy PCB integration. High peak non-repetitive forward surge current of 4 A for transient tolerance.
Operating temperature range from -65°C to 125°C for industrial environments. Fast reverse recovery time of 5 ns for high-speed switching. RoHS compliant ensuring environmental safety. Pin count of 2 with single diode configuration in the TMMBAT42 series.
This diode is widely used in electronic component assemblies within industrial, consumer electronics, power management, and semiconductor manufacturing sectors. Its specifications meet demanding requirements for efficiency and durability in switching and rectification circuits.
EnvMart offers comprehensive listings of Schottky diodes including the TMMBAT42FILM, enabling engineers and technicians to source quality components for their designs and repairs.
Explore more products in our Schottky Diodes & Rectifiers category.
