| Country of Origin | India |
|---|---|
| Diameter | 1.59mm |
| Brand | STMicroelectronics |
| Height | 1.62mm |
| Length | 3.4mm |
| Model | TMMBAT42FILM |
| Width | 1.62mm |
| Mount Type | Surface |
| Series | TMMBAT42 |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniMELF |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 5ns |

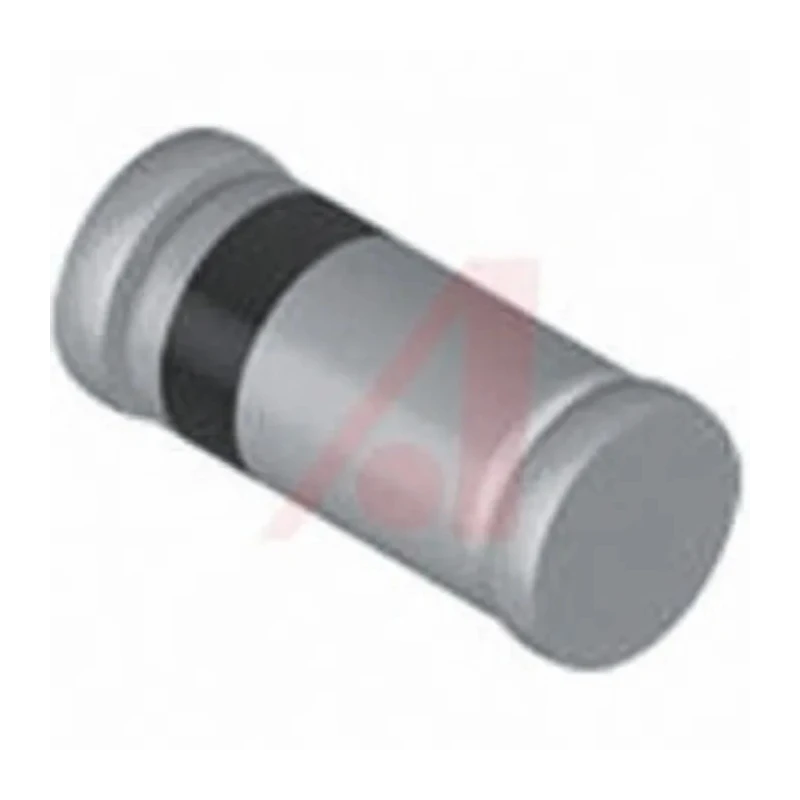

STMicroelectronics TMMBAT42FILM Schottky Diode is a high performance 30 V, 200 mA diode in a 2-pin MiniMELF surface mount package. This Schottky barrier diode features a low forward voltage drop of 1 V and a peak reverse current of only 500 nA, making it suitable for efficient power rectification and switching applications.
The diode supports maximum continuous forward current of 200 mA with a peak non-repetitive forward surge current of 4 A, enabling stable performance under transient conditions. It operates reliably across a wide temperature range from -65°C up to 125°C, making it suitable for industrial and commercial electronic circuits.
Its compact MiniMELF package has dimensions of 3.4 mm length, 1.62 mm width and height, and 1.59 mm diameter. The device is RoHS compliant, ensuring it meets environmental and safety standards.
Typical use cases include power management, switching circuits, rectification in electronic devices, and discrete semiconductor applications in industrial, commercial, and laboratory environments.
Maximum continuous forward current of 200 mA for reliable operation. Peak reverse repetitive voltage rated at 30 V for robust performance. Single Schottky diode configuration with low forward voltage of 1 V. Low leakage current with peak reverse current of 500 nA.
Peak non-repetitive forward surge current of 4 A for transient conditions. Operating temperature range from -65°C to 125°C. Compact MiniMELF surface mount package dimensions 3.4 x 1.62 x 1.62 mm. RoHS compliant for environmental safety and compliance.
Suitable for discrete semiconductor and power rectification applications. Ideal for industrial, commercial, and laboratory use cases. Explore more Schottky Diodes and rectifiers from STMicroelectronics on EnvMart for your semiconductor and electronic component needs.
