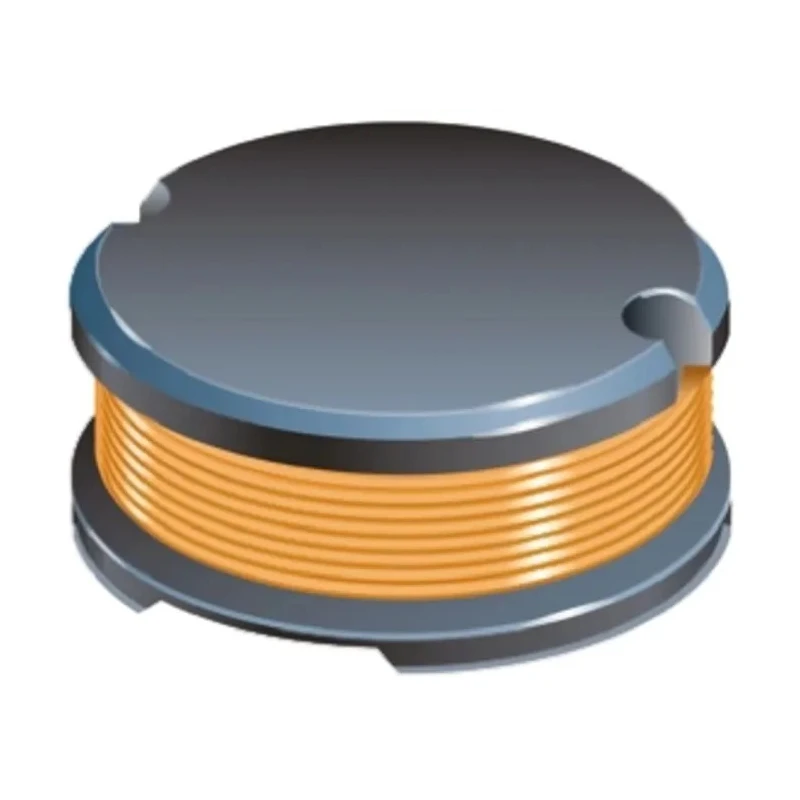

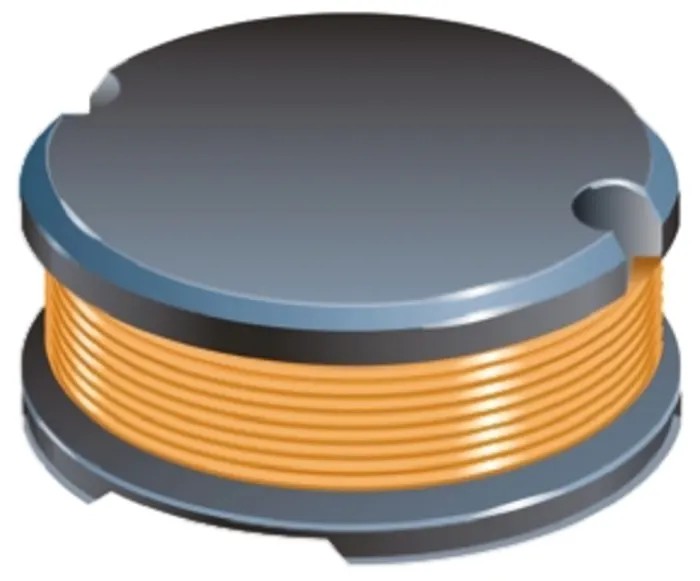

Bourns 22 μH ±15% 1.1 A Idc Wirewound Surface Mount Inductor with Ferrite DR Core SDR0604
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.8mm |
| Brand | Bourns |
| Height | 4.8mm |
| Length | 5.8mm |
| Model | SDR0604 |
| Depth | 5.8mm |
| Packaging | Reel |
| Series | SDR0604 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 0604 |
| Maximum DC Current | 1.1A |
| Maximum DC Resistance | 190mΩ |
| Inductance Tolerance | ±15 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 16MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
Key Features
- This inductor uses a wirewound construction with a ferrite DR core for enhanced magnetic performance.
- The device comes in a compact 0604 package case with dimensions approximately 5.8 mm diameter and 4.8 mm height.
- It is designed for surface mount termination style and is RoHS compliant, ensuring environmental safety.
- Operating temperature ranges from -40°C to 125°C, suitable for various industrial and electronic applications.
- With a maximum DC resistance of 190 mΩ and a quality factor minimum of 30, it ensures efficiency in signal filtering and power supply circuits.
- The inductor features a maximum self-resonant frequency of 16 MHz, making it ideal for high-frequency applications.
- Packaged on a reel for high-volume manufacturing and automated assembly processes.
Product Description
Bourns SDR0604 Wirewound Surface Mount Inductor integrates a ferrite DR core with 22 μH inductance and ±15% tolerance, supporting a maximum DC current of 1.1 A. This inductor is engineered for efficient magnetic performance in compact electronic designs.
Measuring 5.8 mm in diameter, 4.8 mm in height, and packaged in a 0604 case, it is ideal for surface mount technology applications in electronics manufacturing. The device features a wirewound construction that enhances its inductive properties and provides reliable performance.
The operating temperature range between -40°C and 125°C allows this inductor to function reliably in diverse environmental conditions. Its maximum DC resistance of 190 milliohms ensures minimal power loss, while the minimum quality factor of 30 guarantees effective frequency response.
With a maximum self-resonant frequency of 16 MHz, the SDR0604 is suitable for use in power supplies, DC/DC converters, and signal filtering on printed circuit boards. It is fully RoHS compliant, aligning with environmental standards.
The inductor is supplied on reels, which facilitates automatic insertion and mass production workflows in industrial and laboratory settings. This inductor uses a wirewound construction with a ferrite DR core for enhanced magnetic performance.
The device comes in a compact 0604 package case with dimensions approximately 5.8 mm diameter and 4.8 mm height. It is designed for surface mount termination style and is RoHS compliant, ensuring environmental safety. Operating temperature ranges from -40°C to 125°C, suitable for various industrial and electronic applications.
With a maximum DC resistance of 190 mΩ and a quality factor minimum of 30, it ensures efficiency in signal filtering and power supply circuits. The inductor features a maximum self-resonant frequency of 16 MHz, making it ideal for high-frequency applications.
Packaged on a reel for high-volume manufacturing and automated assembly processes.
Suitable for electronics manufacturing industries including industrial automation, telecommunications, power management, and consumer electronics development. This product provides a reliable passive component solution for efficient circuit design.
Explore more about Surface Mount Inductors and related components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SDR0604 inductor has an inductance value of 22 μH with a tolerance of ±15%.
This model supports a maximum DC current of 1.1 A.
The inductor has a diameter of 5.8 mm and a height of 4.8 mm, packaged in a 0604 case.
The maximum DC resistance of this inductor is 190 mΩ.
The operating temperature range for the SDR0604 is from -40°C to 125°C.
The maximum self-resonant frequency of this inductor is 16 MHz.
The SDR0604 uses a ferrite DR core material for enhanced magnetic performance.
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety standards.
The inductor features a wirewound construction, which enhances its inductive properties.
This inductor is packaged on a reel, facilitating automatic insertion and mass production.
The SDR0604 is suitable for use in power supplies, DC/DC converters, and signal filtering on printed circuit boards.
The minimum quality factor of this inductor is 30, ensuring effective frequency response.
