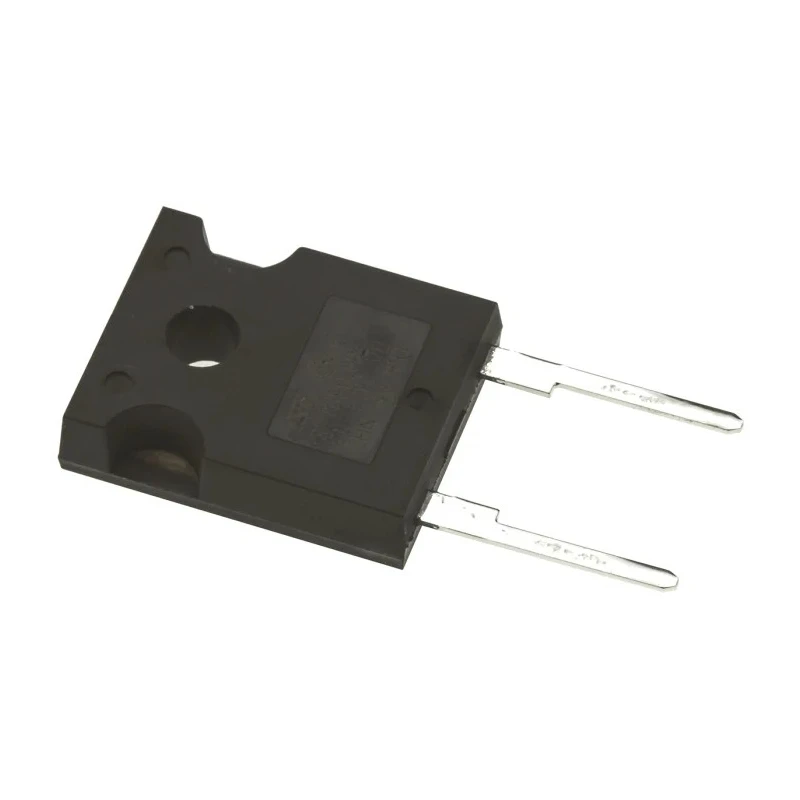

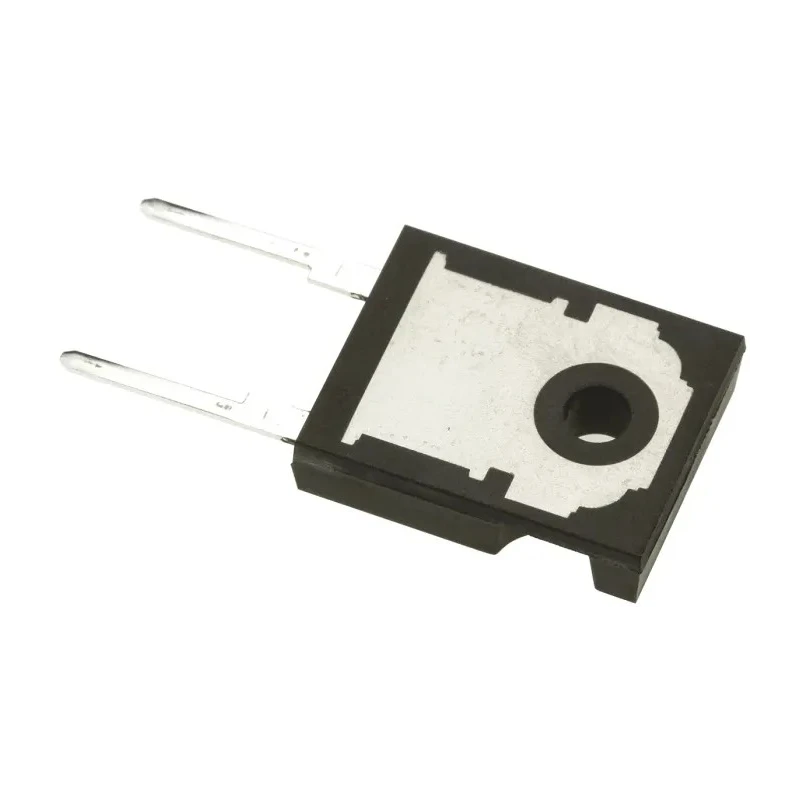

STMicroelectronics 400 V 60 A Diode Switching 2-Pin DO-247 STTH6004W
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.55mm |
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STTH6004W |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STTH |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-247 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600A |
| Maximum Forward Voltage Vf | 1.2V |
| Peak Reverse Recovery Time trr | 90ns |
Key Features
- Designed for through hole mounting in power applications.
- Maximum continuous forward current is 60 A for robust operation.
- Peak reverse repetitive voltage is 400 V to withstand high voltage spikes.
- Low forward voltage drop of 1.2 V to maximize efficiency.
- Fast peak reverse recovery time of 90 ns reduces switching losses.
- Operates reliably over a wide temperature range from -65° C to 175° C.
- Single diode configuration for versatile rectification use.
- Pin count is 2 with a DO-247 package for ease of assembly.
Product Description
STMicroelectronics STTH6004W is a high-performance diode designed for switching applications demanding reliable and efficient rectification at high current and voltage levels. This diode features a maximum continuous forward current rating of 60 A and a peak reverse repetitive voltage of 400 V, making it suitable for power electronics in industrial and commercial environments.
The device is packaged in a robust DO-247 through-hole type, with two pins for secure mounting and ease of integration into power assemblies. Its single diode configuration supports a variety of rectifier circuit designs.
Key performance parameters include a low maximum forward voltage drop of 1.2 V for improved power efficiency and a fast peak reverse recovery time of 90 nanoseconds, which helps to minimize switching losses and electromagnetic interference in switching power supplies.
This diode is rated to operate over a wide temperature range from -65° C to a high maximum of 175° C, ensuring durability under harsh thermal conditions common in industrial applications.
The STTH6004W is engineered for use in rectification circuits within industrial power supplies, battery chargers, welding equipment, motor drives, and other high-power switching applications requiring rugged diode performance and longevity.
Designed for through-hole mounting in power applications. Maximum continuous forward current of 60 A for reliable rectification. Peak reverse repetitive voltage of 400 V suitable for industrial voltages. Low forward voltage drop of 1.2 V for increased efficiency.
Fast peak reverse recovery time of 90 ns to reduce switching losses. Wide operating temperature range from -65° C to 175° C. Single diode configuration for versatile use. Robust DO-247 package for ease of assembly and heat dissipation.
Peak non-repetitive forward surge current of 600 A for transient protection. Compact physical dimensions optimized for PCB layouts. Explore EnvMart’s Semiconductor category for STMicroelectronics diodes and other power components to assist in your industrial and electronic design projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 60 A, allowing for reliable rectification in power applications.
The peak reverse repetitive voltage rating is 400 V, making it suitable for high voltage applications in industrial settings.
The maximum forward voltage drop is 1.2 V, which helps to maximize efficiency in power conversion applications.
The peak reverse recovery time is 90 ns, which reduces switching losses in power supply applications.
It operates reliably over a wide temperature range from -65° C to 175° C, suitable for various industrial conditions.
This model is packaged in a DO-247 type, designed for through-hole mounting, facilitating easy assembly.
The diode features a pin count of 2, which is standard for its configuration.
The peak non-repetitive forward surge current is rated at 600 A, providing transient protection in circuits.
The dimensions are 15.75 mm in length, 5.15 mm in width, and 20.15 mm in height.
It has a single diode configuration, which supports versatile rectification applications.
The peak reverse current is 50 μA, indicating its low leakage characteristics under reverse bias conditions.
This diode is engineered for use in rectification circuits within industrial power supplies, battery chargers, and motor drives.
