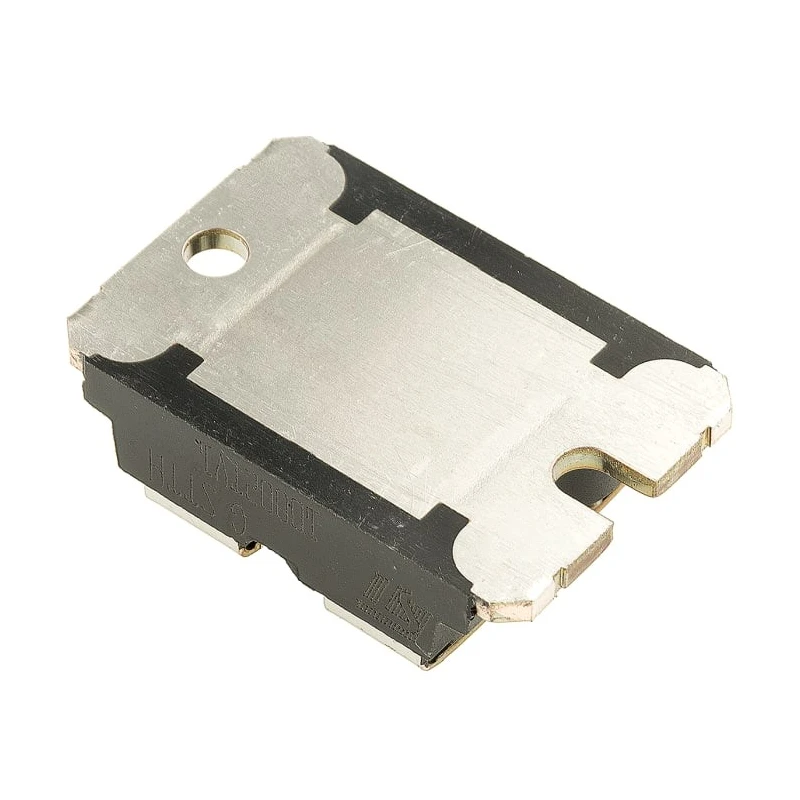

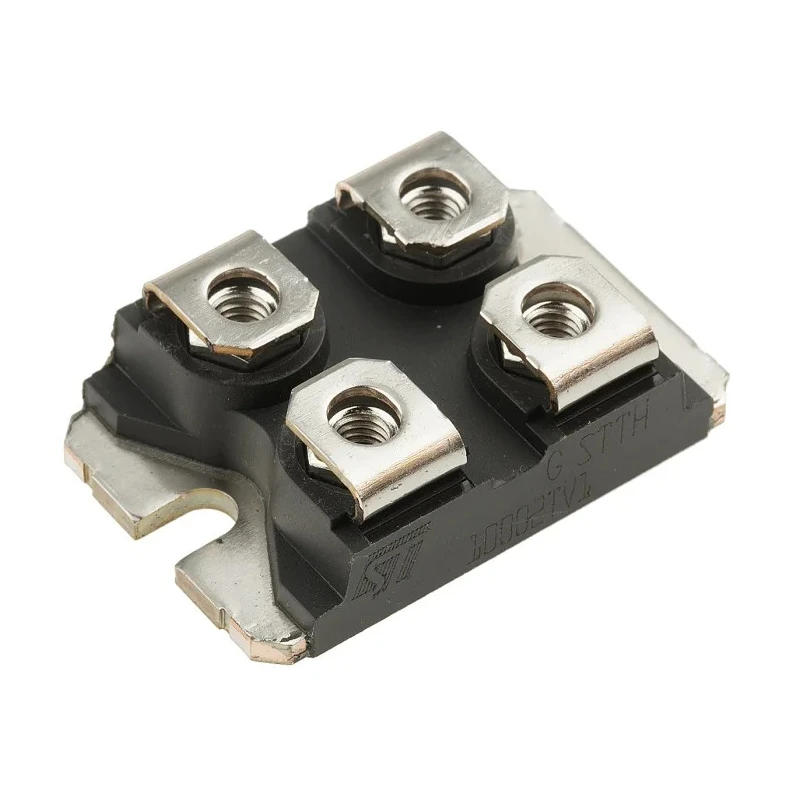

STMicroelectronics 200 V 50 A Switching Rectifier Diode 4-Pin ISOTOP STTH10002TV1
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4mm |
| Brand | STMicroelectronics |
| Height | 9.1mm |
| Length | 38.2mm |
| Model | STTH10002TV1 |
| Width | 25.5mm |
| Mount Type | Panel |
| Series | STTH10002 |
| Maximum Operating Temperature | 150°C |
| Package Type | ISOTOP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 50A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 750A |
| Maximum Forward Voltage Vf | 1.15V |
| Peak Reverse Recovery Time trr | 65ns |
Key Features
- Designed for efficient switching applications with isolated diode configuration.
- Handles peak non-repetitive surge current up to 750 A.
- Maximum forward voltage drop of 1.15 V ensures low conduction losses.
- Operates reliably in temperature ranges from -55°C to 150°C.
- Compact dimensions with 38.2 mm length and 25.5 mm width for easy panel mounting.
- Complies with RoHS standards for environmental safety.
- Fast peak reverse recovery time of 65 ns enhances switching performance.
- Low peak reverse current of 50 μA for improved efficiency.
Product Description
STMicroelectronics STTH10002TV1 is a robust switching rectifier diode designed for high-performance power applications. Featuring a maximum continuous forward current of 50 A and a peak reverse repetitive voltage of 200 V, this diode is ideal for efficient power conversion and switching circuits. It comes in a 4-pin ISOTOP panel mount package, providing convenient installation and excellent thermal performance.
The isolated diode configuration minimizes interference in circuits, and the device supports a high surge current of 750 A, ensuring reliability under transient conditions. The maximum forward voltage of 1.15 V reduces power loss during conduction, while the low peak reverse current of 50 μA improves overall efficiency.
With an operating temperature range from -55°C up to 150°C, the STTH10002TV1 diode is suitable for harsh industrial and automotive environments where temperature extremes are encountered. Its compact dimensions - 38.2 mm length, 25.5 mm width, and 9.1 mm height - enable integration into compact assemblies.
The fast peak reverse recovery time of 65 ns supports high switching frequencies, making it well suited for use in power supplies, motor drives, and other high-speed industrial electronics applications. Compliance with RoHS environmental standards guarantees safe usage without hazardous substances.
Designed for switching and rectifier applications in industrial electronics. High surge current capability for transient protection. Panel mount ISOTOP package ensures robust mechanical and thermal handling. Suitable for automotive, power management, and manufacturing equipment.
Reliable performance in harsh environmental conditions. Efficient operation reduces energy loss and heat generation. Compact form factor simplifies design integration. Explore more semiconductor components and rectifiers in the Electronics & Electricals category to find complementary products for your power and switching needs at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 50 A.
It has a peak reverse repetitive voltage rating of 200 V.
The diode has a length of 38.2 mm, a width of 25.5 mm, and a height of 9.1 mm.
This model can handle a peak non-repetitive forward surge current of up to 750 A.
The maximum forward voltage drop is 1.15 V, which helps reduce conduction losses.
It operates reliably in temperature ranges from -55°C to 150°C.
The diode comes in a 4-pin ISOTOP panel mount package.
The peak reverse recovery time is 65 ns, enhancing its switching performance.
Yes, it complies with RoHS standards for environmental safety.
The peak reverse current is 50 μA, which improves efficiency.
It is designed for switching and rectifier applications in industrial electronics, including power supplies and motor drives.
This model features an isolated diode configuration, which minimizes interference in circuits.
