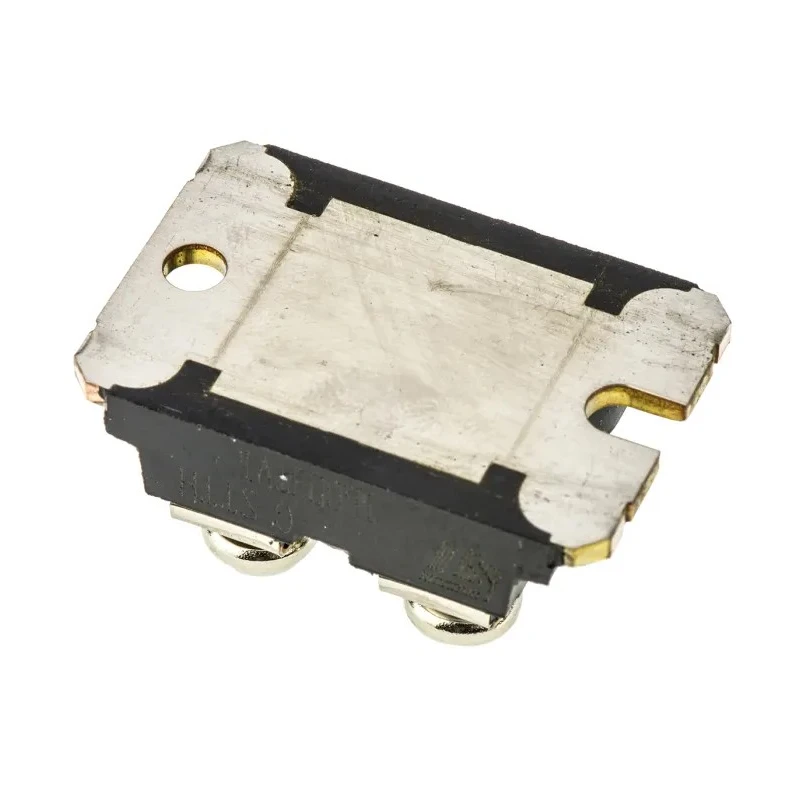

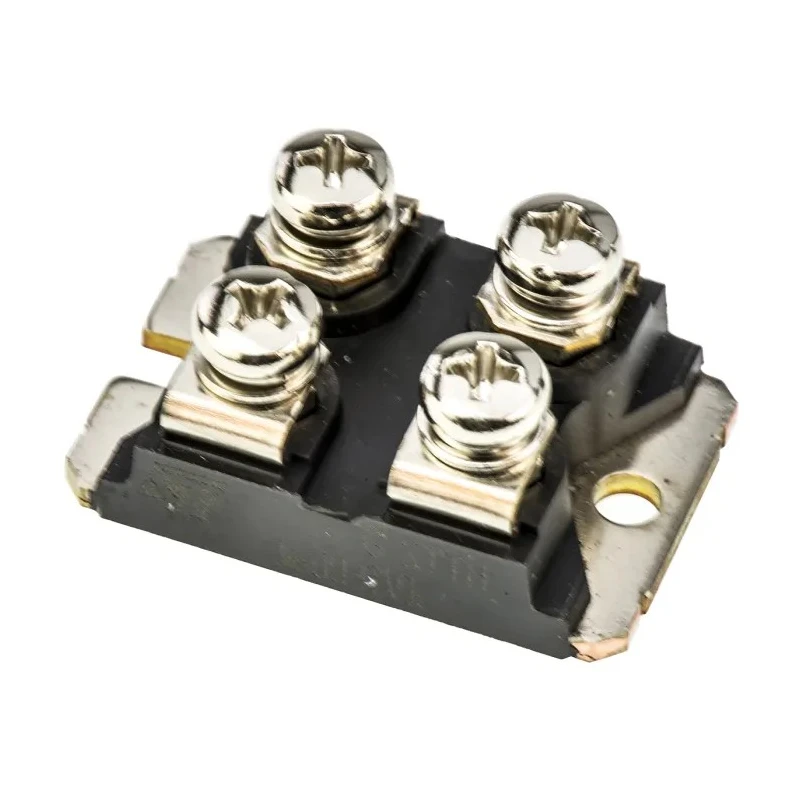

STMicroelectronics 300 V 160 A Diode Switching 4-Pin ISOTOP STTH16003TV1
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4mm |
| Brand | STMicroelectronics |
| Height | 9.1mm |
| Length | 38.2mm |
| Model | STTH16003TV1 |
| Width | 25.5mm |
| Mount Type | Panel |
| Series | STTH16003 |
| Maximum Operating Temperature | 150°C |
| Package Type | ISOTOP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 160A |
| Peak Reverse Repetitive Voltage Vrrm | 300V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 800A |
| Maximum Forward Voltage Vf | 1.2V |
| Peak Reverse Recovery Time trr | 80ns |
Key Features
- Designed for high-efficiency power rectification applications.
- Maximum continuous forward current of 160 A provides robust performance.
- Peak reverse repetitive voltage of 300 V ensures high voltage tolerance.
- Compact ISOTOP panel mount package with 4 pins for easy installation.
- Low forward voltage drop of 1.2 V reduces power losses.
- Peak reverse recovery time of 80 ns enhances switching speed.
- Wide operating temperature range from -55°C to 150°C for reliability.
- Compliance with RoHS standards for environmental safety.
Product Description
The STMicroelectronics STTH16003TV1 is a high-performance switching diode designed for power rectification tasks within various electronic systems including industrial, automotive, and power supply applications. This diode is rated for a maximum continuous forward current of 160 A and a peak reverse repetitive voltage of 300 V, suitable for demanding power management environments.
Featuring an isolated diode configuration, the 4-pin ISOTOP package supports secure panel mounting and optimal thermal management. The device exhibits a low forward voltage of 1.2 V that minimizes energy loss during conduction, improving system efficiency.
This diode offers a peak reverse recovery time of 80 ns, which enables rapid switching capabilities ideal for high-frequency power circuits. It is rated for operation across a broad temperature range from -55°C to 150°C, ensuring durability in harsh operating conditions.
Its RoHS compliance certifies adherence to environmental standards, making this diode a reliable and eco-friendly component choice. Designed for high-efficiency power rectification applications. Maximum continuous forward current of 160 A provides robust performance.
Peak reverse repetitive voltage of 300 V ensures high voltage tolerance. Compact ISOTOP panel mount package with 4 pins for easy installation. Low forward voltage drop of 1.2 V reduces power losses. Peak reverse recovery time of 80 ns enhances switching speed.
Wide operating temperature range from -55°C to 150°C for reliability. Compliance with RoHS standards for environmental safety.
This diode is suitable for implementation in industrial automation, power conversion, and electronic manufacturing applications, where its high current and voltage ratings ensure reliable performance. Explore more STMicroelectronics products in the electronics and semiconductor category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the STMicroelectronics STTH16003TV1 diode is 160 A.
This diode has a peak reverse repetitive voltage rating of 300 V, ensuring high voltage tolerance.
The forward voltage drop of the STTH16003TV1 is 1.2 V, which helps to reduce power losses during operation.
The peak reverse recovery time for this model is 80 ns, enhancing its switching speed.
The operating temperature range for the STTH16003TV1 is from -55°C to 150°C, allowing for reliable performance in various conditions.
This model comes in a compact ISOTOP package with 4 pins, designed for easy panel mounting.
The height of the STTH16003TV1 is 9.1 mm and its width is 25.5 mm.
Yes, the STMicroelectronics STTH16003TV1 is compliant with RoHS standards for environmental safety.
The peak non-repetitive forward surge current for this diode is rated at 800 A.
The STTH16003TV1 features a pin count of 4.
This diode is classified as a switching rectifier, suitable for high-efficiency power rectification applications.
The country of origin for the STMicroelectronics STTH16003TV1 is India.
