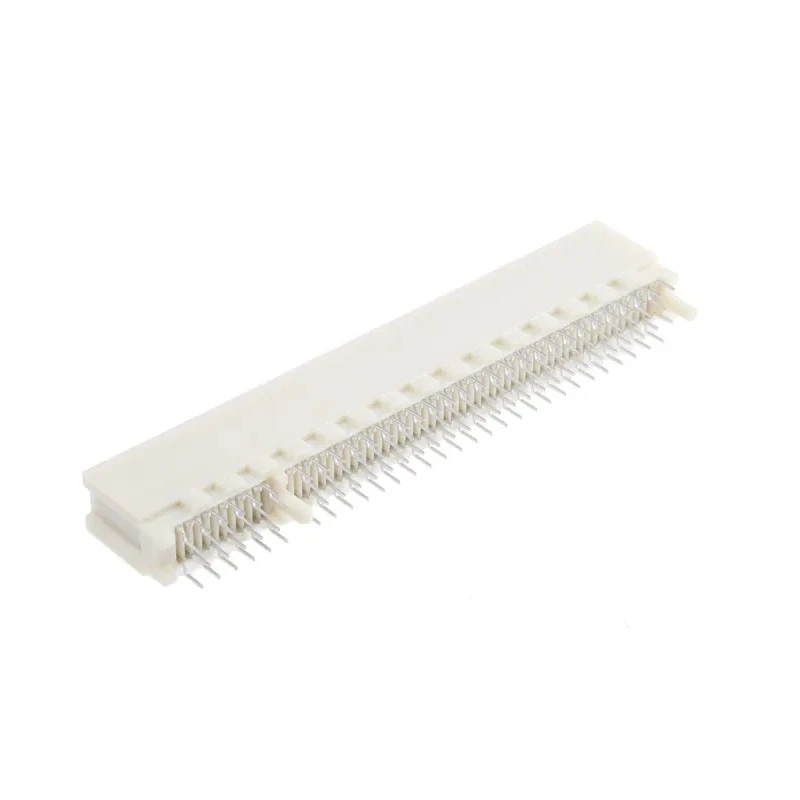

TE Connectivity PCI & PCIe Series Straight Edge Connector, Through Hole, 120-Contacts, 1.27 mm Pitch, 2 Row, Solder 5145154-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 203V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | PCI & PCIe |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 120 |
| Contact Gender | Female |
| Card Type | PCI |
Key Features
- Offers a straight orientation suitable for PCI card edge applications.
- Constructed with gold over nickel plated phosphor bronze contacts.
- Supports a current rating of 1 ampere and voltage rating of 203V AC.
- Operates reliably between -55°C and 85°C temperature range.
- Termination is via solder with female contact gender.
- Housing is made of durable white thermoplastic for stability and insulation.
- Features hold down pylons for enhanced PCB retention during manufacturing.
- Complies with PCI & PCIe series standards for edge connectors.
Product Description
TE Connectivity 5145154-4 PCI & PCIe Series Straight Edge Connector is a high-quality, through hole mount connector designed to provide reliable, robust electrical connections in PCI based electronic assemblies. With 120 female contacts and a 1.27 mm pitch arranged in 2 rows, this connector is suited for PCI card edge applications requiring a durable and precise interface.
Constructed with phosphor bronze contacts plated with gold over nickel, the connector ensures excellent conductivity and corrosion resistance. Its white thermoplastic housing offers insulation and mechanical stability. The presence of hold down pylons assists in secure PCB retention, enhancing assembly integrity during manufacturing and operational vibrations.
Rated for 1 amp current and 203V AC voltage, it operates safely over a wide temperature range from -55°C to 85°C, making it suitable for industrial, manufacturing, and computing equipment environments requiring reliable electrical communication.
The solder termination type allows secure soldered PCB mounting. The connector's PCI series compliance underlines its compatibility and standardisation for PCI and PCIe bus systems.
Common industrial use cases include electronic component manufacturing, computer hardware assembly, industrial control systems, and other applications demanding robust edge connectors for high-density PCB connections.
Offers a straight orientation suitable for PCI card edge applications. Constructed with gold over nickel plated phosphor bronze contacts. Supports a current rating of 1 ampere and voltage rating of 203V AC. Operates reliably between -55°C and 85°C temperature range.
Termination is via solder with female contact gender. Housing is made of durable white thermoplastic for stability and insulation. Features hold down pylons for enhanced PCB retention during manufacturing. Complies with PCI & PCIe series standards for edge connectors.
Ideal for electronic, industrial, and computing PCB assembly uses.
EnvMart offers a comprehensive range of electronic connectors including PCI Edge Connectors, supporting industrial, laboratory, manufacturing, and electronics sectors. Explore our catalog for quality TE Connectivity components and related accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 1 ampere.
The voltage rating is 203V AC.
It operates reliably between -55°C and 85°C.
This model has 120 female contacts.
The pitch size is 1.27 mm.
The contacts are made of phosphor bronze and are plated with gold over nickel.
It uses a solder termination type.
The housing is made of durable white thermoplastic.
It offers a straight orientation suitable for PCI card edge applications.
Yes, it complies with PCI & PCIe series standards for edge connectors.
It is designed for through hole mounting.
It is suitable for electronic component manufacturing, computer hardware assembly, and industrial control systems.
