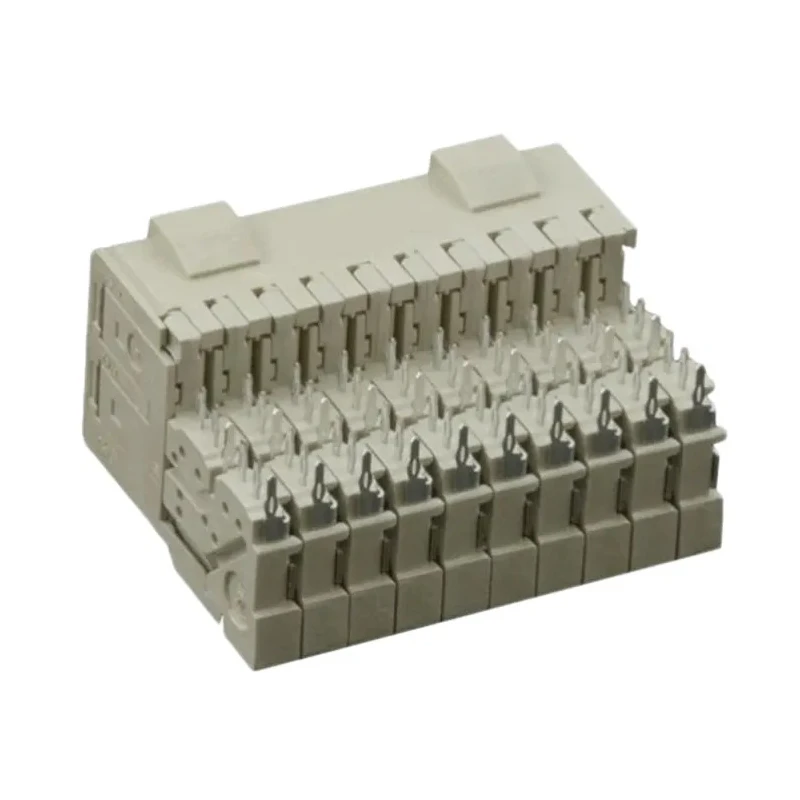

TE Connectivity Z-PACK HM-Zd Backplane Connector 2.5 mm Pitch 40 Contacts 250V AC 700mA Right Angle Female 6469028-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 700mA |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Copper Nickel Silicon |
| Series | Z-PACK HM-Zd |
| Termination Type | Press-in |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 4 |
| Number of columns | 10 |
| Pitch | 2.5mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector Gender | Female |
| Backplane Connector Type | High Speed Hard Metric |
Key Features
- This connector supports up to 700mA current and 250V AC voltage.
- It has a right angle orientation and female contact gender for flexible mounting.
- The housing material is durable Polyethylene Terephthalate ensuring long-term reliability.
- Contact materials include copper nickel silicon with gold over nickel plating for enhanced conductivity.
- Mount type is through hole with press-in termination for secure PCB attachment.
- Operating temperature ranges from -65°C to 105°C, suitable for demanding environments.
- It complies with the Z-PACK HM-Zd series standard for backplane interconnects.
- Ideal for use in industrial, telecommunications, and computing backplane and rack connector applications.
Product Description
TE Connectivity 6469028-1 is a Z-PACK HM-Zd high speed hard metric backplane connector designed with a 2.5 mm pitch and 40 total contacts arranged in 10 columns and 4 rows. This right angle female connector offers reliable mechanical and electrical performance for demanding industrial applications.
The connector housing is made from Polyethylene Terephthalate which provides excellent insulating properties and mechanical strength. Contacts are constructed of copper nickel silicon and plated with gold over nickel to ensure low contact resistance and corrosion resistance.
Designed for through hole PCB mounting with press-in terminations, it supports a maximum current of 700mA and voltage rating of 250V AC. The operating temperature range from -65°C to 105°C makes it suitable for harsh environmental conditions.
This connector type is commonly utilized in backplane assemblies conforming to the PICMG 3.x (ATCA) industry standard and extends IEC61076-4-101 specifications. Its high-speed differential design supports data rates in the range of 3 to 6.4 Gb/s, making it ideal for telecommunications, computing, and industrial control equipment.
This connector is part of the Z-PACK HM-Zd series by TE Connectivity. Offers a differential solution for high-speed backplane connections up to 6.4 Gb/s. Press-fit PCB through hole mounting provides secure mechanical retention.
Designed for high density backplane interconnects with optimized pitch and contact arrangement. Robust materials and plating ensure reliable electrical connectivity and durability. Suitable for industrial, telecommunications, data communications, and computing environments.
Conforms to IEC and PICMG standards for backplane connectors.
Choose this connector for dependable, high-speed backplane connectivity, enhancing system performance and reliability. Browse more TE Connectivity Backplane Connectors and related industrial electronic components at EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this backplane connector is 700mA.
This connector can handle a voltage of up to 250V AC.
The operating temperature range for this model is from -65°C to 105°C.
This connector has a total of 40 contacts arranged in 10 columns and 4 rows.
The contacts are made of copper nickel silicon with gold over nickel plating, while the housing is made from Polyethylene Terephthalate.
This connector uses through hole mounting with press-in termination for secure PCB attachment.
The pitch of this backplane connector is 2.5 mm.
This connector has a right angle orientation.
This connector complies with the Z-PACK HM-Zd series standard and extends IEC61076-4-101 specifications.
This connector is suitable for industrial, telecommunications, and computing backplane applications.
The connector gender of this model is female.
The gold over nickel plating on the contacts ensures low contact resistance and corrosion resistance, enhancing conductivity.
