| Country of Origin | Japan |
|---|---|
| Brand | Toshiba |
| Height | 1.1mm |
| Length | 2.9mm |
| Model | 1SS181(TE85L,F) |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | 1SS181 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-346 (SC-59) |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 300mA |
| Peak Reverse Repetitive Voltage Vrrm | 85V |
| Diode Configuration | Common Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 500nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2A |
| Maximum Forward Voltage Vf | 1.2V |
| Peak Reverse Recovery Time trr | 4ns |

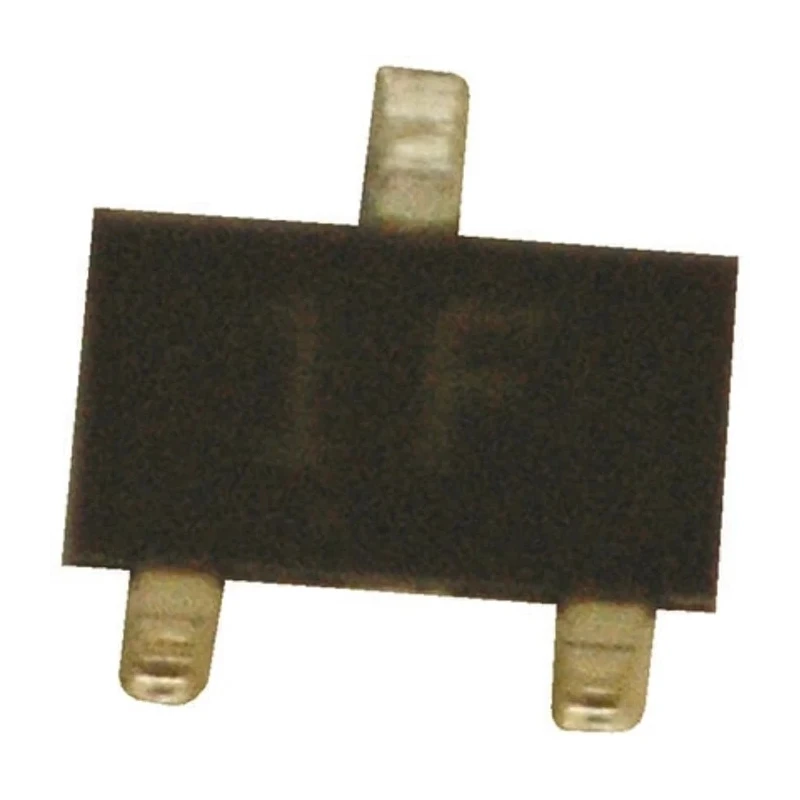

Toshiba 1SS181(TE85L,F) is a general-purpose switching diode designed for electronic and power semiconductor applications. It features a surface mount package type SOT-346 (SC-59) with 3 pins, ideal for compact PCB layouts. This diode supports a maximum continuous forward current of 300 mA and a peak reverse repetitive voltage of 85 V.
The device operates reliably across an extensive temperature range from -55°C to 125°C, making it suitable for automotive and industrial environments. Its common anode diode configuration and low maximum forward voltage of 1.2 V optimize switching efficiency in circuits.
With a peak non-repetitive forward surge current of 2 A and a quick peak reverse recovery time of 4 ns, it ensures high-speed switching essential for power management and signal processing. The low peak reverse current of only 500 nA reduces leakage and improves performance stability.
Physically compact, the diode measures 2.9 mm in length, 1.5 mm in width, and 1.1 mm in height, facilitating space saving in circuit design. It complies with RoHS and AEC-Q101 automotive quality standards, ensuring compliance with environmental regulations and robustness for automotive applications.
This diode is manufactured in Japan, guaranteeing consistent quality and reliability. It is typically used in consumer electronics, automotive electronics, power supplies, and switching regulator circuits.
Maximum continuous forward current is 300 mA ensuring reliable switching performance. Peak reverse repetitive voltage of 85 V supports robust diode operation. Common anode diode configuration supports standard circuit integration.
Compact SOT-346 (SC-59) package dimensions of 2.9 mm length, 1.5 mm width, and 1.1 mm height. Operates over a wide temperature range from -55°C to 125°C for versatility. Fast peak reverse recovery time of 4 ns enhances switching efficiency.
Low peak reverse current of 500 nA minimizes leakage losses. Complies with RoHS and AEC-Q101 automotive standards for environmental and quality assurance. Manufactured in Japan with consistent high-quality standards. Explore Toshiba semiconductors and switching Diodes in the Electronics & Electricals category at EnvMart for industrial, automotive, and consumer applications.
