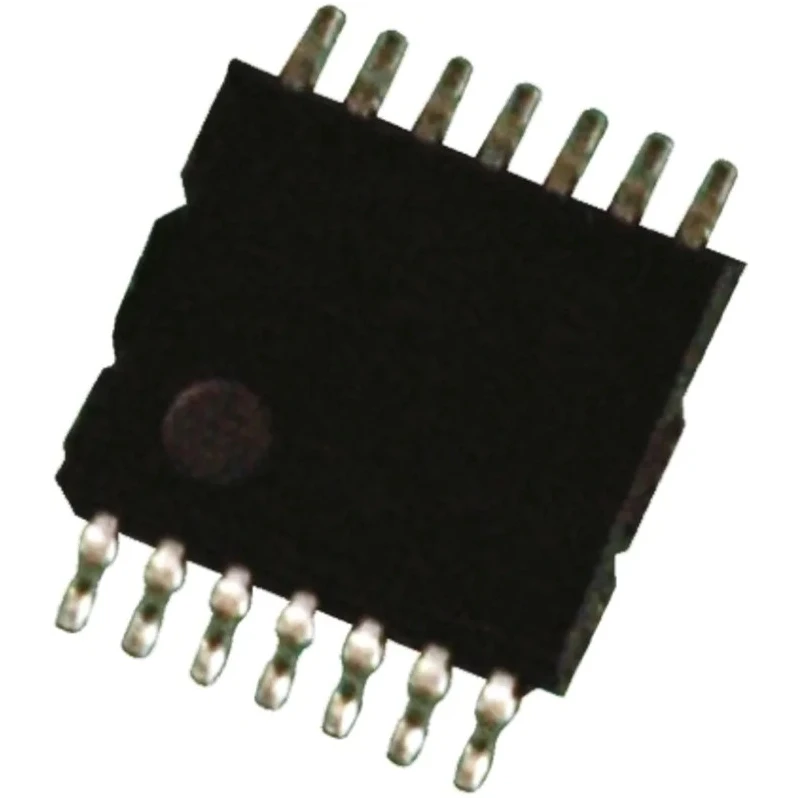

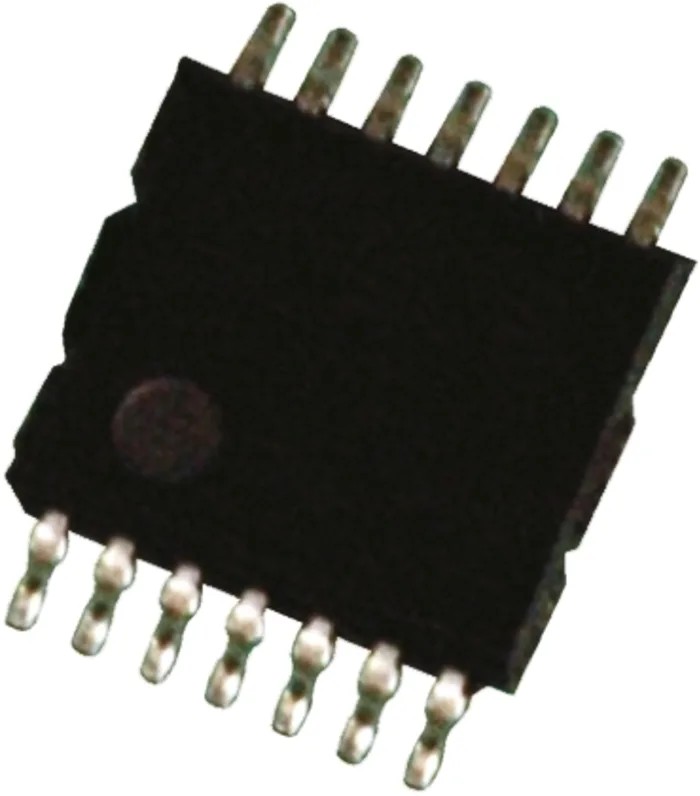

Toshiba 4 2-Input NAND Logic Gate, 14-Pin TSSOP, CMOS Input, Surface Mount TC4011BFT(N)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Toshiba |
| Height | 1mm |
| Length | 5.4mm |
| Model | TC4011BFT(N) |
| Mount Type | Surface |
| Output type | Buffer |
| Input Type | CMOS |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements | 4 |
| Maximum Supply Voltage | 18V |
| Logic Family | 4000 |
| Logic Function | NAND |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ CL | 80ns |
| Maximum Low Level Output Current | 4mA |
| Number of Inputs per Gate | 2 |
Key Features
- The device operates within a supply voltage range of 3V to 18V.
- Maximum propagation delay time is 80 nanoseconds at specified load capacitance.
- The product supports operating temperatures from -40°C up to 85°C.
- Output type is buffer, with maximum high-level output current of -4mA and low-level output current of 4mA.
- Its compact dimensions include a length of 5.4mm and height of 1mm.
- Logic family is 4000 series CMOS technology optimized for low power consumption.
- The package provides surface mount convenience with a 14-pin TSSOP format.
- The product is manufactured in Japan and is new in condition.
Product Description
Toshiba TC4011BFT(N) is a high-quality 4-element, 2-input NAND logic gate designed for surface mounting in electronic circuits. It uses CMOS input technology to ensure low supply current and high noise immunity, making it ideal for diverse applications in digital logic design.
The device operates reliably over a voltage range from 3V to 18V and a temperature range from -40°C to +85°C, which suits industrial, commercial, and consumer electronics.
This logic gate features a 14-pin Thin Shrink Small Outline Package (TSSOP) measuring 5.4mm in length and 1mm in height, enabling space-saving designs in densely packed printed circuit boards.
It provides buffered outputs capable of sourcing and sinking currents with maximum high-level output current of -4mA and maximum low-level output current of 4mA. The maximum propagation delay time is 80 nanoseconds under typical load conditions, supporting efficient signal timing and processing.
The TC4011BFT(N) is part of the 4000 logic family, renowned for stability and low power operation, suitable for a variety of Logic Gate uses in computing, automation, and embedded system designs.
The device integrates four independent 2-input NAND gates. Its surface-mount package supports automated PCB assembly. Wide operating temperature tolerance provides reliability in harsh environments. Designed and manufactured in Japan ensuring high-quality standards.
Buffer output type improves signal integrity in logic circuits. CMOS input technology reduces power consumption significantly. Compact form factor suitable for modern miniaturized electronics. Robust functional performance for industrial and commercial applications.
This component is suited for designers and engineers working in electronics manufacturing, industrial automation, signal processing, computing hardware, and embedded system design. For more products from Toshiba and related electronic components, browse EnvMart’s extensive semiconductor catalogue.
