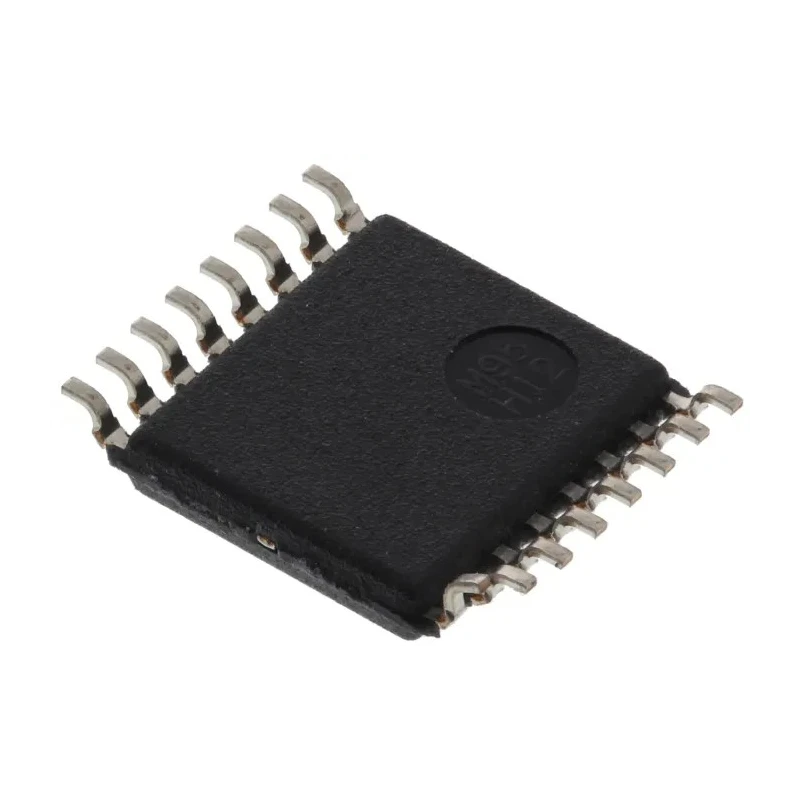

Texas Instruments 4-Bit Non-Inverting CMOS Bus Transceiver, 16-Pin TSSOP SN74AVC4T245PW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 5mm |
| Model | SN74AVC4T245PW |
| Mount Type | Surface |
| Output type | 3 State |
| Series | SN74AVC4T245 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 4 |
| Pin Count | 16 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | AVC |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 1.2V |
| Maximum High Level Output Current | -12mA |
| Maximum Propagation Delay Time @ CL | 5.6ns |
| Maximum Low Level Output Current | 12mA |
| Output Level | CMOS |
| Input Level | CMOS |
Key Features
- Supports four non-inverting channels for efficient data bus transceiving.
- Operates with a minimum supply voltage of 1.2V and maximum of 3.6V.
- Features a propagation delay of 5.6 ns at specified load capacitance.
- Surface mount TSSOP package type with 16 pins ensuring compact PCB layout.
- CMOS input and output levels for compatibility with modern digital circuits.
- Wide operating temperature range from -40°C to 85°C for industrial reliability.
- Maximum high level output current of -12 mA and low level output current of 12 mA for robust signal drive.
- Implements 3-state output type for bus sharing and multiplexing applications.
Product Description
Texas Instruments SN74AVC4T245PW is a 4-bit bus transceiver designed to facilitate bidirectional data communication with non-inverting CMOS logic levels. The device utilizes the advanced SN74AVC4T245 series technology, offering a compact 16-pin TSSOP surface mount package suitable for space-constrained PCB layouts.
Operating over a supply voltage range of 1.2V to 3.6V, it delivers fast switching speeds with a maximum propagation delay of 5.6 ns, making it ideal for high-performance digital applications requiring efficient data handling with minimal latency.
The transceiver supports a wide operating temperature range from -40°C up to 85°C, ensuring reliable performance under industrial and commercial environmental conditions. With CMOS-compatible input and output levels, along with a three-state output configuration, the device enables effective bus sharing and multiplexing in complex circuits.
The device's maximum output current capability of ±12 mA supports driving various digital loads while maintaining signal integrity. Its non-inverting polarity preserves signal logic levels through transmissions.
Typical applications include digital bus interfacing, level shifting, and buffer driving in FPGA, microcontroller, and communication systems within industrial, laboratory, and commercial electronics sectors.
Four non-inverting channels for data bus transceiving. Low power consumption with a supply voltage range of 1.2V to 3.6V. Fast propagation delay of 5.6 ns supporting high-speed data transfer. Compact 16-pin TSSOP surface mount package.
CMOS input and output logic level compatibility. Wide operating temperature range suitable for harsh environments. Supports 3-state outputs for bus multiplexing and sharing. High output current drive capability of ±12 mA.
Compliant with industrial semiconductor logic family standards. Explore more high-quality Bus Transceivers and semiconductor components on EnvMart for your industrial and electronic design projects.
