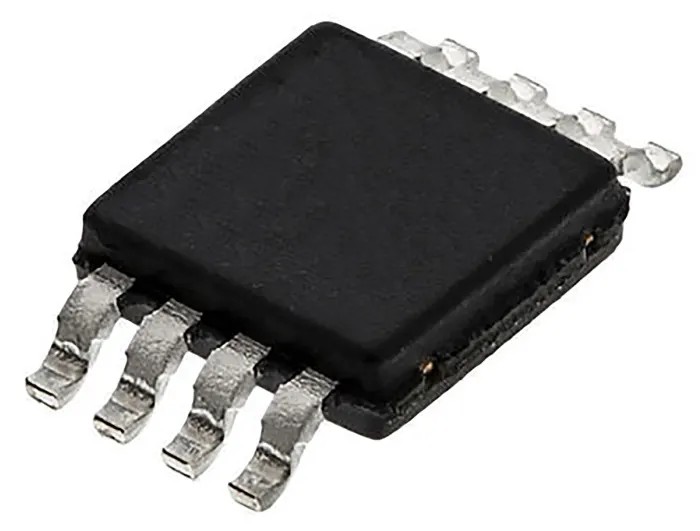

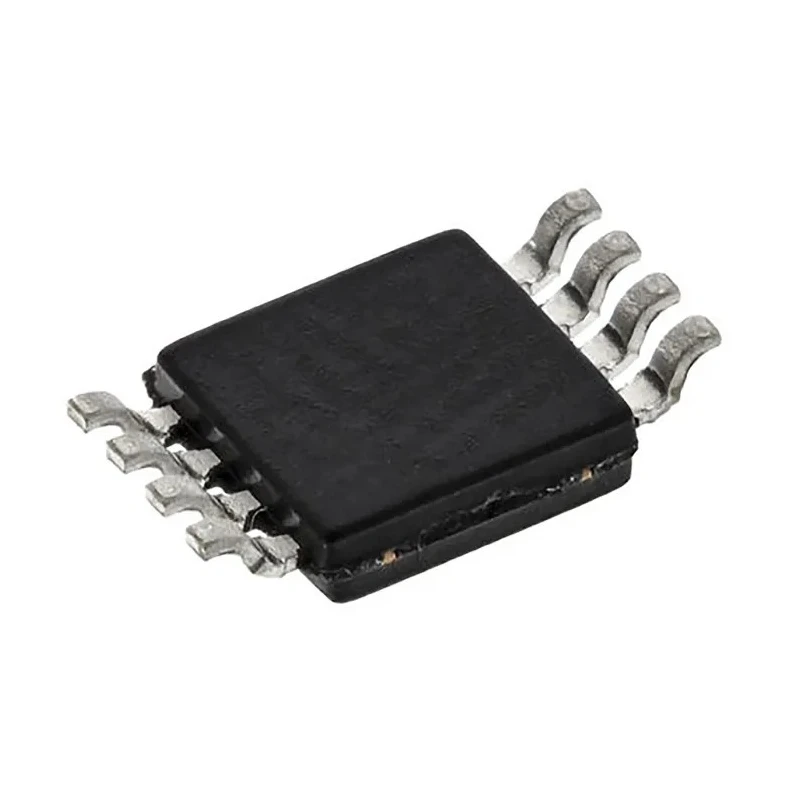

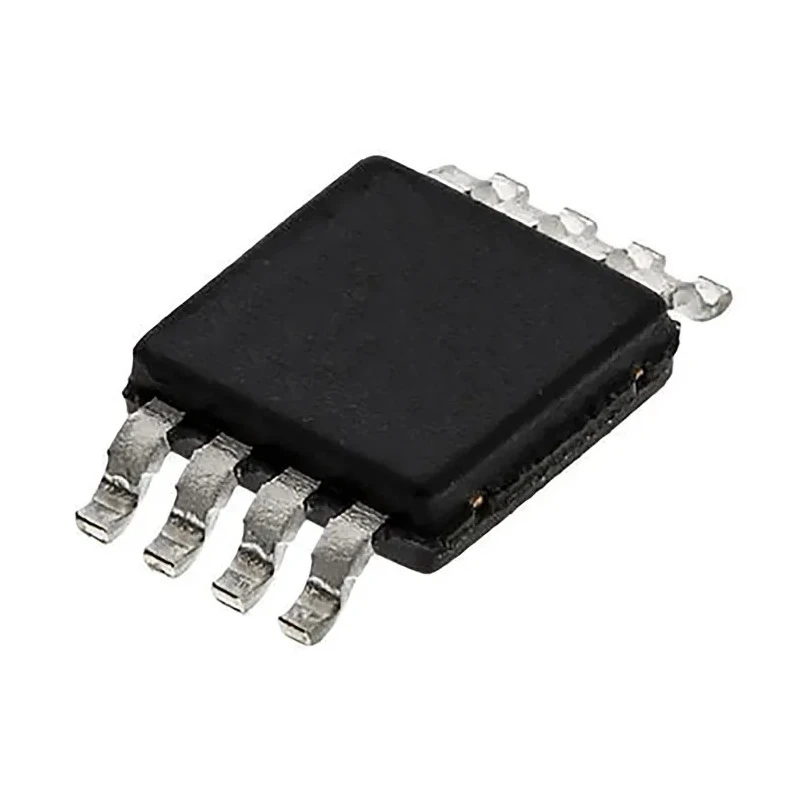

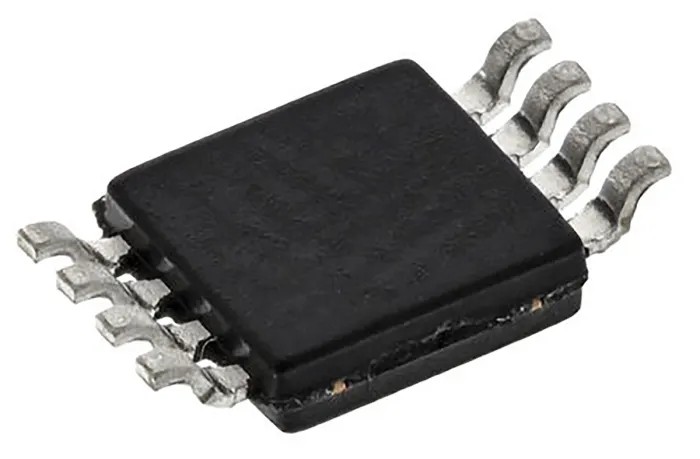

Microchip 2-Channel General Purpose Comparator Open Drain Output 20 ns Response Time 1.8V-5.5V 8-Pin MSOP MCP6567-E/MS

Microchip MCP6567-E/MS is a highly reliable and precise dual-channel general purpose comparator designed for electronic applications requiring fast and accurate signal comparison. Operating with an open drain output stage, this comparator supports wired-AND configurations, ideal for multiplexed signal lines and various digital logic implementations. The device delivers a typical response time of 20 ns, making it suitable for high-speed measurement and control circuits.

Operating across a supply voltage range of 1.8 V to 5.5 V, the MCP6567-E/MS offers flexibility for low voltage and standard systems, providing stable performance over a wide thermal range from -40°C to 125°C, thereby meeting demanding automotive and industrial temperature requirements. The device's low supply current of only 100μA helps in conserving power in battery-operated equipment and critical embedded systems.

Housed in a compact 8-pin MSOP surface mount package measuring 3 mm by 3 mm by 0.95 mm, the MCP6567-E/MS is designed for space-efficient PCB layouts in modern electronic designs. This device complies with the automotive industry standard AEC-Q100, assuring robust manufacture quality and reliability for stringent applications.

Applications for the MCP6567-E/MS comparator include industrial controls, electronic instrumentation, automotive sensors, power management, and consumer electronics requiring precise timing and voltage monitoring functions.

Dual comparator channels enable compact circuit design. Open drain output configuration allows wired-AND functionality. Fast response time of 20 nanoseconds supports high-speed applications. Wide supply voltage range from 1.8 V to 5.5 V ensures versatile compatibility.

Surface mount 8-pin MSOP package offers space-saving PCB layout. Operating temperature range from -40°C to 125°C suits automotive and industrial environments. Low supply current of 100μA enhances energy efficiency. Meets automotive standard AEC-Q100 for reliability and quality.

Compact device dimensions: 3 mm length, 3 mm width, and 0.95 mm height. Manufactured in Thailand ensuring global quality standards.

This Microchip comparator is a dependable component for industrial, automotive, laboratory, and consumer electronic projects. Explore the extensive range of Comparators and amplifiers on EnvMart for complementary components and design optimization.
