onsemi General Purpose Comparator Open Drain Output 5V 2.7V Supply 5-Pin SC-70 LMV331SQ3T2G

The onsemi LMV331SQ3T2G is a general purpose comparator designed for efficient and reliable electronic signal comparison in industrial, automotive, and consumer electronics applications. This device operates at a voltage range of 2.7 volts minimum up to a maximum supply voltage of 5 volts and features an open drain output enabling flexible interfacing with different logic levels and power domains.

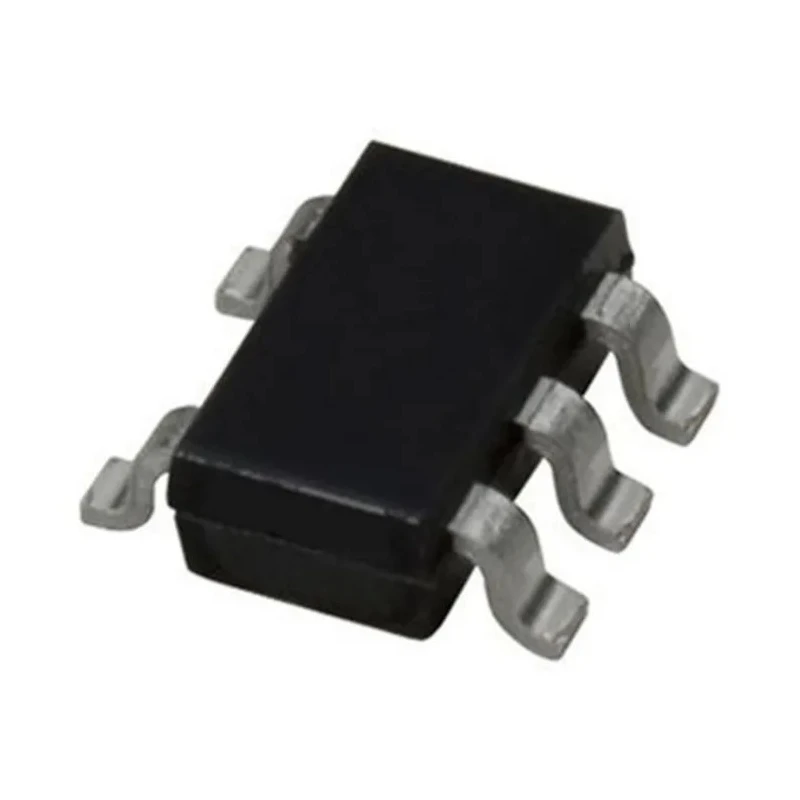

Housed in a compact 5-pin SC-70 surface mount package measuring 2.2 mm in length, 1.35 mm in width, and 1 mm in height, the LMV331SQ3T2G supports high-density circuit board designs. The comparator's fast typical response time of 200 nanoseconds makes it suitable for applications requiring quick signal detection and processing.

Low supply current of 100 microamperes allows for power-sensitive applications, while the operating temperature range from -40°C to 85°C ensures reliable operation under varying environmental conditions. The device also meets the rigorous automotive standard AEC-Q100, highlighting its robustness for automotive electronic systems.

This comparator has a single channel configuration with a 5-pin layout for ease of integration on differentiated electronic designs including industrial control systems, automation, instrumentation, and embedded electronics.

The device offers a fast typical response time of 200 nanoseconds. Features open drain output suitable for a wide range of applications. Operates efficiently at low supply current of 100 microamperes. Designed for surface mount technology with compact SC-70 package.

Functioning temperature range from -40°C to 85°C for durability. Compliant with automotive standard AEC-Q100 ensuring high reliability. Single channel comparator with 5-pin interface for easy PCB mounting. Small dimensions provide versatility in compact electronic designs.

Ideal for use in industrial instrumentation, automotive electronics, and consumer device applications, the LMV331SQ3T2G Comparator from onsemi delivers reliable performance and flexible interfacing options. Explore a wide range of semiconductor components for your design projects with EnvMart.
