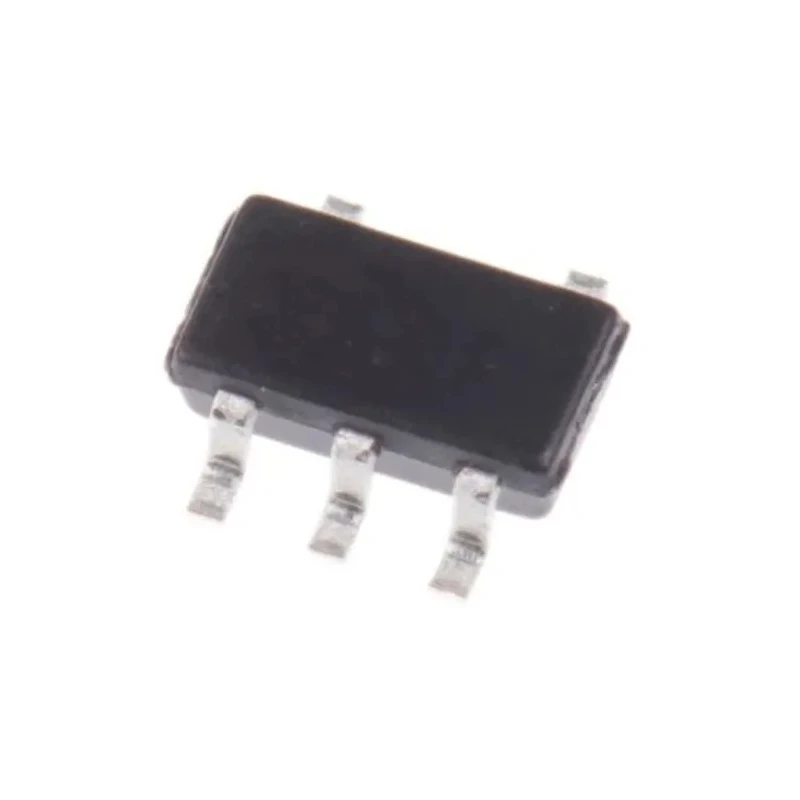

onsemi Comparator Rail to Rail Output High Speed 50 ns 1 Channel 1.8-5.5 V 5-Pin TSOP NCS2250SN2T1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Comparator Rail to Rail Output High Speed 50 ns 1 Channel 1.8-5.5 V 5-Pin TSOP NCS2250SN2T1G

Name: onsemi Comparator Rail to Rail Output High Speed 50 ns 1 Channel 1.8-5.5 V 5-Pin TSOP NCS2250SN2T1G
Brand: onsemi
SKU: 421188
Price: 0.31 USD
Availability: InStock



Category Comparator Brand onsemi Condition New

Specifications

Country of Origin	Malaysia
Brand	onsemi
Height	1mm
Length	3.15mm
Model	NCS2250SN2T1G
Width	1.65mm
Mount Type	Surface
Output type	Rail to Rail
Series	NC
Maximum Operating Temperature	125°C
Package Type	TSOP
Minimum Operating Temperature	-40°C
Number Of Channels	1
Supply Voltage	1.8 V to 5.5 V
Comparator Type	High Speed
Pin Count	5
Automotive Standard	AEC-Q101
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1.8V
Supply Current	150μA
Propagation Delay	50 ns with 100 mV overdrive
Typical Response Time	50ns
Packages	SC-70 and SOT23-5
Rail-to-rail input	VSS -200 mV to VDD +200 mV

Key Features

High speed comparator with 50 ns typical response time.
Rail-to-rail output compatible with low voltage systems.
Single channel comparator with 5-pin TSOP package.
Wide supply voltage range from 1.8 V to 5.5 V.
Low supply current of approximately 150 μA at 5 V supply.
Operating temperature range from -40°C to 125°C for robust applications.
Small form factor with dimensions 3.15 mm x 1.65 mm x 1 mm.
Meets automotive industry standard AEC-Q101.

Product Description

onsemi model NCS2250SN2T1G is a high speed comparator with rail-to-rail output, designed for low voltage systems operating on 1.8 V to 5.5 V supply. It features a propagation delay of approximately 50 ns with 100 mV overdrive, enabling fast response ideal for high-speed sampling needs and voltage threshold detection.

This 5-pin TSOP packaged device includes a single comparator channel with rail-to-rail input range extending from VSS -200 mV to VDD +200 mV, allowing flexible use across wide input signal ranges including supply rails. Typical supply current is low at 150 μA at a 5 V supply, reducing power consumption for battery-operated devices.

The NCS2250SN2T1G supports operation across a temperature range from -40°C to 125°C, meeting the rigorous automotive standard AEC-Q101, making it suitable for use in automotive and other harsh environments. Compact physical dimensions of 3.15 mm length, 1.65 mm width, and 1 mm height enable PCB space-saving.

High speed 50 ns response time ensures prompt signal comparison. Rail-to-rail output compatible with varying voltage levels. Low power consumption extends device runtime in portable systems. Wide supply voltage and operating temperature ranges provide application versatility.

Supports automotive requirements and harsh environmental conditions. Compact 5-pin TSOP package facilitates PCB integration. Flexible use for logic level shifting, zero-crossing detection, and clock restoration. Applicable in automotive systems, lighting controls, smartphones, and power supplies.

This comparator is ideal for industrial, automotive, consumer electronics, and communication equipment requiring precise and rapid analog signal comparison with low power draw. onsemi provides this product ready for robust, high-performance applications needing small form factor and reliable operation.
