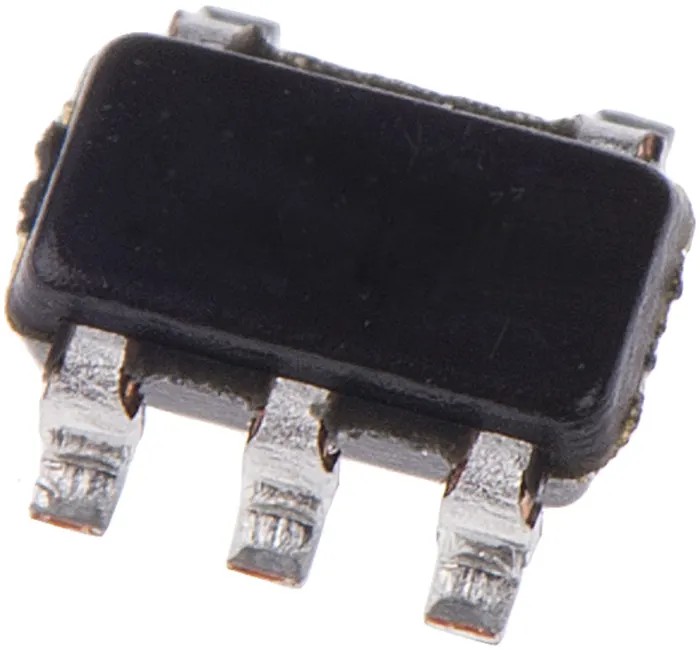

Texas Instruments Low Power Comparator TLV1701AIDBVT Open Collector Output 560 ns Response Time 2.2 V to 36 V 5-Pin SOT-23

Texas Instruments TLV1701AIDBVT is a low power comparator featuring a fast typical response time of 560 nanoseconds, operating from a minimum supply voltage of 2.2 V up to 36 V. It is housed in a compact 5-pin SOT-23 package suitable for surface mount assembly. This comparator is designed to deliver rapid switching performance for a wide range of electronic applications.

The device offers an open collector output, enabling easy wired-AND connection or interface with different voltage domains. It has a single channel configuration optimized for low power consumption, making it ideal for battery-powered and portable equipment.

Mechanical dimensions are minimal with a length of 3.05 mm, width of 1.75 mm, and height of 1.3 mm, facilitating dense PCB layouts. The comparator operates reliably over a wide temperature range of -40°C to 125°C, suitable for industrial environments.

Although not certified to automotive standards, it sustains operation in automotive-like temperature conditions and various industrial settings, including instrumentation and control systems.

Texas Instruments comparator devices distinguish themselves by reduced propagation delay and tolerance to differential input voltages, ensuring reliable switching performance. The TLV1701AIDBVT model is part of the TLV series of low voltage comparators and supports applications requiring fast transition times and open collector flexibility.

The device supports surface mounting to save PCB space. Operates reliably between -40°C and 125°C temperature range. Has 5 pins with a small form factor of 3.05mm length by 1.75mm width and 1.3mm height. Designed for rapid switching applications with an open collector output for flexible interfacing.

Single channel comparator optimized for low power consumption in portable and industrial circuits. Suitable for industrial, automotive (non-certified), and general electronic applications. The comparator tolerates high supply voltage up to 36 V and low down to 2.2 V.

Package type SOT-23 allows easy integration into compact PCB designs. No specific standards or automotive approval certifications are applied. Ideal for use in instrumentation, control systems, and electronic signal processing.
