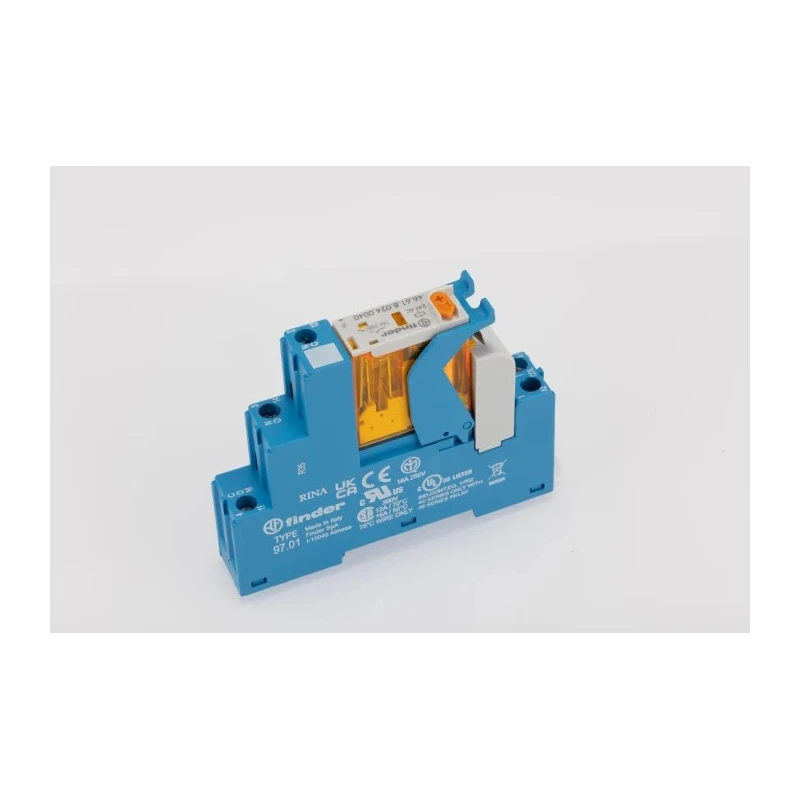

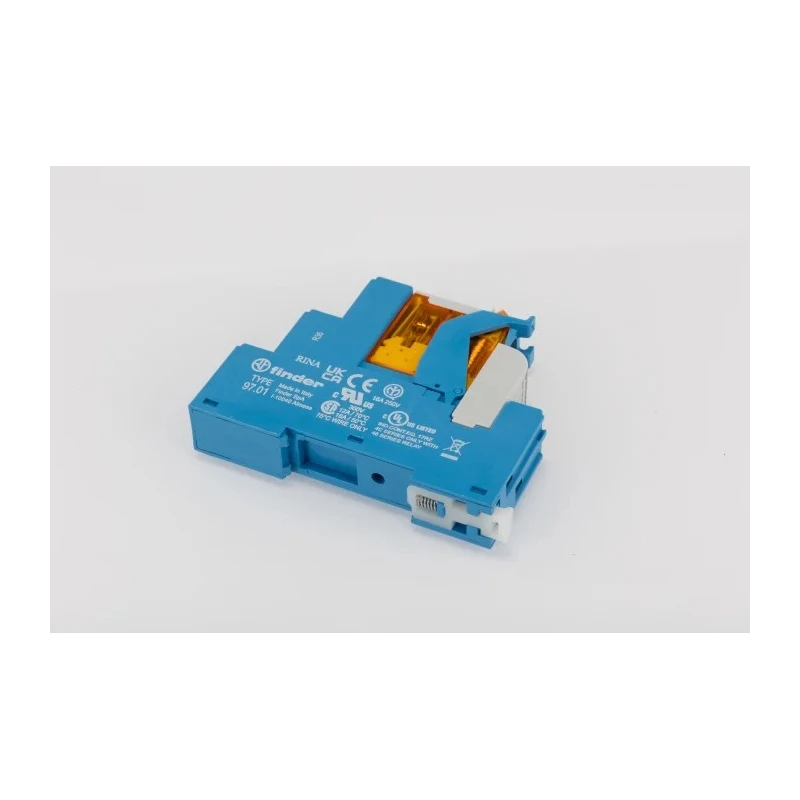

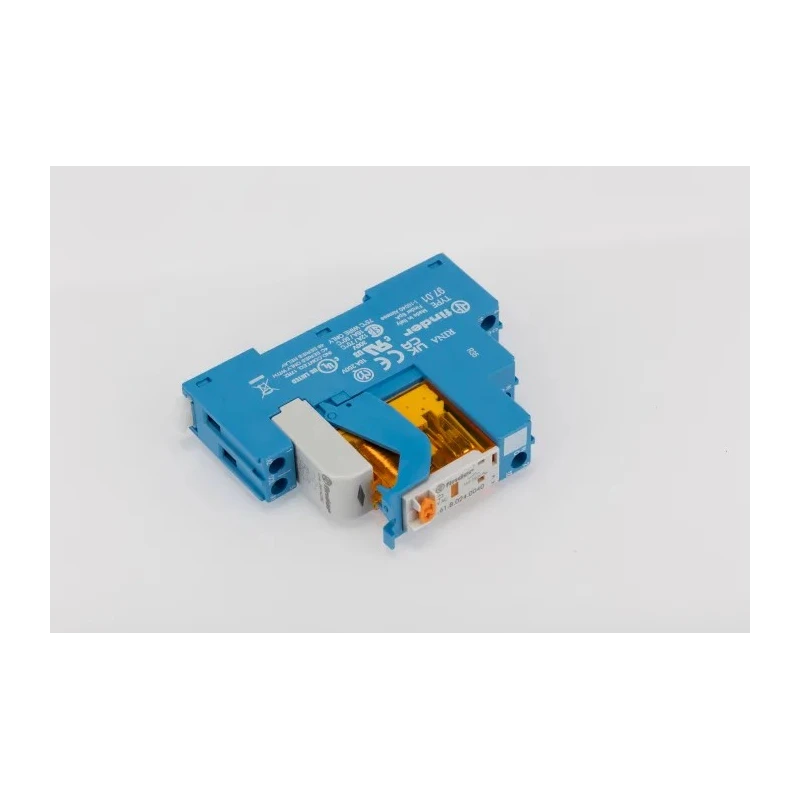

Finder 4C Series Interface Relay DIN Rail Mount 24V AC Coil 16A SPDT 45mA Coil Current 4C.01.8.024.0060SPA

Name: Finder 4C Series Interface Relay DIN Rail Mount 24V AC Coil 16A SPDT 45mA Coil Current 4C.01.8.024.0060SPA
Brand: FINDER
SKU: 145076
Price: 25.02 USD
Availability: InStock



Category Interface Relays Brand FINDER Condition New

Specifications

Country of Origin	Italy
Brand	Finder
Height	82.9mm
Length	15.8mm
Model	4C.01.8.024.0060SPA
Width	64.6mm
Mount Type	DIN Rail
Contact Material	Silver Alloy
Series	4C
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Switching Current	16A
Terminal type	Screw
Standards/Approvals	EAC, CE
Coil Resistance	320Ω
Coil Voltage	24V ac
Coil Current	45mA
Switching AC Voltage	250V ac
Finder 4C Series Interface Relay, DIN Rail, 24V dc Coil, SPDT, 20mABrand	Finder

Key Features

Features a screw terminal type for secure electrical connections.
Constructed with durable silver alloy contacts for enhanced conductivity and longevity.
Operates reliably within a temperature range of -40 to 70°C.
Supports switching AC voltage up to 250V AC with a high current rating of 16A.
Compact dimensions of approximately 82.9mm height, 15.8mm length, and 64.6mm width enable easy DIN rail integration.
Incorporates coil suppression and supply status indication for operational safety and monitoring.
Electrical life expectancy rated at 100,000 cycles for demanding industrial environments.

Product Description

Finder 4C.01.8.024.0060SPA is a high-quality Interface Relay designed for precise control and automation in industrial and commercial electrical systems. This relay features a DIN rail mount and operates at a coil voltage of 24V AC with a coil current of 45mA, making it compatible with a wide range of control panel configurations.

The relay is equipped with a SPDT (Single Pole Double Throw) contact configuration capable of switching currents up to 16A and AC voltages up to 250V, supported by robust silver alloy contacts that provide excellent conductivity and resistance to wear. Its compact size of 82.9mm height, 15.8mm length, and 64.6mm width ensures seamless integration in constrained spaces.

Operating over a temperature range from -40°C to +70°C, it is engineered for reliability in diverse and harsh industrial environments. The screw terminal type provides secure and easy wiring, while the coil suppression module and supply status indication feature enhance safety and functional monitoring.

This interface relay has an electrical life rated at 100,000 cycles, suitable for continuous operation in applications such as automation control systems, escalators, industrial hoists and cranes, lighting systems for tunnels and roads, carousel warehouse management, and electrical distribution panels.

Durable silver alloy contact material for long relay life. Quick switching time enhances operational efficiency. Wide operating temperature range supports diverse applications. DIN rail mounting enables easy installation in control panels.

High switching current rating for broad application suitability. Coil suppression module protects the relay and circuit. Supply status indication aids maintenance and monitoring.

Designed and manufactured in Italy, the Finder 4C series represents a reliable solution for precision switching needs in industrial automation and electrical control systems. Explore more Interface Relays and electrical components in the Electronics & Electricals category at EnvMart.
