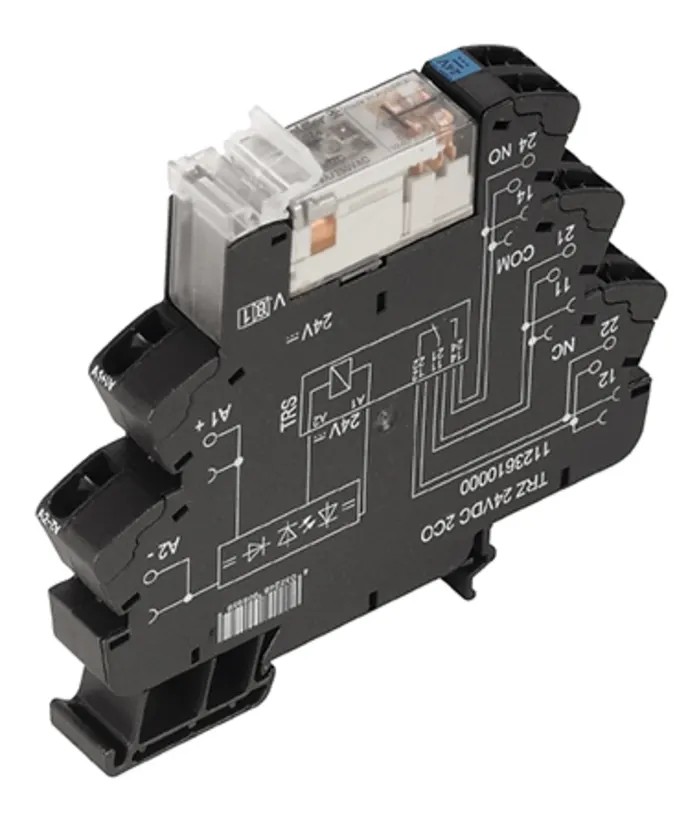

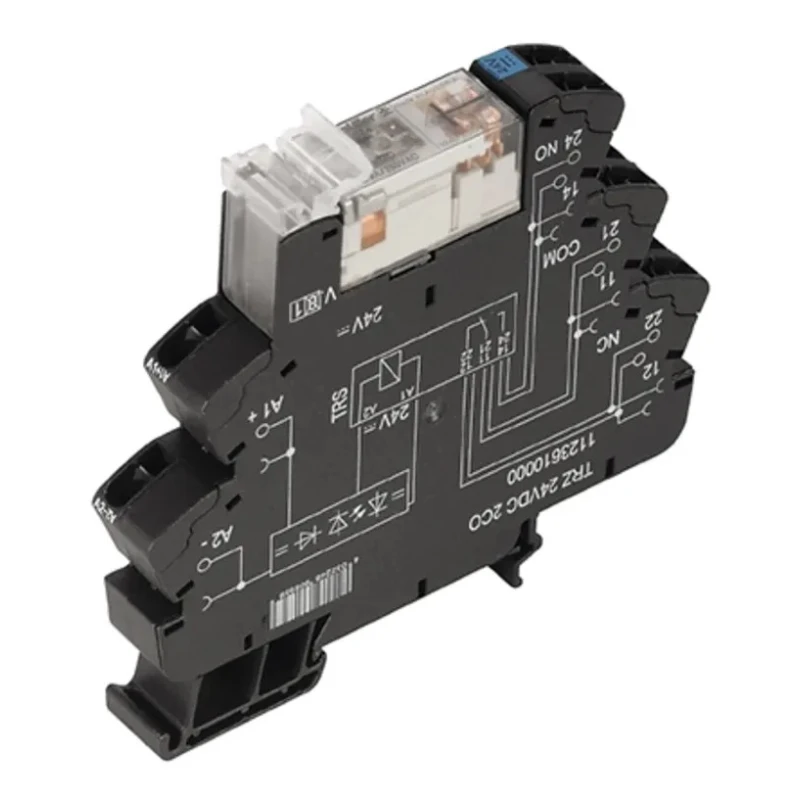

Weidmüller Electromechanical Interface Relay TRZ Series, DIN Rail Mount, 24V Coil, DPDT, 8A Switching Current 1123620000
Specifications
| Country of Origin | China |
|---|---|
| Brand | Weidmüller |
| Height | 88mm |
| Length | 90mm |
| Width | 12.8mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | TRZ |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Spring Clamp |
| Coil Voltage | 24V |
| Coil Current | 14, 16mA |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Optionally with multiple-voltage input | 24...230 V UC |
Key Features
- This relay supports a switching current of 8A and uses silver alloy contact material.
- It features spring clamp terminals for secure wiring.
- Operates within temperatures from -40°C to 60°C, suitable for harsh industrial environments.
- Compact dimensions allow for efficient DIN Rail mounting in control panels.
- Coil voltage is 24V with coil current ranging from 14 to 16 mA.
- The relay meets EN 55011, EN 50178, EN 61000-6-4, EN 61000-6-2, and EN 61000-6-1 standards.
- Manufactured in China and designed for industrial automation applications.
Product Description
Weidmüller 1123620000 Electromechanical Interface Relay from the TRZ Series offers superior performance with a 24V coil and double-pole double-throw (DPDT) contact configuration. Designed for efficient DIN Rail mounting, this relay features a compact size of 90mm length, 88mm height, and 12.8mm width, making it suitable for space-constrained industrial control panels.
The relay supports a switching current up to 8A with silver alloy contacts that provide excellent conductivity and durability. It is equipped with spring clamp terminals ensuring reliable and fast wiring, which benefits maintenance and installation.
The coil current ranges between 14mA and 16mA, optimized for low power consumption in control circuits. This relay is rated for operation within -40°C to 60°C, allowing it to perform consistently in harsh industrial environments. It handles switching voltages up to 250V AC/DC, making it versatile for various electrical control needs.
Conforming to EN 55011, EN 50178, EN 61000-6-4, EN 61000-6-2, and EN 61000-6-1 standards, this relay ensures electromagnetic compatibility, safety, and reliability required for industrial automation, manufacturing, HVAC, and electrical distribution systems.
The TRZ Series offers additional options such as multiple-voltage input (24 to 230 V UC) and protective circuits, including free-wheel diodes and RC elements. The illuminated ejection lever enhances user operability and serviceability. This relay is an ideal choice for automation, signal conditioning, and relay control in demanding industrial applications.
This relay supports a switching current of 8A and uses silver alloy contact material. Features spring clamp terminals for secure wiring. Operates from -40°C to 60°C, suitable for harsh environments. Compact size suitable for DIN Rail mounting.
Coil voltage rating is 24V with coil current 14 to 16 mA. Complies with multiple EN standards for electromagnetic compatibility. Manufactured in China, built for industrial automation use.
Browse the Electronics & Electricals > Relays & Contactors > Interface Relays category on EnvMart for similar industrial automation products and high-quality Interface Relays from Weidmüller.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a maximum switching current of 8A.
This model has a coil voltage rating of 24V.
The relay measures 90mm in length, 88mm in height, and 12.8mm in width.
It operates within a temperature range of -40°C to 60°C, making it suitable for harsh environments.
It features spring clamp terminals for secure wiring.
The relay has a double-pole double-throw (DPDT) contact configuration.
The contacts are made of silver alloy, providing excellent conductivity.
This relay can handle switching voltages up to 250V AC and 250V DC.
The coil current ranges from 14mA to 16mA.
It complies with EN 55011, EN 50178, EN 61000-6-4, EN 61000-6-2, and EN 61000-6-1 standards.
This relay is designed for DIN Rail mounting, making it suitable for control panels.
Yes, this relay is optionally available with multiple-voltage input ranging from 24 to 230 V UC.
