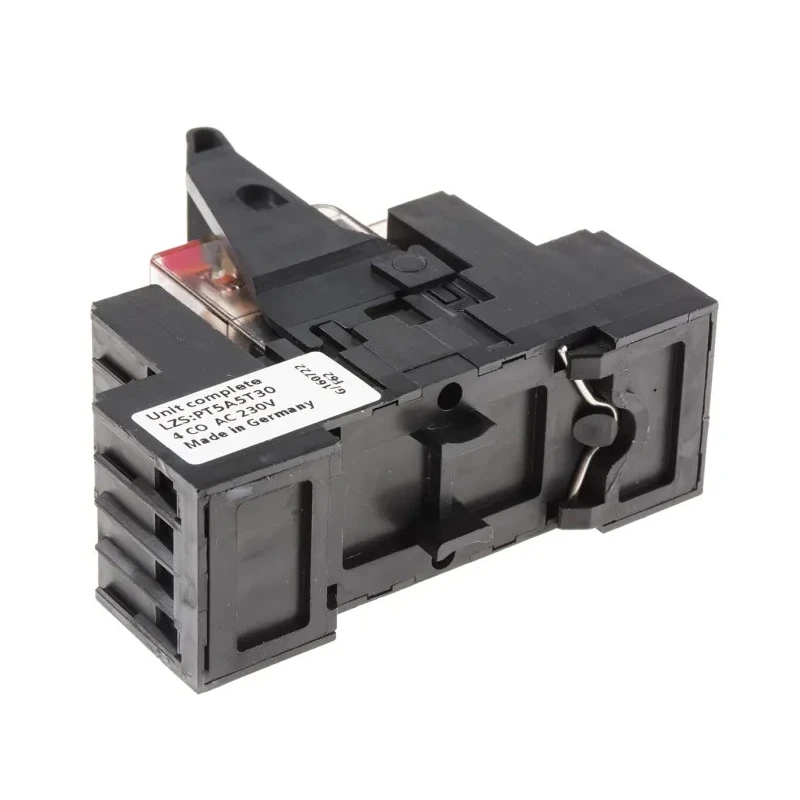

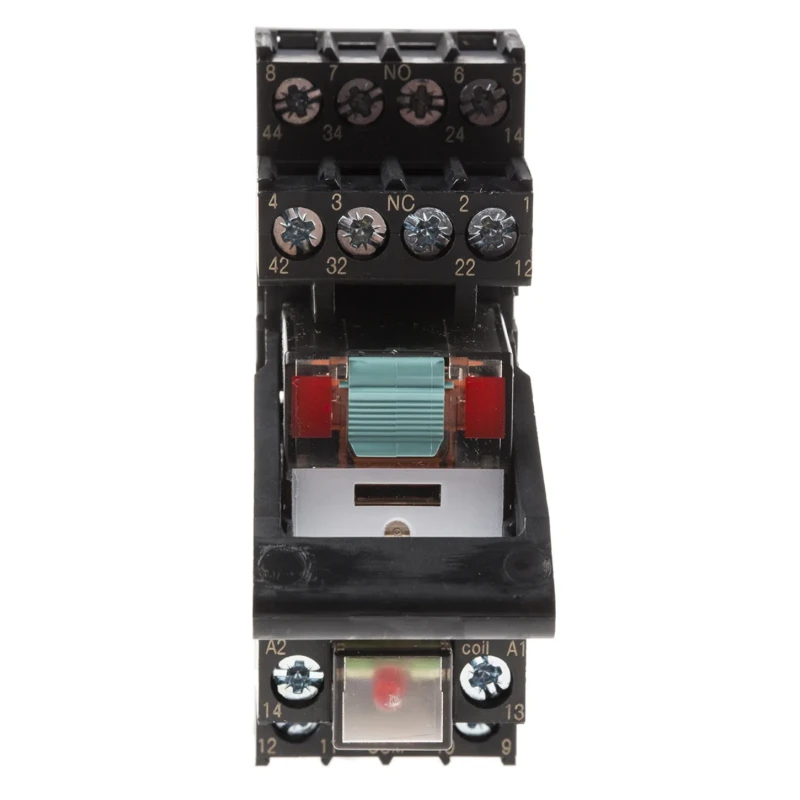

Siemens Coupling Relay Plug-in 230V AC Coil 4PDT LZS:PT5A5T30
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Height | 72mm |
| Length | 28mm |
| Model | LZS:PT5A5T30 |
| Width | 28mm |
| Mount Type | Plug-in |
| Series | LZS |
| Contact Configuration | 4PDT |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | GOST |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 230V ac |
Key Features
- Features a plug-in mount type for easy installation.
- Equipped with screw terminal type ensuring secure electrical connections.
- Supports switching current up to 6A and switching voltages of 24V DC and 230V AC.
- Complies with GOST standards and is manufactured in Germany.
- Does not include a latching mechanism in the PT relay design.
- Includes high quality hard gold-plated contacts for optimum electronic control interaction.
- Tested to AC-15 and DC-13 switching capacities ensuring durability.
- Designed with vibration-proof connection for enhanced reliability.
Product Description
Siemens LZS:PT5A5T30 is a high-quality coupling relay designed for electromechanical interface applications requiring reliable switching and control. This plug-in relay operates with a 230V AC coil and features a 4PDT (quadruple pole double throw) contact configuration, making it suitable for complex control circuits in industrial automation and electrical systems.
The relay’s construction includes a plug-in mount type that simplifies mounting and replacement. Screw terminals are implemented to provide secure and vibration-resistant electrical connections, supported by hard gold-plated contacts that ensure optimum performance in electronic control environments.
Performance-wise, the relay manages a maximum switching current of 6 amperes, compatible with DC voltages up to 24V and AC voltages up to 230V. The dimensions of 28mm length, 72mm height, and 28mm width make this relay compact enough for various industrial control panels and modules.
The LZS series relay series has been tested to AC-15 and DC-13 switching capacities, confirming its suitability for typical industrial control tasks. The design specifically excludes a latching mechanism in this PT variant, focusing instead on direct switching reliability.
Manufactured in Germany and compliant with GOST standards, the Siemens LZS:PT5A5T30 combines durability with precision engineering. Suitable for use in automation, industrial manufacturing, HVAC systems, and electromechanical control systems, this coupling relay supports effective and safe operations.
Features a plug-in mount type for easy installation. Equipped with screw terminal type ensuring secure electrical connections. Supports switching current up to 6A and switching voltages of 24V DC and 230V AC. Constructed with robust dimensions: 28mm length, 72mm height, and 28mm width.
Complies with GOST standards and is manufactured in Germany. Does not include a latching mechanism in the PT relay design. Includes high quality hard gold-plated contacts for optimum electronic control interaction. Tested to AC-15 and DC-13 switching capacities ensuring durability.
Designed with vibration-proof connection for enhanced reliability. Explore the Siemens LZS series for a range of electromechanical Interface Relays suitable for industrial and automation requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum switching current of 6A.
The relay has dimensions of 28mm in length, 72mm in height, and 28mm in width.
It can switch AC voltages up to 230V and DC voltages up to 24V.
It is equipped with screw terminals for secure electrical connections.
The relay operates with a coil voltage of 230V AC.
Yes, it complies with GOST standards.
It features a 4PDT (quadruple pole double throw) contact configuration.
This model is manufactured in Germany.
No, this model does not include a latching mechanism in its design.
It features a plug-in mount type for easy installation.
It is suitable for use in automation, industrial manufacturing, HVAC systems, and electromechanical control systems.
The relay has been tested to AC-15 and DC-13 switching capacities, confirming its suitability for industrial control tasks.
