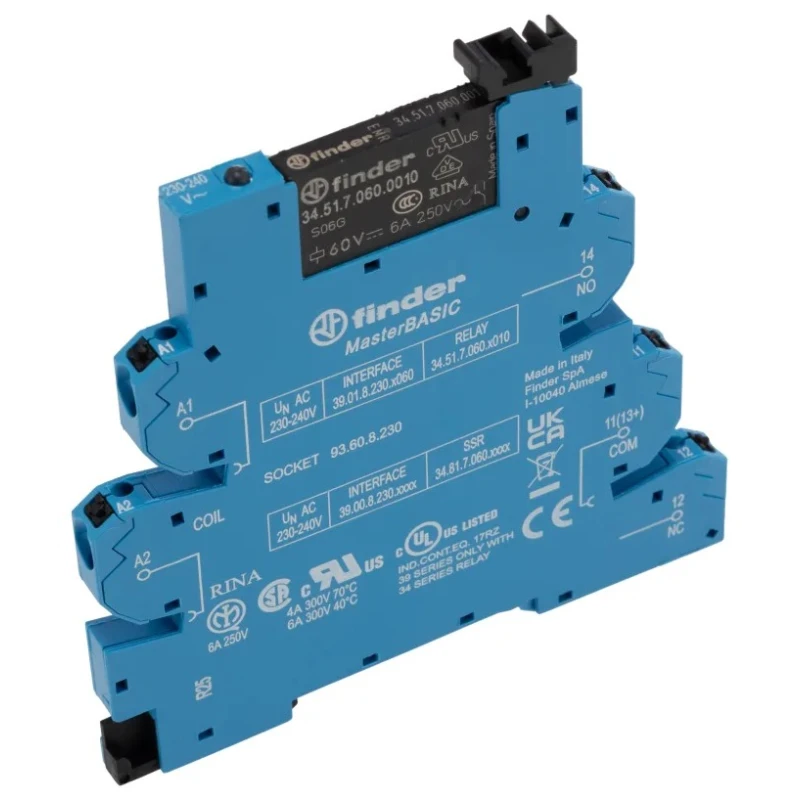

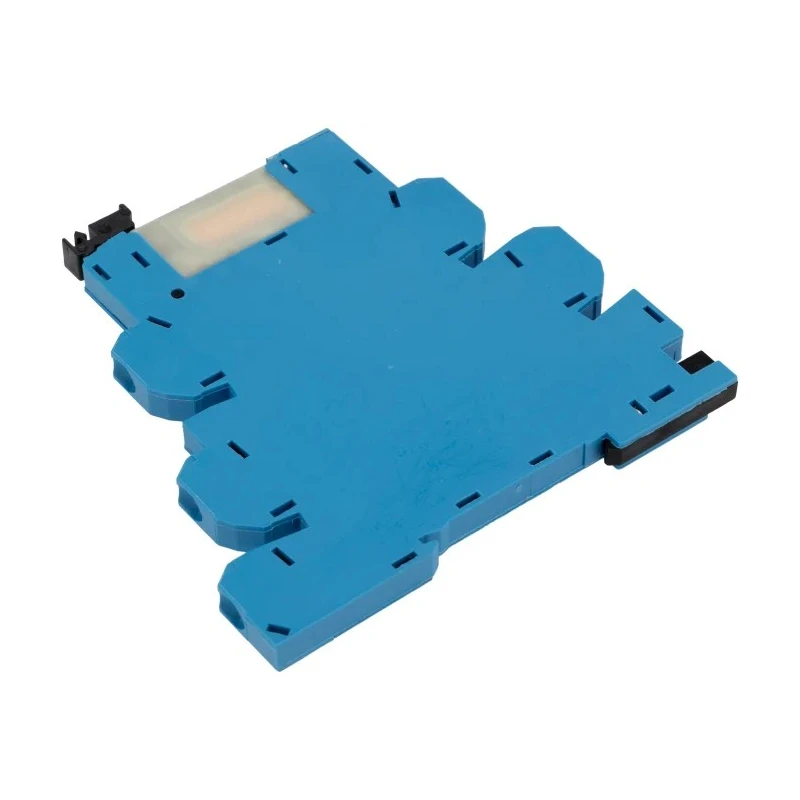

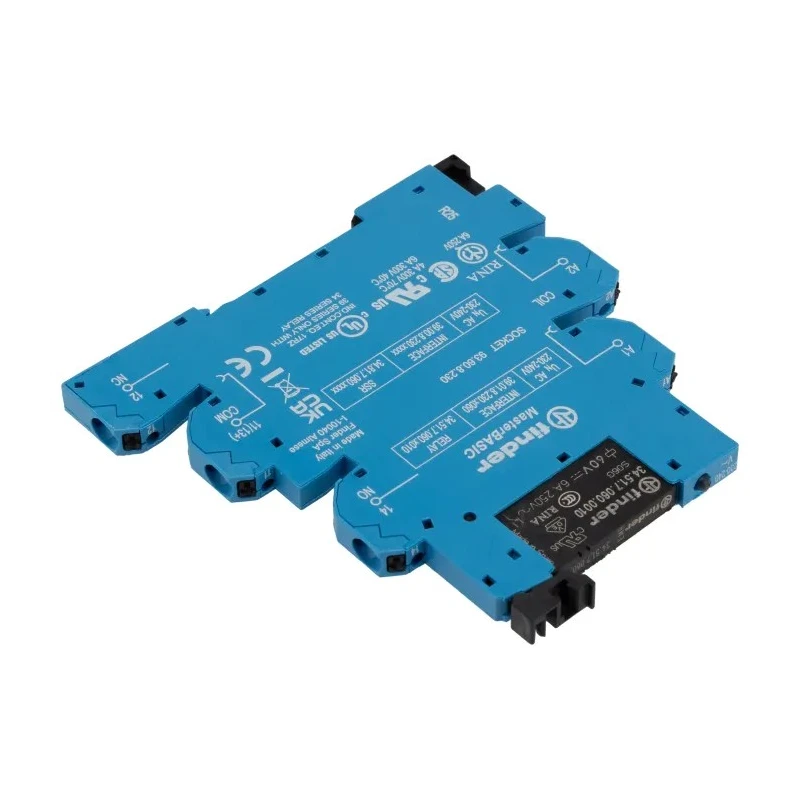

Finder 39 Series Electromechanical Interface Relay SPDT, DIN Rail, 230V AC Coil, 6A Load Current, 4.3mA 39.01.8.230.0060
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 87mm |
| Length | 6.2mm |
| Width | 90.7mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | 39 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Push-in |
| Standards/Approvals | CE, EAC |
| Coil Voltage | 230V ac |
| Coil Current | 4.3mA |
| Switching AC Voltage | 250V ac |
Key Features
- SPDT contact configuration allows versatile switching options.
- Operating coil voltage of 230V AC with low coil current of 4.3mA.
- Compact dimensions of 6.2 x 90.7 x 87 mm fit standard DIN rail systems.
- Push-in terminal connections enable secure and fast wiring.
- Supports switching AC voltage up to 250V with a maximum load current of 6A.
- Wide operating temperature range from -40°C to 70°C ensures reliability in harsh environments.
- Contact material made of durable silver alloy for enhanced conductivity.
- Mechanical life rated at 10 million cycles and electrical life of 60,000 cycles at rated load.
Product Description
Finder 39.01.8.230.0060 is an electromechanical interface relay designed for professional automation applications. Featuring a single-pole double-throw (SPDT) contact configuration, this relay operates with a coil voltage of 230V AC and a load current rating of 6A, making it suitable for a wide range of control and switching applications. Its compact form factor of 6.2 mm length, 90.7 mm width, and 87 mm height allows for easy integration on DIN rail mounting systems within electrical panels.
The relay’s coil current is a mere 4.3mA, ensuring energy-efficient operation. Push-in terminal connections provide quick, secure wiring and reduce installation time. Its robust construction includes silver alloy contact material, which enhances electrical conductivity and durability over extended use. The relay accommodates switching AC voltages up to 250V AC and operates reliably between temperatures of -40°C and +70°C, supporting demanding industrial and commercial environments.
This Finder relay is designed for long service life, rated for mechanical endurance of 10 million cycles and electrical endurance of 60,000 cycles at the rated AC1 load. The IP20 protection rating offers safety by preventing access to live parts, making it suitable for safe and reliable installation.
Typical applications include control panels for electrical distribution, automation processes in bottling plants, traffic light control systems ensuring continuous operation, and packaging machinery requiring precise switching control. Manufactured in Italy, this product complies with CE and EAC standards, assuring quality and regulatory adherence.
SPDT contact configuration allows versatile switching options. Operating coil voltage of 230V AC with 4.3mA coil current. Compact size optimized for DIN rail mounting. Push-in terminals for secure and fast installation. Rated for 6A switching current and 250V AC switching voltage.
Wide temperature range from -40°C to 70°C enhances reliability. Silver alloy contact material ensures high conductivity and durability. Long mechanical and electrical life for dependable performance. IP20 protection reduces risk of accidental contact.
Ideal for use in industrial automation, packaging, traffic, and bottling systems. Explore our extensive selection of electromechanical Interface Relays at EnvMart for high-quality components suited to diverse industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this electromechanical relay is 230V AC.
This model can handle a maximum load current of 6A.
The dimensions of the relay are 6.2 mm in length, 90.7 mm in width, and 87 mm in height.
This relay features a single-pole double-throw (SPDT) contact configuration.
This relay operates within a temperature range of -40°C to +70°C.
It uses push-in terminals for secure and fast wiring.
The relay can switch AC voltages up to 250V.
The contact material is made of silver alloy, which enhances conductivity.
The mechanical life of this relay is rated at 10 million cycles.
This product complies with CE and EAC standards.
This relay is designed for DIN rail mounting.
This product is manufactured in Italy.
