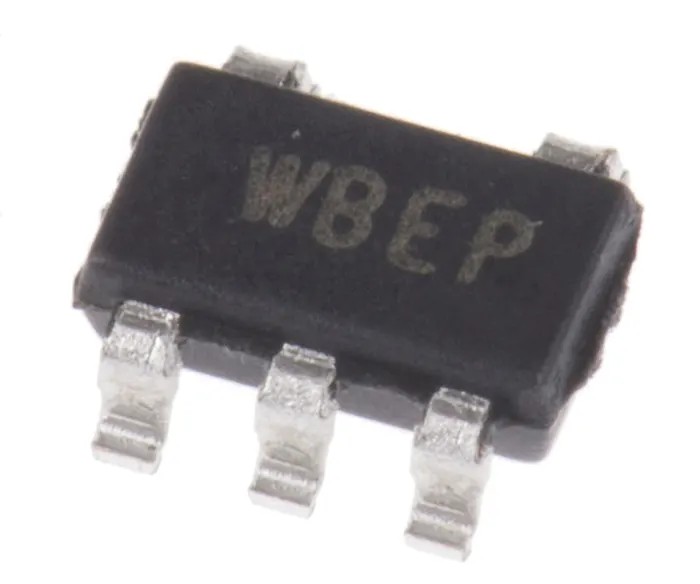

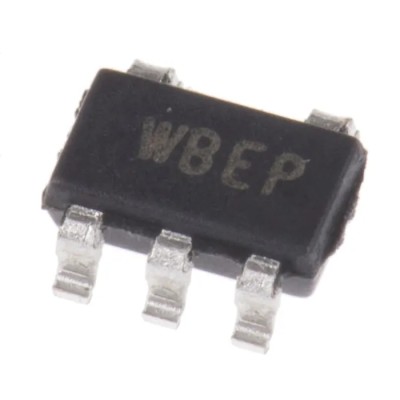

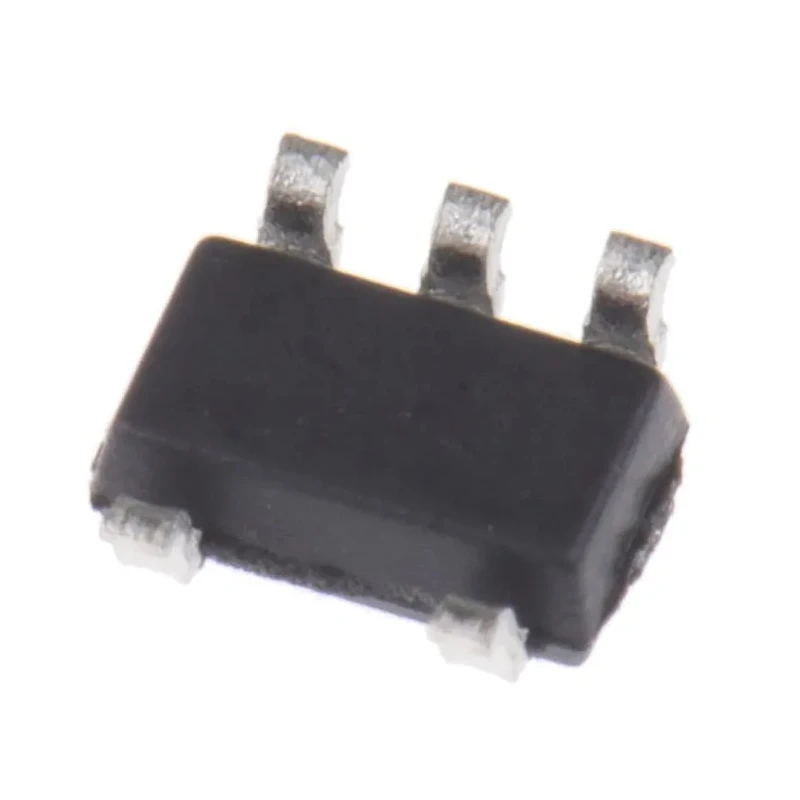

Microchip General Purpose Comparator Push Pull Output 3 V to 5.5 V 20 ns Response Time 5-Pin SOT-23 MCP6561T-E/OT

Free Delivery in India | Lowest Global Shipping Charges

Microchip General Purpose Comparator Push Pull Output 3 V to 5.5 V 20 ns Response Time 5-Pin SOT-23 MCP6561T-E/OT

Name: Microchip General Purpose Comparator Push Pull Output 3 V to 5.5 V 20 ns Response Time 5-Pin SOT-23 MCP6561T-E/OT
Brand: Microchip
SKU: 212140
Price: 0.89 USD
Availability: InStock



Category Comparator Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.3mm
Length	3.1mm
Model	MCP6561T-E/OT
Width	1.8mm
Mount Type	Surface
Output type	Push Pull
Maximum Operating Temperature	125°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Number Of Channels	1
Comparator Type	General Purpose
Pin Count	5
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	3V
Typical Response Time	20ns

Key Features

Single channel comparator designed for surface mount applications.
Utilizes a compact 5-pin SOT-23 package for space-efficient mounting.
Offers low typical response time of 20 nanoseconds for fast signal processing.
Operates within a voltage range of 3 V minimum up to 5.5 V maximum supply voltage.
Meets Automotive Standard AEC-Q100 for reliable automotive applications.
Wide operating temperature range from -40°C to 125°C supports harsh environments.
Features push-pull output type for improved output drive capability.
Ideal for industrial, automotive, consumer electronics, and instrumentation applications.

Product Description

Microchip MCP6561T-E/OT is a new general purpose comparator featuring a push-pull output, designed to operate efficiently within a supply voltage range of 3 V to 5.5 V and a typical response time of 20 nanoseconds. This single-channel comparator is packaged in a 5-pin SOT-23 surface mount device, making it highly suitable for compact electronic designs.

The device complies with the AEC-Q100 automotive standard, ensuring reliability and performance in automotive and industrial applications. It operates reliably over a wide temperature range of -40°C to 125°C, accommodating a variety of demanding environments.

With its push-pull output configuration, the MCP6561T-E/OT offers strong output drive capabilities, enhancing signal integrity in noisy environments. The component’s compact dimensions (3.1 mm length, 1.8 mm width, and 1.3 mm height) facilitate efficient PCB layout and integration into space-constrained designs.

This comparator is ideal for use in industrial machinery, automotive systems, consumer electronics, and instrumentation where high-speed, reliable signal comparison is essential. Its surface mount package supports automated assembly and improved manufacturing efficiency.

Single channel comparator designed for surface mount applications. Utilizes a compact 5-pin SOT-23 package for space-efficient mounting. Offers low typical response time of 20 nanoseconds for fast signal processing. Operates within a voltage range of 3 V minimum up to 5.5 V maximum supply voltage.

Meets Automotive Standard AEC-Q100 for reliable automotive applications. Wide operating temperature range from -40°C to 125°C supports harsh environments. Features push-pull output type for improved output drive capability.

Compact dimensions: length 3.1 mm, width 1.8 mm, height 1.3 mm enable space-saving PCB layouts. Ideal for industrial, automotive, consumer electronics, and instrumentation applications. Explore a wide selection of semiconductor Comparators and electronic components across EnvMart's extensive catalog to suit your design requirements.
