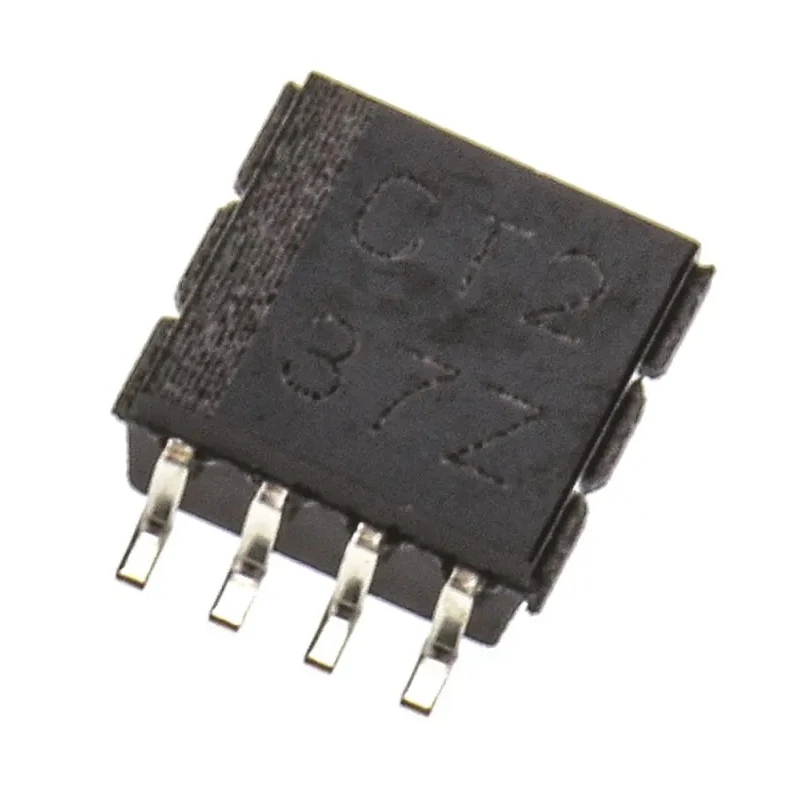

Texas Instruments Voltage Level Shifter Bus Transceiver, Bi-Directional, 8-Pin SSOP Package, 1.65 to 5.5 V SN74LVC2T45DCTT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.29mm |
| Length | 2.95mm |
| Model | SN74LVC2T45DCTT |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | 3 State |
| Series | SN74LVC2T |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 4.4ns |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | 32mA |
| Translation | Voltage Level |
Key Features
- Operates at supply voltages from 1.65 V to 5.5 V.
- Offers a maximum propagation delay time of 4.4 nanoseconds at CL.
- Supports bi-directional data flow with 3-state outputs.
- Provides maximum low level output current of 32 mA and maximum high level output current of -32 mA.
- Compatible with input LVTTL/TTL levels and outputs LVCMOS levels.
- Features surface mount SSOP package type with 8 pins.
- Operates reliably from -40°C to 85°C temperature range.
- Compact dimensions with height of 1.29 mm and length of 2.95 mm.
Product Description
Texas Instruments SN74LVC2T45DCTT is a Voltage Level Shifter bus transceiver designed for bi-directional voltage translation across a wide operating voltage range of 1.65 V to 5.5 V.
This device integrates a single gate package in an 8-pin SSOP surface mount form factor, providing compact and efficient voltage level shifting compatible with modern low-voltage CMOS logic circuits.
The transceiver supports input compatibility with LVTTL and TTL logic levels and delivers outputs compatible with LVCMOS standards. It features 3-state outputs that enable bus interfacing and high signal integrity in complex electronic assemblies.
The SN74LVC2T45DCTT delivers a maximum propagation delay of 4.4 ns under capacitive loads, ensuring fast data transfer in timing-sensitive applications. It can source or sink up to 32 mA of output current at low and high logic levels, respectively.
Operating temperature ranges from -40°C to 85°C, suitable for demanding industrial environments. Its compact dimensions (1.29 mm height, 2.95 mm length) facilitate dense PCB layouts in consumer electronics, laboratory instruments, and communication devices.
Operates at supply voltages from 1.65 V to 5.5 V. Maximum propagation delay time of 4.4 ns at CL. Bi-directional functionality with 3-state output control. Compatible with LVTTL/TTL inputs and LVCMOS outputs. Compact 8-pin SSOP surface mount package.
Temperature range from -40°C to 85°C for industrial use. Low-voltage CMOS logic family LVC operation. Supports bus transceiver logic functions. Voltage translation for seamless interfacing across voltage domains. Reliable performance in electronic, laboratory, and industrial applications.
This product is ideal for integration into industrial electronics, laboratory equipment, and other manufacturing electronics requiring reliable voltage level shifting. Explore more semiconductor components from Texas Instruments and similar products on EnvMart.
