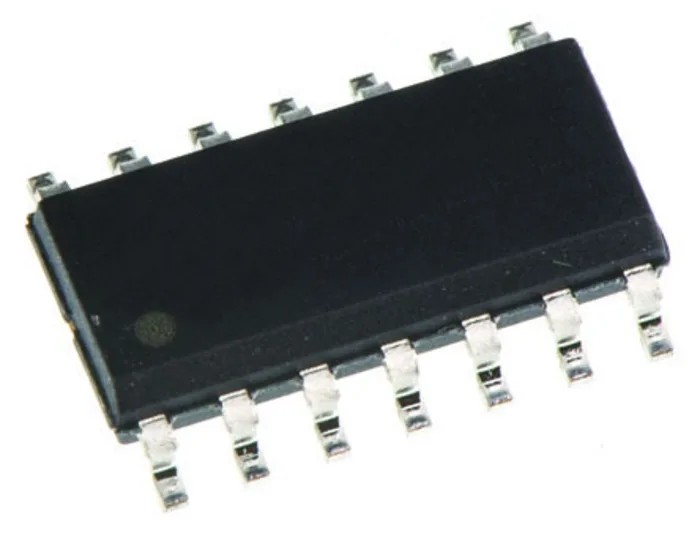

Texas Instruments 4 2-Input NAND Logic Gate 14-Pin SOIC CD4011BM96

Texas Instruments CD4011BM96 is a reliable 4 2-Input NAND Logic Gate supplied in a 14-pin SOIC surface mount package from the 4000 CMOS Logic Family. Operating within a voltage range of 3 to 18 V, it is designed for efficient switching in digital electronic circuits.

The device comprises four independent NAND gates, each with two inputs, ideal for executing logical NAND operations in embedded and industrial electronics.

Its maximum propagation delay time is 90 ns, supporting swift signal processing suitable for high-speed logic circuits. With a CMOS input type, the device offers low power consumption and high noise immunity.

Designed to operate over a wide temperature range from -55°C to 125°C, it performs reliably under varying environmental conditions typically found in industrial applications. The output type buffer and the maximum output current ratings (-4.2 mA high level, 4.2 mA low level) allow it to drive subsequent circuit stages effectively.

The SOIC package with 14 pins supports surface mount assembly, saving space on PCB layouts and improving manufacturing efficiency. This Logic Gate IC finds applications in semiconductor devices, industrial control systems, and general-purpose digital logic implementations.

The component includes four 2-input NAND gates in one package. The wide operating voltage range supports a variety of electronic designs. Its propagation delay time enables fast digital operations. Temperature range suitability ensures robust performance in industrial environments.

The compact SOIC package enhances PCB design flexibility. EnvMart customers can explore a comprehensive range of semiconductor logic components for their industrial and electronic project requirements.
