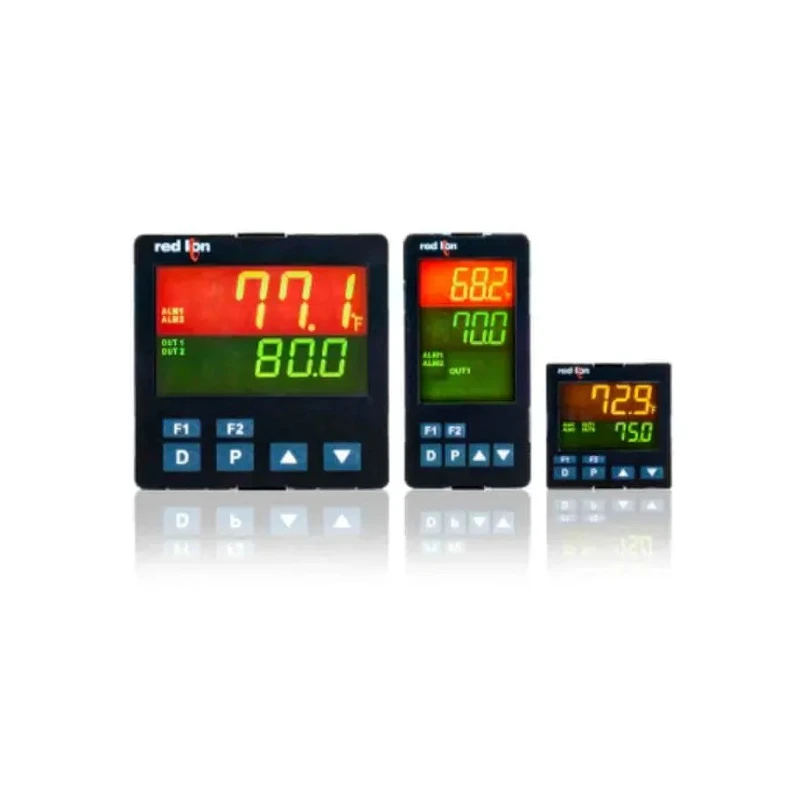

Red Lion PXU Panel Mount PID Temperature Controller 2 Input 2 Output Relay 240V AC PID Controller PXU41A20

Red Lion PXU41A20 Panel Mount PID Temperature Controller is a highly reliable device designed for precise temperature measurement and control in various industrial and process automation applications. This controller features advanced PID control logic with on-demand auto-tuning, allowing seamless adaptation to diverse system dynamics for optimal regulation.

The PXU41A20 model supports two programmable user inputs that accept a wide range of signals, including thermocouples (TC), resistance temperature detectors (RTD), and analogue inputs like 0-10 V, 0/4-20 mA, or 0-50 mV, making it versatile for multiple sensor types. It also provides two output relays for controlling heating or cooling elements with dual relay alarms for dependable alert signaling.

Communication capabilities include RS485 digital protocol, enabling integration into sophisticated control networks. Its sturdy IP65 rated panel mount enclosure ensures protection against dust and water, suitable for harsh industrial environments. The device operates efficiently within a temperature range of 0°C to 50°C and is powered by a flexible 100 to 240 VAC supply, supporting maximum supply voltage up to 250 V.

The compact form factor of 48 mm width and length, complemented by an 80 mm panel depth, facilitates easy and space-saving installation in control panels. The LCD display offers clear, user-friendly readouts, and screw terminal connections guarantee secure wiring. This temperature controller complies with stringent international standards such as CISPR 11 Class A, RoHS, EN 61010-1, EN 61326-1, and UL certifications, ensuring safety and performance consistency.

Features PID control with on-demand auto-tuning for precise temperature management. Accepts thermocouple, RTD, and multiple analogue input signals. Dual output relay alarms provide reliable system alerts. RS485 communication supports integration with industrial networks.

IP65 rated panel mount design protects against environmental contaminants. Operates in ambient temperatures from 0°C to 50°C. Compact 1/16 DIN size with 48x48 mm dimensions and 80 mm panel depth. Equipped with clear LCD display and secure screw terminals.

Compliant with global standards including RoHS, UL, EN 61010-1, and EN 61326-1.

This PID temperature controller is ideal for applications in industrial manufacturing, HVAC systems, process control, laboratory instrumentation, and automation systems requiring precise temperature regulation. It offers flexibility, reliability, and connectivity for enhanced operational efficiency.
