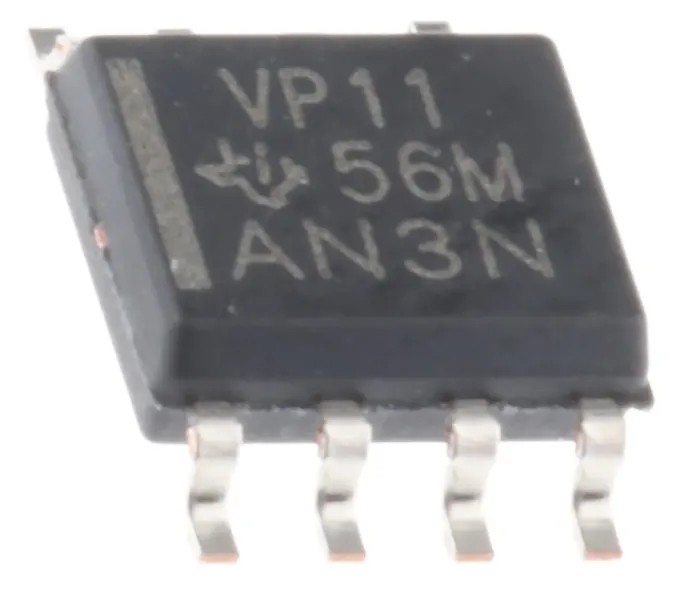

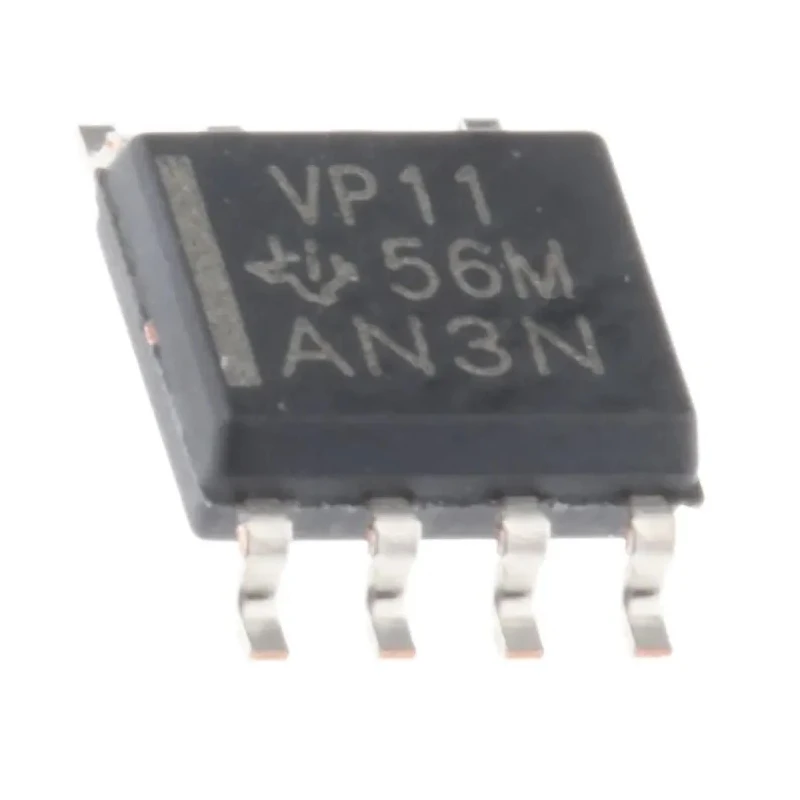

Texas Instruments SN65HVD11D Differential Non-Inverting Line Transceiver IC, 1 Channel, 4.5-5.5 V, 8-Pin SOIC SN65HVD11D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 5mm |
| Model | SN65HVD11D |
| Width | 3.98mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | SN65HVD11 |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | SN74 |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -60mA |
| Maximum Propagation Delay Time @ CL | 400ns |
| Supply Current | 15.5mA |
| Maximum Low Level Output Current | 60mA |
Key Features
- Operates with a minimum supply voltage of 4.5 volts and maximum of 5.5 volts.
- Single channel line transceiver IC with non-inverting polarity.
- Surface mount 8-pin SOIC package for easy PCB integration.
- Maximum propagation delay time of 400 nanoseconds at load.
- Operating temperature ranges from -40°C to 85°C for robust industrial usage.
- Maximum high level output current of -60mA and low level output current of 60mA.
- Supply current consumption of 15.5mA ensuring low power usage.
- Suitable for use in industrial, automation, and communication applications requiring RS-485 protocol.
Product Description
Texas Instruments SN65HVD11D differential non-inverting Line Transceiver IC is designed to provide high-speed communication with a single channel configuration, optimized for interfacing in RS-485 networks. The device operates over a supply voltage ranging from 4.5 to 5.5 volts, making it suitable for various power environments.
Featuring differential input and output signals with non-inverting polarity, it delivers robust performance in harsh industrial conditions, including an extended operating temperature range from -40°C to 85°C. The SOIC 8-pin surface mount package enables compact PCB designs and easy assembly in automated manufacturing processes.
The maximum propagation delay time at defined load is 400ns, enabling efficient data transmission rates up to 10 Mbps. Its output current capability includes a maximum high level output of -60mA and low level of 60mA, while consumption remains low with a supply current of 15.5mA ensuring power-efficient operation.
Physical dimensions are precise: length 5mm, width 3.98mm, and height 1.75mm, allowing for streamlined design integration. The SN65HVD11D series is a reliable choice for industrial automation, data communication, and instrumentation applications requiring RS-485 line driver and receiver functionality.
Operates at supply voltage between 4.5V and 5.5V. Provides differential, non-inverting single channel line transceiver functionality. Compact 8-pin SOIC surface mount package. Supports high data rates with a maximum propagation delay of 400ns.
Industrial grade operation with temperature range from -40°C to 85°C. Robust output current with ±60mA capability. Low supply current consumption of 15.5mA. Accurate physical dimensions for PCB design.
This device is widely used in industrial machines, instrumentation, and communication systems that require dependable RS-485 data transmission standards. Its design ensures efficient power usage, compact mounting, and reliable electrical performance across operating conditions.
Explore more semiconductor and interface ICs on EnvMart to enhance your industrial or lab automation projects with trusted components from Texas Instruments and other renowned manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage ranging from 4.5V to 5.5V.
The maximum propagation delay time at defined load is 400 nanoseconds.
It operates within an extended temperature range from -40°C to 85°C, suitable for industrial applications.
This unit features a single channel configuration for differential communication.
The dimensions are 5mm in length, 3.98mm in width, and 1.75mm in height.
The supply current consumption is 15.5mA, ensuring low power usage.
It comes in an 8-pin SOIC surface mount package, facilitating easy PCB integration.
It has a maximum high level output current of -60mA and a low level output current of 60mA.
It is suitable for industrial automation, data communication, and instrumentation applications requiring RS-485 protocol.
This model accepts differential input signals, providing non-inverting output.
It belongs to the SN74 logic family, designed for line transceiver functionality.
The non-inverting polarity allows for straightforward integration in systems requiring differential signaling without phase inversion.
