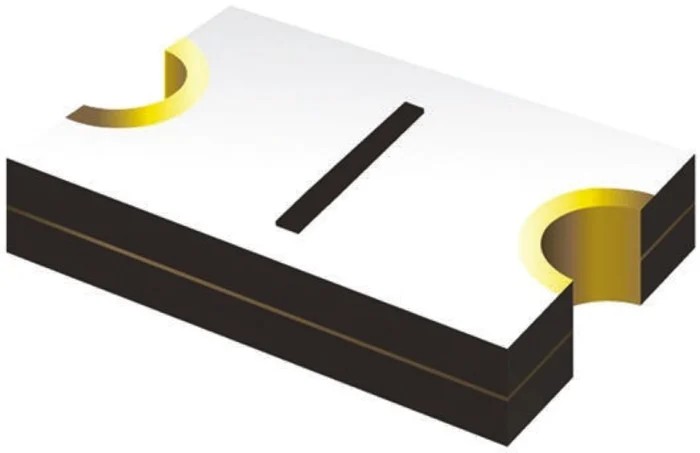

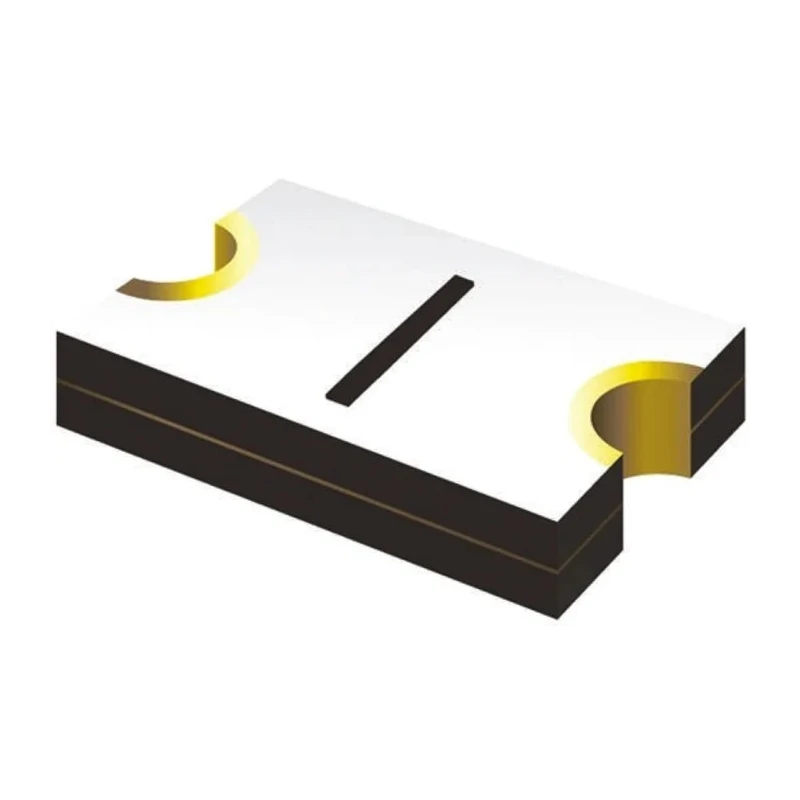

Bourns 0.2 A Resettable Fuse 9V Compact SMT 0603 Series MF-FSMF020X-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 9V |
| Brand | Bourns |
| Height | 0.65mm |
| Length | 1.85mm |
| Model | MF-FSMF020X-2 |
| Width | 1.05mm |
| Current Rating | 40A |
| Series | MF-FSMF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 0603 |
| Trip Current | 0.5A |
| Power Dissipation | 0.5W |
| Terminal Material | Gold Plated Nickel |
| Standards/Approvals | RoHS |
| Time to Trip | 0.6s |
| Hold Current | 0.2A |
| Minimum Resistance | 0.55Ω |
| Maximum Resistance | 3.5Ω |
Key Features
- Provides reliable overcurrent protection with 0.2 A hold current and 0.5 A trip current.
- Compact 0603 SMT package saves board space and enables easy integration.
- Gold plated nickel terminals ensure excellent electrical connectivity and durability.
- Automatic resettable design allows thousands of fault cycles without replacement.
- Wide operating temperature range from -40°C to 85°C suits diverse environmental conditions.
- Suitable for USB port protection, PC motherboards, mobile devices, and PDAs.
- Low resistance range from 0.55Ω minimum to 3.5Ω maximum allowing fast fault response.
- Power dissipation rating of 0.5 W retains safe operation under overload.
Product Description
Bourns MF-FSMF020X-2 is a 0.2 A resettable fuse designed for circuit protection in electronic and electrical equipment. It operates at 9 V and offers automatic reset capability, ideal for safeguarding against excessive current conditions in compact surface mount technology (SMT) packages.
Featuring a compact 0603 package size and gold plated nickel terminals, this fuse assembly provides excellent electrical connection and minimizes board space requirements. Its fast trip time of 0.6 seconds allows rapid response to fault conditions, protecting sensitive components on PC motherboards, USB ports, mobile phones, digital cameras, and PDAs.
Operating reliably within a temperature range of -40°C up to 85°C, the fuse ensures consistent performance in varied environments. Its very low resistance of 0.55Ω minimum helps maintain circuit integrity during normal operation while limiting power dissipation to 0.5 W.
The resettable mechanism of the fuse enables it to automatically return to low resistance after fault removal, supporting thousands of operational cycles without manual replacement or maintenance. This makes it suitable for applications including security systems, power supplies, transformers, automotive, medical equipment, instrumentation, and communication devices.
Reliable overcurrent protection with 0.2 A hold current and 0.5 A trip current. Compact 0603 footprint compatible with modern PCB designs. Gold plated nickel terminal material for enhanced conductivity and corrosion resistance.
Automatic resettable function supports thousands of cycles without fuse replacement. Wide temperature range from -40°C to 85°C ensures durability in harsh conditions. Low power dissipation rating of 0.5 W for safe operation.
RoHS compliant ensuring environmental safety standards. Applications include USB ports, PC motherboards, mobile phones, PDAs, digital cameras, and more. Manufactured in China as part of the MF-FSMF series.
This Bourns Resettable Fuse is suited for industrial, commercial, and consumer electronics applications where space efficiency, automatic fault recovery, and reliable circuit protection are essential.
Explore more high-quality circuit protection devices in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 0.2 A.
The trip current for this model is 0.5 A.
It operates within a temperature range of -40°C to 85°C.
The fuse comes in a compact 0603 SMT package size.
The time to trip for this fuse is 0.6 seconds.
The minimum resistance is 0.55Ω and the maximum resistance is 3.5Ω.
The power dissipation rating is 0.5 W.
The terminals are made of gold plated nickel for enhanced conductivity.
Yes, this fuse is RoHS compliant, ensuring it meets environmental safety standards.
This model is suitable for applications including USB ports, PC motherboards, mobile devices, and digital cameras.
The country of origin for this fuse is China.
This resettable fuse belongs to the MF-FSMF series.
