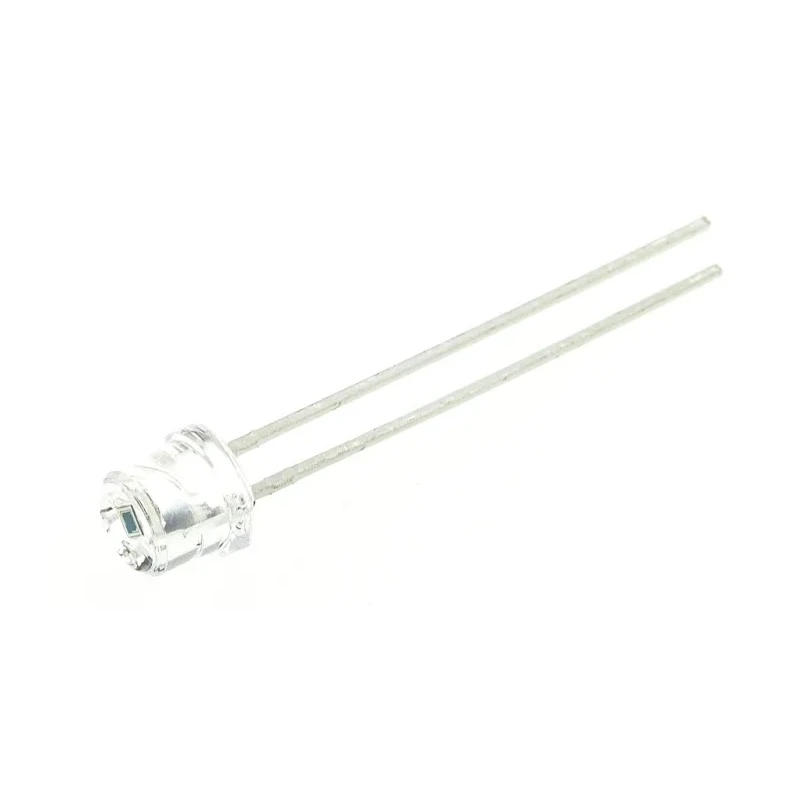

ams OSRAM Infrared and Visible Light Photodiode Through Hole T-1 3/4 Package SFH 203 P
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4.8mm |
| Brand | ams OSRAM |
| Height | 5mm |
| Length | 5.9mm |
| Model | SFH 203 P |
| Wavelength Range | 400 to 1100 nm |
| Packaging | Ammo |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | SFH |
| Short Circuit Current | 71μA |
| Maximum Operating Temperature | 85°C |
| Package Type | T-1 3/4 |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Dark Current | 5nA |
| Open Circuit Voltage | 350mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 0.005μs |
| Wavelength of Peak Sensitivity | 850nm |
| Spectrums Detected | Infrared, Visible Light |
| Breakdown Voltage | 20V |
| Minimum Wavelength Detected | 400nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 75 ° |
| Radiant sensitive area | 1 x 1 mm² |
| IR T-1 PIN Photodiode 150°,SFH203PBrand | OSRAM Opto Semiconductors |
Key Features
- Detects infrared and visible light spectrum from 400 to 1100 nm.
- Peak sensitivity wavelength of 850 nm for reliable photodetection.
- Through hole mounted with a 5 mm diameter clear plastic package.
- Operating temperature range from -40°C to 85°C.
- Fast typical rise and fall time of 0.005 microseconds.
- Radiant sensitive area of 1 x 1 mm² for precise detection.
- Low dark current of 5 nA and short circuit current of 71 µA.
- Forward polarity and 20 V breakdown voltage.
Product Description
ams OSRAM SFH 203 P is an advanced photodiode designed to detect infrared and visible light within a wavelength range of 400 to 1100 nm, peaking at 850 nm. The device is housed in a 5 mm T-1 3/4 through-hole package, featuring a clear plastic enclosure for optimal light transmission and a radiant sensitive area of 1 x 1 mm².
This photodiode offers a 75° angle of half sensitivity, suitable for various industrial electronic applications including high-speed photointerrupters and control or drive circuits. It supports a minimum operating temperature of -40°C and a maximum of 85°C, making it reliable in harsh environmental conditions.
The SFH 203 P photodiode exhibits fast response times with typical rise and fall times of 0.005 microseconds, enabling high-speed signal switching. It has a dark current of 5 nA and a short circuit current of 71 µA, ensuring efficient, low-noise performance. The device operates with forward polarity and has a breakdown voltage rating of 20 V, suitable for diverse electronic circuit integrations.
This product is RoHS compliant, reflecting adherence to environmental safety regulations. The through-hole mounting with 2 pins facilitates easy PCB integration. It is ideal for applications in industrial electronics, control systems, automation, and other areas requiring sensitive photodetection.
Detects infrared and visible light spectrum from 400 to 1100 nm. Peak sensitivity wavelength of 850 nm for reliable photodetection. Through hole mounted with 5 mm diameter clear plastic package. Operating temperature range from -40°C to 85°C.
Fast rise and fall times of 0.005 microseconds. Radiant sensitive area of 1 x 1 mm². Low dark current of 5 nA and short circuit current of 71 µA. Forward polarity and 20 V breakdown voltage. RoHS compliant for environmental safety.
2 pins for through-hole PCB mounting. Explore more in the Photodiode category at EnvMart for integrated optoelectronic components suited for industrial, manufacturing, and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This photodiode detects infrared and visible light within a wavelength range of 400 to 1100 nm, with peak sensitivity at 850 nm.
The SFH 203 P has a diameter of 4.8 mm, a height of 5 mm, and a length of 5.9 mm.
The operating temperature range for this photodiode is from -40°C to 85°C.
This model exhibits typical rise and fall times of 0.005 microseconds, enabling high-speed signal switching.
The dark current for this photodiode is specified at 5 nA, ensuring efficient low-noise performance.
The short circuit current for the SFH 203 P is 71 µA.
It is designed for through-hole mounting with 2 pins, facilitating easy integration into PCBs.
The breakdown voltage rating for this model is 20 V, suitable for various electronic circuit integrations.
The radiant sensitive area of this photodiode is 1 x 1 mm², allowing for precise light detection.
The SFH 203 P is RoHS compliant, indicating adherence to environmental safety regulations.
This photodiode is capable of detecting both infrared and visible light spectrums.
The angle of half sensitivity for the SFH 203 P is 75°, making it suitable for various applications.
